Home > Products > wheel alignment > Anisun V3DII 3D Wheel Alignment Machine

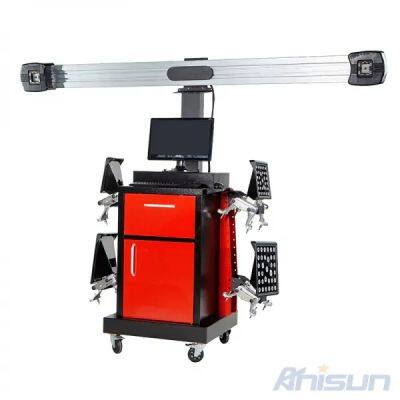

Anisun V3DII 3D Wheel Alignment Machine
- 100 Set / Sets per Month
- Shanghai
- T/T L/C
- 7 days
Product Details
Brand Name: | ANISUN/BRAND | Place of Origin: | China | Model Number: | V3DII 3D |
Warranty: | 3 | Power Supply: | 220-240V | Max. Rim Width: | 24“ |
Max. Wheel Weight: | 65KG | Balancing Speed: | 200MRP |
Product Description
Product Overview
Utilizing patented imaging technology, the V3DII provides accurate, real-time measurements - reducing setup and measurement times while generating serious productivity benefits. Matched with easy-to-use software, the ANS-VD611 wheel aligner will have your technicians getting readings in a matter of minutes.
Features
Versatile, Accurate Hardware
● Digital cameras produce accurate, live alignment readings and diagnostic data.
● Passive front and rear targets improve durability with no electronics to damage.
EZ-Link™* Steering Angle Sensor (SAS) Reset
● EZ-Link™ software alerts the technician of OEM service and maintenance procedures related to Electronic Stability Control and Electric Power Steering systems.
● OEM instructions guide the technician through the process of resetting the steering angle sensors along with other sensors as required. EZ-Link™ includes manual as well as electronic resets.
Universal Wheel Clamps
● Handles wheel diameters ranging 13" to 24" (33cm to 56cm) standard.
● Interchangeable grippers minimize wheel damage.
VODI*™
● Vehicle Orientation Directional Indicator.
● Guides technician through measuring process.
● Reduces the amount of time spent walking back and forth from the vehicle to the aligner console.
Features | |
● SAI and Thrust Angle ● Included Angle ● Toe Out On Turns/Max Turn ● Front and Rear Toe ● Front/Rear/All/Zoom Readings ● Frame Check™ Light Truck Frame Angle ● Initial/Final Color Printouts ● Individual Camber/Caster/Toe ● Front Caster (-28° to +28°) ● Front & Rear Camber (-15° to +15°) ● Help Videos ● A-Arm Adjustments ● Adjust Camber Only ● Elevated Adjustments ● Rear Shim Programs ● Multiple Lift Support (3) ● EZ-Link™* ● EZ-Toe™* ● Live Caster, Camber and Toe - Turnplates ● Live Caster, Camber and Toe - Elevated | ● Equalize Toe Warning ● Adjust Front Before Rear Warning ● Multiple Clamp Support ● 2-Wheel Alignment ● 32 Languages ● Multiple Print Formats ● Custom Vehicle Specifications ● Regional Specifications ● Integrated Help System (PDF) ● Tools, Parts, and Adjustment Instructions ● Advanced Customer Database with Backup/Restore ● Multiple Units of Measure ● Caster and SAI on Turn plates ● SAI Elevated ● North Star Shim Program ● Light Truck Bushing ● Vehicle Specs: 25+ years ● Remote Control (Optional) ● Variable-Height Camera Support Controls
|
Technical Characteristics
Specification | Item | Accuracy | Range | Total Range |
Front Wheel | Camber | ±0.02° | ±8° | ±8° |
Caster Angle | ±0.05° | ±10° | ±10° | |
Kingpin Caster Angle | ±0.02° | ±19° | ±19° | |
Toe | ±0.02° | ±4° | ±8° | |
Rear Wheel | Rear Axle Offset | ±0.02° | ±2° | ±4° |
Maximum steering Angle | ±0.08° | ±25° | ±45° | |
Thrust-angle | ±0.02° | ±2° | ±4° | |
Track Width Difference | ±0.03° | ±2° | ±8° | |
Front Set Back | ±0.02° | ±2° | ±4° | |
Rear Set Back | ±0.02° | ±2° | ±4° | |
Track Width | ±0.64cm(0.25cm) | <265cm(105in) | <265cm(105in) | |
Wheel Base | ±0.64cm(0.25cm) | <533cm(210in) | <533cm(210in) |
STANDARD ACCESSORIES INCLUDE
● Camera beam x 1
● Computer x 1
● Screen x 1
● Printer x 1
● Turnplate x 2
● Brake lock x 1
● Steel wheel lock x 1
● Target plate x 4
● Wedge x 1
● Hanger for clamp x 4
FAQ
Q: Why should I choose Anisun?
A: Twenty year manufacturer, Wheel alignment machine, tyre changer, wheel balancer, car lift and other car maintenance equipment, and all products were made of high-quality parts,all of our product are tested well before delivery,Low prices with high quality revenue producing products.The best customer service.Quick reply within 24 hours and more.
Q: How safe are Anisun products?
A: Our products have passed CE certificate. Warranty time is 12 months, and if there is anything wrong about our products when exceed 12 months, just contact us. We will send the components to you freely. or we will help you online directly.
Q: Should I keep repair and replacement parts in stock?
A: Yes,most all commonly required repair and replacement parts should always keep in stock.
Q: Are Anisun products designed for commercial use?
A: All of our products can be used in commercial applications without any problems.
Q: Do you offer any custom designs?
A: Yes,Anisun provide OEM/ODM services to top range partners.
