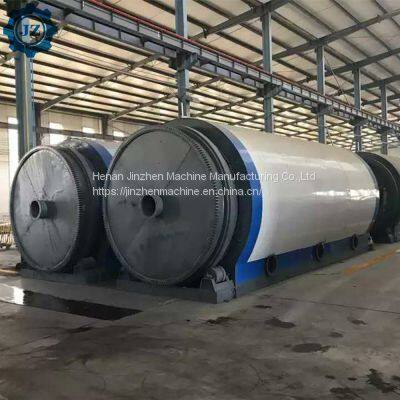

Help Center5ton 10ton High Profitable Waste Tyre Pyrolysis Plant To Fuel Oil Machine
Related Products
-
10ton 12ton 15ton Automatic Feeding Waste Tyre/Plastic Pyrolysis Machine For Fuel OilUS$ 30000 - 51000MOQ: 1 Set -
8ton Non-pollution Waste Plastic Scrap Tyre Oil Pyrolysis Plant For EuropeUS$ 30000 - 45000MOQ: 1 Set
-
Continuous Waste Tyre Pyrolysis PlantUS$ 35,000 - 50,000MOQ: 1 Set
-
Continuous Waste Tyre Pyrolysis Plant for Fuel OilUS$ 300,000 - 350,000MOQ: 1 Set
-
Waste Tyre Pyrolysis PlantUS$ 30,000 - 60,000MOQ: 1 Unit
Material for waste tyre pyrolysis plant
1.Waste rubber tire, waste plastic, waste rubber products, etc.
2.Industrial mixed waste plastic, allowing dozens of waste existing at the same time (such as PP, PE, PVC mix together etc).
3.Waste oil:waste diesel, lube oil, engine oil, waste oil residue, mazut, tar oil, wax oil, waste crude oil etc.
4.Waste cable cover.
5.Waste PMMA(methyl methacrylate)rebirth.
6.Drainage oil, acid oil.
Product Model |
Specifications |
Per batch capacity |
Per day output |
Containers |
Gross weight |
Power |
2200*6000 |
2200mm*6000mm |
6ton |
3ton |
2*40HQ |
25ton |
12kw |
2200*6600 |
2200mm*6600mm |
7ton |
4ton |
2*40HQ |
27ton |
12kw |
2600*6000 |
2600mm*6000mm |
8ton |
5ton |
1*40HQ&1*FR |
30ton |
16kw |
2600*6600 |
2600mm*6600mm |
10ton |
6ton |
1*40HQ&1*FR |
33ton |
17kw |
2800*6000 |
2800mm*6000mm |
10ton |
6ton |
1*40HQ&1*FR |
36ton |
17kw |
2800*6600 |
2800mm*6600mm |
12ton |
7ton |
1*40HQ&1*FR |
39ton |
17kw |
2. Pyrolysis plant models and specification
NO. |
Fuel |
1 |
Oil(fuel oil, tyre oil, heavy oil etc..) |
2 |
Natural gas |
3 |
Coal |
4 |
Firewood |
5 |
Carbon black pellet |
4. End product percentage and useage( Example : raw material is tyre)
NO. |
Name |
Percentage |
Usage |
1 |
Tyre oil |
45% |
* can be sold directly. * make diesel and gasoline by use oil distillation machine. * can be as fuel. |
2 |
Carbon black |
30% |
* can be sold directly. * make fine carbon by use carbon black refining machine. * make pellet by use carbon make pellet machine. |
3 |
Steel wire |
15% |
* can be sold directly. * make steel bloom by use hydraulic press-packing |
4 |
Oil gas |
10% |
* can be as fuel burn by use gas burn system (pyrolysis machine included) *extra gas also be storage as fuel for other heating. |
5. Pyrolysis machine advantage and main technical characteristics
1. High oil output rate 45%--55% with special catalyst formula and high tech .
2. Rapid condensers and large cooling area,assure you get much more and higher quality oil. diversiform cooling system can be choose according to client's willingness
3. Dust-removing device -four levels dust processing system make sure no any population and the output smoking is the spray more environmental protection.
4. Double tail-gas recycling and burning system, saving energy.
5. Q245R boiler plate, high temperature resistance, thickness reaches 14mm—16mm,guarantee 4-7 years service lives. and optional plate is Q345R
6. OptionalAuto feeder and carbon black discharge elevator, high automation, saving time and labors.
7. Eco-friendly and no any population, environmental protection
flow chart and working processing

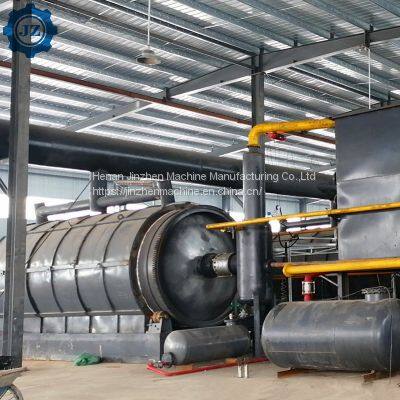

First, the scrap tyres are put into the reactor, and then seal the feeding in door, later start the machine and the reactor will be rotating and heated by coal, natural gas, wood or electricity. When the temperature reaches the degree of 250 to 280, we will get the crude oil, the oil steam will be continuous produced until the temperature reaches 350-460°C; oil steam will flow through oil gas separator, light component will enter the condensers and meanwhile the heavy oil will be discharged automatically into in heavy oil tank. The liquefied part will be condensed as crude oil, and the part which cannot be liquefied will be transferred by the water seal back to the burning chamber to be reused as heating material.
