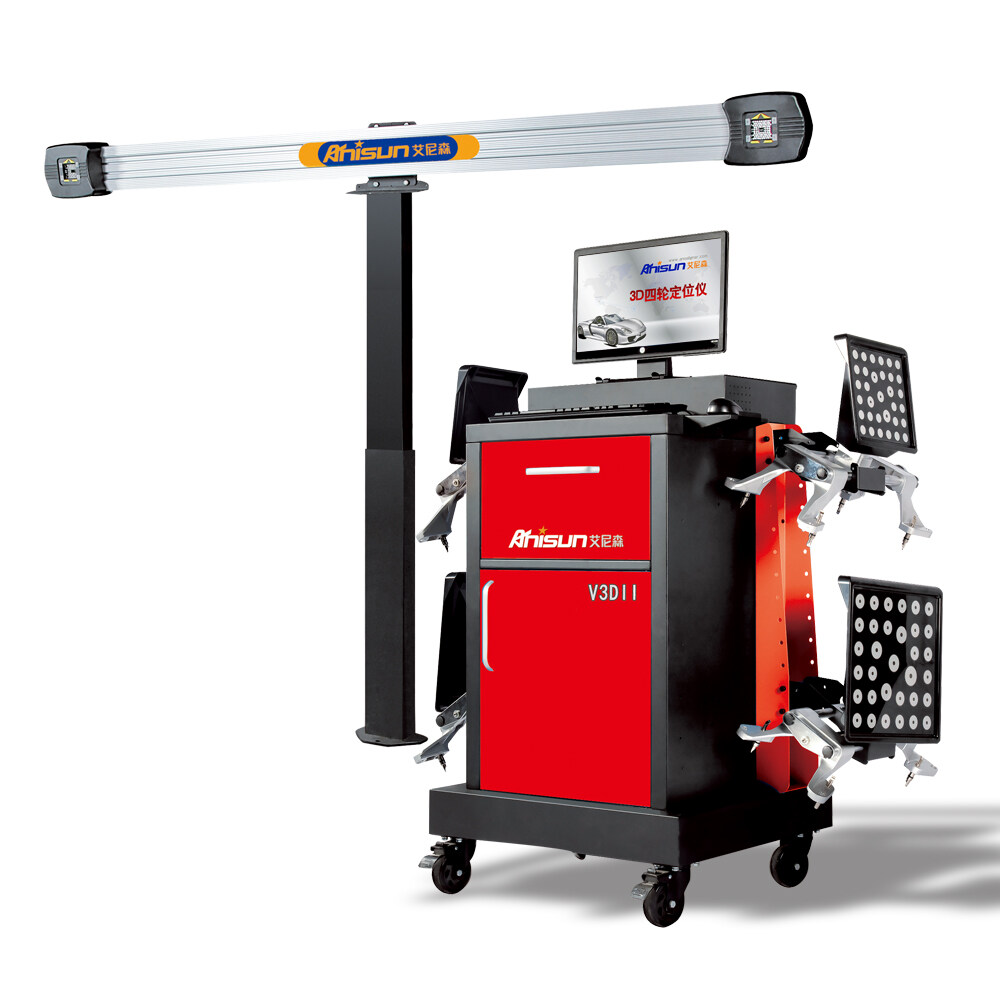

Help CenterWheel Alignment Machine V3DII
Related Products
-
Anisun V3DII 3D Wheel Alignment MachineUS$ 2215 - 2356MOQ: 2 Sets -

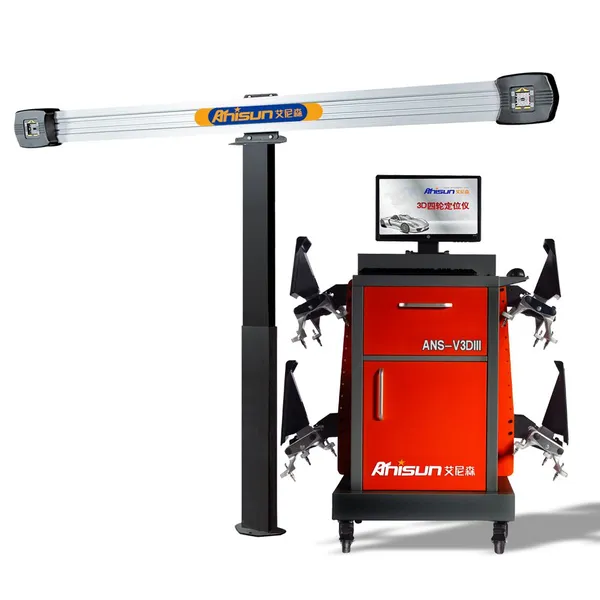

Anisun V3DIII 3D Wheel AlignerUS$ 2215 - 2356MOQ: 2 Sets
-
Anisun V3K2 3D Wheel Alignment MachineNegotiableMOQ: 1 Set
-
Anisun V3K5 Wheel Alignment MachineNegotiableMOQ: 1 Set
-
Anisun VD615 Integrated 3D Wheel Alignment MachineUS$ 2215 - 2356MOQ: 2 Sets
1. Windows 7/8, machine with self-owned intellectual property ;
2. Automatic adjustment for height of camera beam , automatic tracking the target plates ;
3. Automatic checking for height of car lift , automatic calibrate the camera ;
4. With black-box functions , all files can be saved for future analysis ;
5. Quicker running for alignment with guiding menu ,can read database within 3 minutes ;
6. 3D animated measurement , easy for training and operate ;
7. Available for OEM vehicle database ;
8. Manual enter height of vehicle ;
9.“ MKS” measurement special for Benz ;
10. Available for single-wheel positioning ,two wheel positioning , four wheel positioning ;
11. 26kinds of language for different countries and districts ;
12. Adjustment function for FORD bushing ;
13. Instruction function for North star shims ;
14. Measurement for Caster Trail ;
15. Measurement for Scrub Radius & SAI ;
16. Cradle Adjust of motor ;
17. A-Arm resetting on turntable ;
18. Adjustment for Camber at Zero Toe
19. Drag Link Adjust to ensure the steering wheel in the middle
20. Single Tie Rod Adjust
Technical data:
Item |
Accurancy |
Range |
Total range |
Camber |
±0.02° |
±10° |
±10° |
Caster |
±0.05° |
±10° |
±10° |
KPI |
±0.02° |
±20° |
±20° |
Toe |
±0.02° |
±2.4° |
±4.8° |
Rear axle offset |
±0.02° |
±2° |
±4° |
Max steering angle |
±0.08° |
±20° |
±45° |
Thrust-angle |
±0.02° |
±2° |
±4° |
Track with difference |
±0.03° |
±2° |
±8° |
Front setback |
±0.02° |
±2° |
±4° |
Rear setback |
±0.02° |
±2° |
±4° |
Track width |
±0.64cm(±0.25cm) |
||
Wheel base |
±0.64cm(±0.25cm) |
Company Picture:
Our service:
1) Warranty: 36 months;
2) Delivery time: 3-5 working days after payment received;
3) 1set sample order is acceptable;
4) Method of payment: T/T , TRADE ASSURANCE;
5) Certificate: TUV , ISO , CE.
