High Quality DC12V/24V AC110V/220V Air Compressor Condensate Auto Drain Valve Automatic Drain Solenoid Valve With Timer CS-720W

ShanghaiAEK
High Quality DC12V/24V AC110V/220V Air Compressor Condensate Auto Drain Valve Automatic Drain Solenoid Valve With Timer CS-720W thumbnail-1
High Quality DC12V/24V AC110V/220V Air Compressor Condensate Auto Drain Valve Automatic Drain Solenoid Valve With Timer CS-720W thumbnail-2
High Quality DC12V/24V AC110V/220V Air Compressor Condensate Auto Drain Valve Automatic Drain Solenoid Valve With Timer CS-720W thumbnail-3
High Quality DC12V/24V AC110V/220V Air Compressor Condensate Auto Drain Valve Automatic Drain Solenoid Valve With Timer CS-720W thumbnail-4
High Quality DC12V/24V AC110V/220V Air Compressor Condensate Auto Drain Valve Automatic Drain Solenoid Valve With Timer CS-720W thumbnail-5
High Quality DC12V/24V AC110V/220V Air Compressor Condensate Auto Drain Valve Automatic Drain Solenoid Valve With Timer CS-720W photo-1
High Quality DC12V/24V AC110V/220V Air Compressor Condensate Auto Drain Valve Automatic Drain Solenoid Valve With Timer CS-720W photo-2
High Quality DC12V/24V AC110V/220V Air Compressor Condensate Auto Drain Valve Automatic Drain Solenoid Valve With Timer CS-720W photo-3
High Quality DC12V/24V AC110V/220V Air Compressor Condensate Auto Drain Valve Automatic Drain Solenoid Valve With Timer CS-720W photo-4
High Quality DC12V/24V AC110V/220V Air Compressor Condensate Auto Drain Valve Automatic Drain Solenoid Valve With Timer CS-720W photo-5
US$ 15 - 20 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Brand Name:
Timing drain valve
Place of Origin:
China
Model Number:
CS-720W
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Timing drain valve
Place of Origin China
Model Number CS-720W
Material Alloy
Application Other, Timing drain valve
Structure Other
Standard or Nonstandard Standard
Pressure Medium Pressure
Power Other
Port Size 1/2 3/8 1/4
Media Oil
Temperature of Media Medium Temperature

 CS ---   720W                     □         ---                            □

  ↓         ↓               ↓                        ↓
RFS         Series code        Material Code                         Port Size
                       720                   Blank Brass
                                          S Stainless Steel                         02 1/4"
                                          W  Without Timer                        03 3/8''
                             WS Stainless Steel without timer          04 1/2''



Mode
CS-720W
Valve Style
2/2 Direct action
Connection Ports
1/8'' 1/4'' 3/8'' 1/2'' Female
Working Pressure
16Bar 40Bar 80Bar
On/off time
On 0.5~10S / OFF 0.5~45min
Working Temperature
-20℃~60℃
Higest Media Temperature
160℃
Valve Body
Brass/Stainless Steel
Orifice
1.9mm 2.5mm 4.5mm
Protection class/Insulation class
F/H class IP65(with plug)
Voltage
DC/AC      24~240V    50/60Hz±10%
Power
AC22VA/DC20W
Mounting
Any place

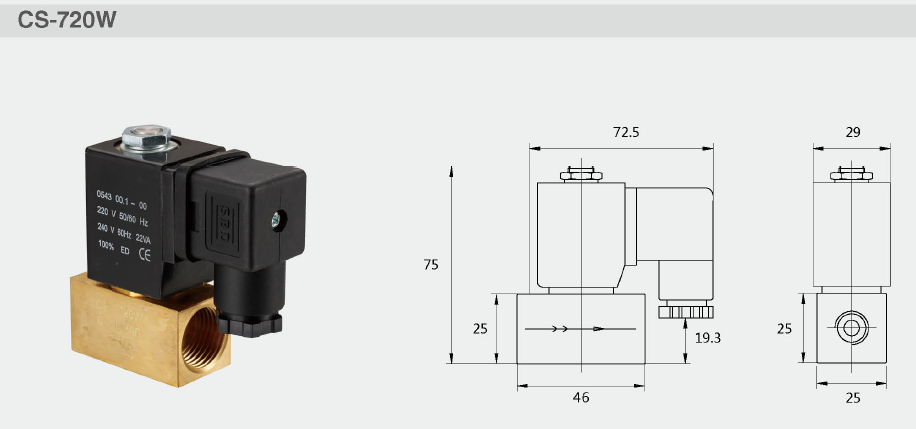

Overall Dimension


High Quality DC12V/24V AC110V/220V Air Compressor Condensate Auto Drain Valve Automatic Drain Solenoid Valve with Timer  CS-720W
