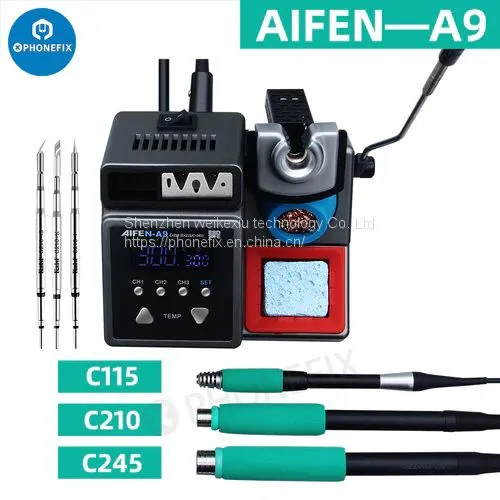

SUGON A9 Soldering Station with Soldering Handle C115 / C210 / C245 Lead-Free Smart Soldering Station

SUGON AIFEN A9 120W soldering station with T210 T245 T115 welding handle C210 C245 C115 I/IS/K iron tips for Mobile Phone electronic BGA PCB components soldering repair. Sugon AIFEN A9 lead-free soldering station compatible with JBC soldering iron tips for Phone BGA PCB repair.

Option:
1. SUGON AIFEN A9 T210 handle standard set(with K iron tips).
2. SUGON AIFEN A9 T245 handle standard set(with K iron tips).
3. SUGON AIFEN A9 T115 handle standard set(with K iron tips).

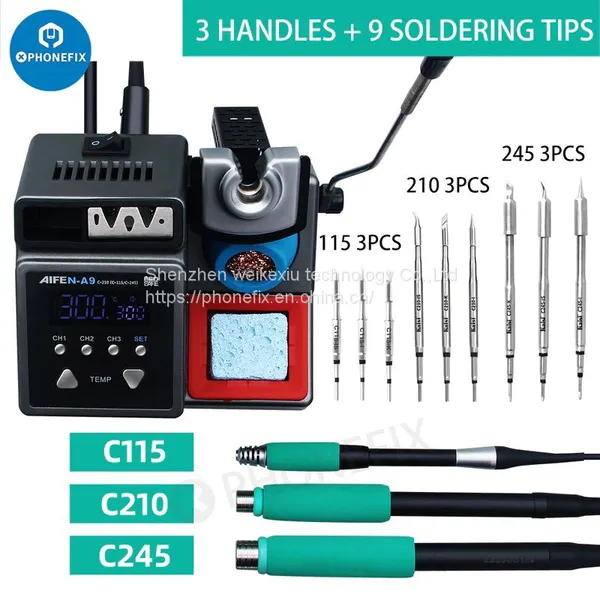

4. SUGON AIFEN A9 T210 handle full set(with 3pcs iron tips).
5. SUGON AIFEN A9 T245 handle full set(with 3pcs iron tips).
6. SUGON AIFEN A9 T115 handle full set(with 3pcs iron tips).

Note: Sugon A9 and AIFEN A9 soldering stations are produced by the same factory (Sugon), just different names.

NOTE:
1. After receiving the goods and before the first use, heating the new soldering iron tip for five minutes can effectively improve the stability of the soldering iron tip when it is working.
2. AIFEN-A9 soldering station, using the program chip to control the temperature, heating up quickly and accurately, 2 seconds to melt the tin. The A9 soldering station is compatible with C115, C210, and C245 three soldering iron head handles.
3. Product description: AIFEN-A9 soldering station, using the program chip to control the temperature, heating up quickly and accurately, 2 seconds to melt the tin. The A9 soldering station is compatible with C115, C210, and C245 three soldering iron head handles. We will be equipped with C245 handle and three soldering iron heads. If you need other handles and soldering iron heads, you can contact the merchant.

Product parameters:
Power: 120W
Input voltage: AC220V/AC110V
Frequency: 50-60Hz
Temperature range: 100°C-450°C/212°F-842°F
Product size: 24*21*17.7cm

Features:
1. The temperature control of the program chip is different from the traditional AC voltage temperature control, and the temperature rises quickly and accurately;

2. Automatic sleep function, the handle is placed on the stand, it will enter the sleep state immediately, and it will heat up immediately when it is lifted;

3. The temperature compensation function automatically compensates the temperature of the soldering iron tip during the welding process, so that the soldering iron tip is always kept at the set temperature;

4. Mechanical short-circuit protection function, when the machine is short-circuited, it will automatically stop operation to protect the machine;

5. There are 4 sets of standby temperature (0, 150, 180, 200°C), and the standby temperature can be set according to needs;

6. Key lock, Celsius and Fahrenheit conversion, buzzer and other functions.
