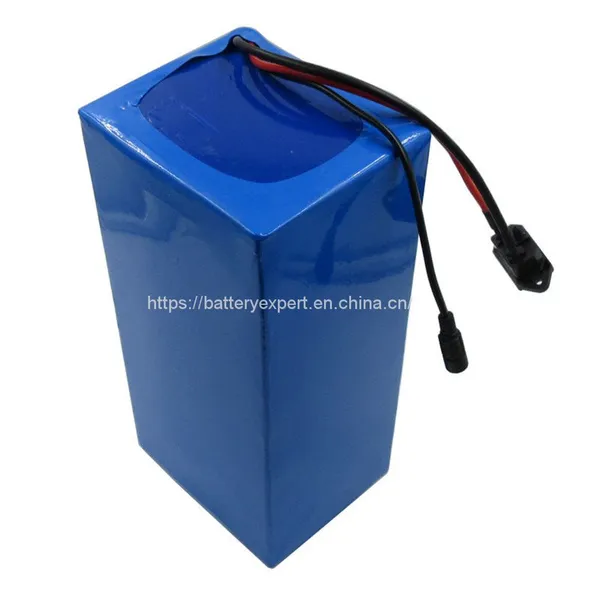

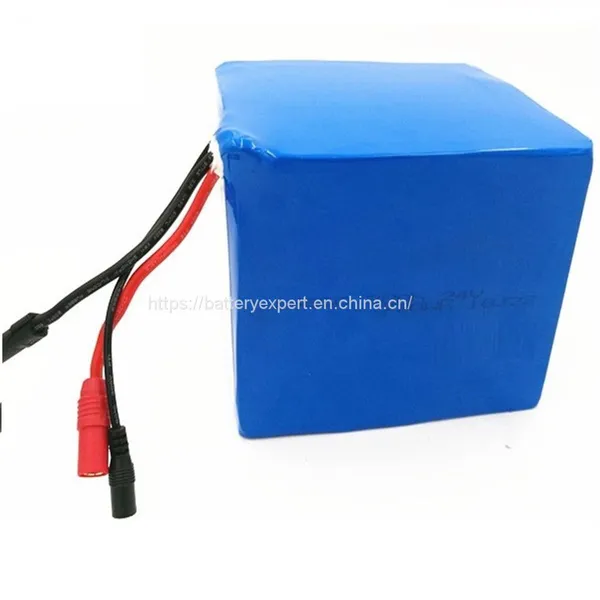

24v 20Ah 18650 7S8P With BMS Lithium Ion Li-Ion Battery Pack for E Bike Scooter
US$ 100 - 600
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
OEM
Place of Origin:
China
Model Number:
ICR24V20AH
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or Hongkong
Delivery Detail:
7 days
Related Products
-
24V 30Ah Lithium Iron Phosphate LiFePO4 Battery Pack for Electric Bike UPSUS$ 100 - 600MOQ: 5 Pieces -
24V 25.6V 20Ah Lithium Iron Phosphate LiFePO4 Battery 24v Lithium Battery for Trolley EbikeUS$ 100 - 600MOQ: 5 Pieces
-
72v 70Ah Lithium Ion Li-Ion Battery Pack for Electric BikeUS$ 100 - 600MOQ: 5 Pieces
-
24V 25.6V 30Ah LFP Battery 24v Lithium Battery for Trolley EbikeUS$ 100 - 600MOQ: 5 Pieces
-
Li-ion 6S1P 24V 22.2V 2600mAh 18650 Lithium Ion Battery PackUS$ 100 - 600MOQ: 5 Pieces
Brand Name
OEM
Place of Origin
China
Model Number
ICR24V20AH
Size
as picture
Weight
2.8kg
Voltage
Other, 24V
Usage
UPS
Nominal Capacity
20Ah
Maintenance Type
Free
Sealed Type
Other, Li-Ion battery
24v 20Ah 480WH Lithium Ion Li-Ion battery pack with BMS for 350W engine:
PRODUCT DESCRIPTION
| No. | Item | Specification | Remarks | |
| 1 | Brand Name | OEM | ||
| 2 | Model No. | ICR24V20AH | ||
| 3 | Nominal Capacity | 20Ah | 0.2 C5A discharge | |
| 4 | Nominal Voltage | 25.2V | ||
| 5 | Discharge Voltage (Min.) | 19.25V | ||
| 6 | Charging Voltage (Max.) | 29.4V | ||
| 7 | Charging Current (std.) | 0.2 C5A | ||
| 8 | Discharging Current (Max. continue) | 1 C5A | ||
| 9 | Discharging Current (Max. temporary) | 1.5C5A | ||
| 10 | Charging Temperature & Humidity | 0℃ ~ +45℃ 45~85%RH | ||
| 11 | Discharging Temperature & Humidity | -20℃ ~ +60℃ 45~85%RH | ||
| 12 | Battery storage and transportation environment temperature & humidity ranges | Min. 1 month | -20℃ ~ +60℃ 45~85%RH | |
| Min. 3 months | -20℃ ~ +45℃ 45~85%RH | |||
| Min. 12 months | -20℃ ~ +25℃ 45~85%RH | |||
| 13 | Battery Cell | 18650 3.6V 2.5Ah | ||
| 14 | Battery Box Size |
148mm*140mm*67mm 200mm*160mm*80mm 180mm*150mm*110mm 290mm*110mm*80mm |
||
| 15 | BMS | included | ||
| 16 | Protection Fuctions |
Over charge, Over discharge, Over load, Short Circuit |
Customized Bottle type | |
| 17 | Approximate Weight | 2.8kg | ||
| 18 | Cycle Life | 1000 times | ||
| 19 | Warranty | 12 months | ||
Typical Advantage of our lithium Ion battery:
1. Safer: Triple protection designs to prevent short-circuit inside the cell.
2. Real and high capacity, Low self-discharging and no memory effect.
3. Longer cycle life more than 500 times @80% capacity retain.
4. Large batch production, offering very similar cells for rating.
