4G Wifi SD Card Mobile DVR Kit People Counter RS232/RS485 Port Bus Passenger Counting System

4G Wifi SD Card Mobile DVR Kit People Counter RS232/RS485 Port Bus Passenger Counting System

The Video-Counting Passenger Counter (VPC) is an electronic device available for installation on transit vehicles including buses which accurately records boarding and alighting data.This technology can improve the accuracy and reliability of tracking.We are specializing in R&D ,production,sales of vehicle video monitoring system,3G/4G/GPS monitoring kits, intellectual bus dispatcher`s monitoring system ,video streaming people counter. Our products refers to SD/ HDD mobile DVR,3G or 4G remote control monitoring dvr,vehicle multi-media Ads function,Car camera,Supporting PTZ control realized by local ad client software.They are widely used in all kinds of vehicle,Such as:Bus passengers counting,logistics vehicle,law enforcement cars,the ambulance and so on.

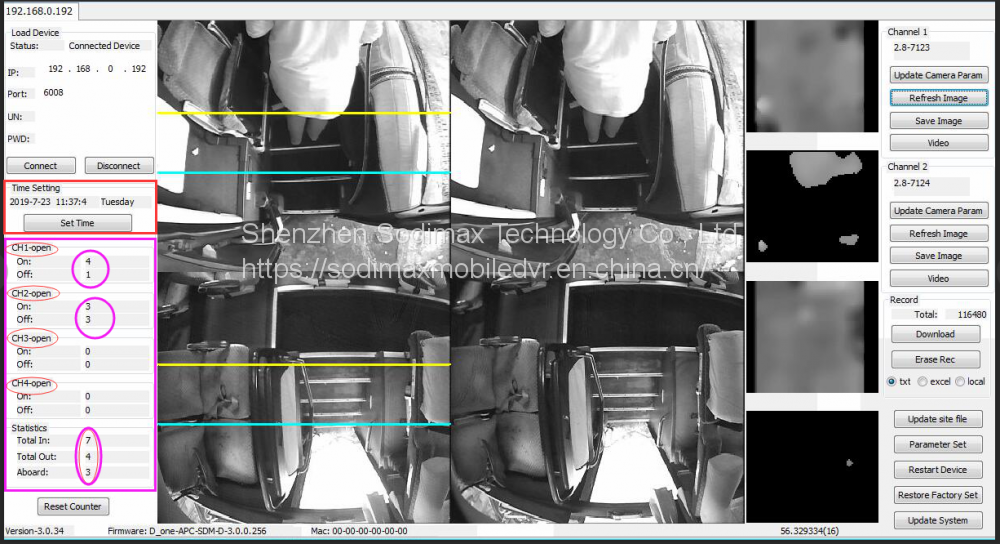

IP: This is the IP address to login the counter, default IP: 192.168.0.192

Port: This is the port to login the counter, default port:6008

Username: this is the user name to login, no need to input user name when you config the data

Password:this is the password to login, no need to input password when you config the data

Set Time: The time is for the counter system, could set it according to the actual time(MDVR with counter kit no need set the time）

Reset CH1：CH1 Clear data

Reset CH2：CH2 Clear data

Update Camera Param:Update the parameters according to the number on the camera

Refresh Image: Refresh the background

Save Image:Save the background image for the first time (When the installation environment changes, also need to save the background image)

Video:for Development and debugging use

Download Record: Download the records.

Erase Record: clear all the records

txt/excel:the file format of the downloaded record file

Parameter Set:Set the parameter

Restart Device:Restart the device

Restore Factory Set :Reset the device to factory settings

Update System:Firmware update
