R32 R38 T38 T45 T51 Top Hammer Drilling Shank Adaptors For Pneumatic Guide Drill
- 200 Piece / Pieces per Month
- Shanghai port
- T/T L/C Credit Card PayPal Cash
- 7 days
- T38 T45 T51 Drill Rig Parts Shank Adaptor Striking Bar Shank Adapter For Rock Drill Drifter Tunneling
- Mining Rock Drill Tools Shank Adaptors Shank Adapter For Extention Rod
- Mission30 Mission40 Mission50 Mission60 Mission 80 down the hole dth hammer and bit for borehole drilling
- Middle air pressure down the hole hammer tools BR1 BR2 BR3 DTH hammer for DTH drilling rig
- Factory COP DHD QL HD SD BR series DTH Hammer down the hole hammer for water well mining quarry
- Cheap drill machine spare parts High Air Pressure Drilling Down The Hole DTH Hammer
Product Details
Brand Name: | Jinzen Drills | Place of Origin: | China | Model Number: | R32, R35, R38,T38,T45,T51,T60,ST58,ST68 |
Material: | Carbon Steel | Certification: | Other, CE | Type: | Drill Shank |
Use: | Coal Mining | Processing Type: | Casting | Machine Type: | Drilling Tool |
Product Description

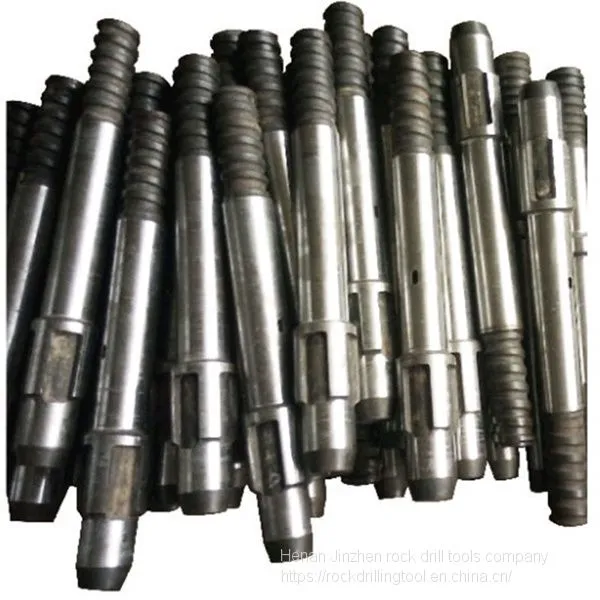

R32 R38 T38 T45 T51 Top Hammer Drilling Shank Adaptors For Pneumatic Guide Drill
We offer shank adapter, including R32, R35, R38,T38,T45,T51,T60,ST58,ST68 to compatible to world top brand.Various shanks adapters can be produced
according to the samples and the model of rock drill the customer provided.
Product Name: | shank adaptor |
Description: | shank adaptorShank adaptor is used for transmitting power between drill machine and drill stems. |
MOQ: | No MOQ required for testing and trial order |
Thread: | R32,R38,T38,T45,T51 |
Length: | 300mm-800mm |
Our shank adaptors are available for : | (COP1238,COP1838,COP1032 etc) |
(HD715,HD612,HD609,PD200 etc) | |
(VL140,VL671,YH80A etc) | |
(HLX5,HL600,HL500,HL300,HL700,HL850,HL1000,HL1500etc) |
Specification of Shank Adaptors
Two flushing options of shank adapters: internal or external
- Internal flushing uses a water tube that fits through the center of the drill and into an o-ring seal in the end of the shank, to transfer flushing into the drill string
- External flushing, holes or a slot are required in the side of the shank adapter. These line up between seals inside the front head or water box of the rock drill, when the shank is installed. Flushing medium is supplied directly to this device and is introduced into the drill string through the shank
- External flushing is considered superior to internal flushing, as greater volumes of flushing agent can be delivered with less risk of leakage and hammer damage from water
The shanks for hydraulic drills and some pneumatic drills have external or front head flushing. Hydraulic shanks generally have at least 5 to 14-spline configuration, Pneumatic shanks tend to have internal or through flushing and can generally be identified by their lugs or 4-spline configuration.
Male shank adapters/striking bar are generally better suited for drifting, tunneling and extension applications where high bending stresses are present. While female shank adapters are used when the drilling space is limited and the total feed length is important, for example underground roof bolting.
