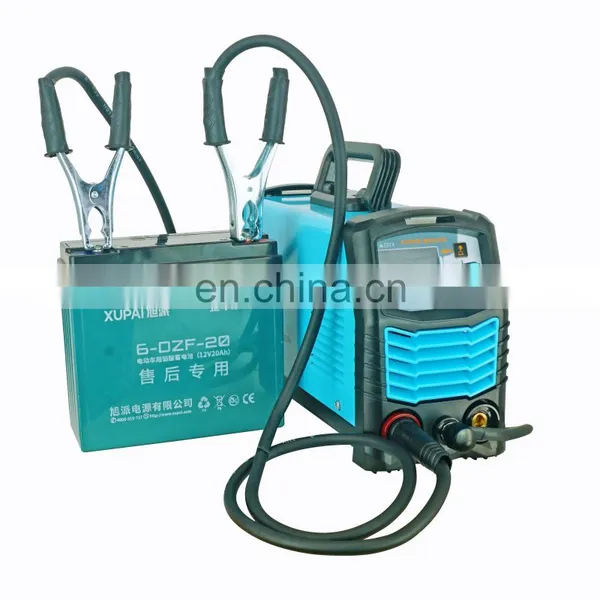

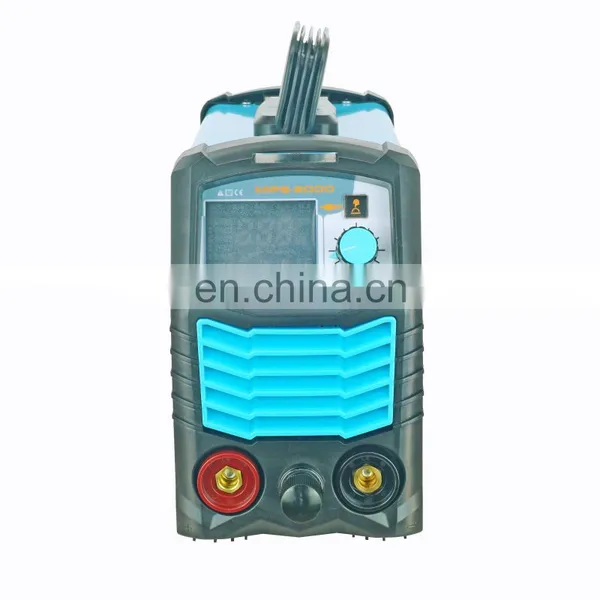

RETOP High Efficient Mini Inverter Mma Welder MMA IGBT Inverter Arc 200A Welding Machine With Battery Charging Function
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
RETOP WELDING MACHINE 5-IN-1 NEW STICK WELDER 220V 200 AMPS With Battery Charging FunctionNegotiableMOQ: 1 -
RETOP DC SINGLE PHASE INVERTER WELDER MMA SMAW WELDING MACHINE EASY ARC 200 APMS With Battery Charging FunctionNegotiableMOQ: 1
-
RETOP Manual Metal Arc Welder 200 Amps 220 V IGBT MMA Inverter Welding Machine With Battery Charging FunctionNegotiableMOQ: 1
-
RETOP Manual Metal Arc Welder 200 Amps 220 V IGBT MMA Inverter Welding Machine With Battery Charging FunctionNegotiableMOQ: 1
-
RETOP Inverter Pro MMA Welder 220 Amps 220V High Efficient Arc Stick Welding Machine With Battery Charging FunctionNegotiableMOQ: 1
Product Description
Inverter welding machine MMA -200A with Battery charging function and cleaning function
Main Features
It can provide more functions than regular MMA welders
(1):Welding current adjust
(2):Arc force adjust
(3): Hot start current adjust
(4): Hot start duration time adjust
(5):VRD function

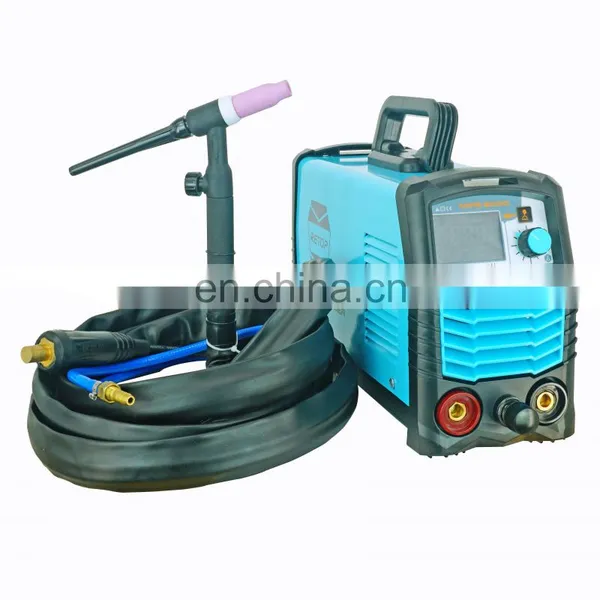

(6): Lift tig function
(7):And additional automatic current matching system.
(3): Hot start current adjust
(4): Hot start duration time adjust
(5):VRD function
(6): Lift tig function
(7):And additional automatic current matching system.
(8):LED screen
(9): Welding seam cleaning function
(10):Supports 110V/220V dual voltage
(11):Battery charging function (support both 12V/24V charging)
(9): Welding seam cleaning function
(10):Supports 110V/220V dual voltage
(11):Battery charging function (support both 12V/24V charging)
ITEM |
MIPS-1200 |
MIPS-1400 |
MIPS-1600 |
MIPS-1800 |
MIPS-2000 |
Power supply |
220v,50hz |
220v,50hz |
220v,50hz |
220v,50hz |
220v,50hz |
Welding current: MMA |
20-120A |
20-140A |
20-160A |
20-180A |
20-200A |
Welding current: TIG |
10-120A |
10-140A |
10-160A |
10-180A |
10-200A |
Cleaning current |
20-40A |
20-40A |
20-40A |
20-40A |
20-40A |
Charging current |
10-40A |
10-40A |
10-40A |
10-40A |
10-40A |
Boost current |
150A |
150A |
150A |
150A |
150A |
Arc Force current |
0-50A |
0-50A |
0-50A |
0-50A |
0-50A |
Hot Start current |
0-50A |
0-50A |
0-50A |
0-50A |
0-50A |
Hot Start time |
0-999ms |
0-999ms |
0-999ms |
0-999ms |
0-999ms |
Rated power |
4.8KW |
5.8KW |
6.8KW |
7.9KW |
9KW |
Rated input current |
21.8A |
26.3A |
30.9A |
35.9A |
41A |
Duty cycle |
0.4 |
0.4 |
0.4 |
0.4 |
0.4 |
Power factor |
0.73 |
0.73 |
0.73 |
0.73 |
0.73 |
Efficiency |
0.85 |
0.85 |
0.85 |
0.85 |
0.85 |
Protection class |
IP21S |
IP21S |
IP21S |
IP21S |
IP21S |
Insulation class |
F |
F |
F |
F |
F |
Machine weight |
3.8kg |
4kg |
4.5kg |
5.1kg |
5.3kg |
Package size |
31*20*23cm |
31*20*23cm |
33*20*23cm |
36*20*23cm |
36*20*23cm |
Related products
ARMOUR-165
Hot selling product
MMA-200
Patent product
WOLF-205PRO
Digital products
Company Introduction
Certifications
Exhibition
Action now
Why choose Retop?
a. We are welding machine MANUFACTURER, so we can offer better price and after-sale service and shorter delivery date.
b. We use all new components,mosfet tube, diode, capacitor and so on imported components.
c. We adopt IGBT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of
repairing, we just need to change the bad pcb board.
d. We provide Warranty period of 1 year for all our items
a. We are welding machine MANUFACTURER, so we can offer better price and after-sale service and shorter delivery date.
b. We use all new components,mosfet tube, diode, capacitor and so on imported components.
c. We adopt IGBT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of
repairing, we just need to change the bad pcb board.
d. We provide Warranty period of 1 year for all our items
