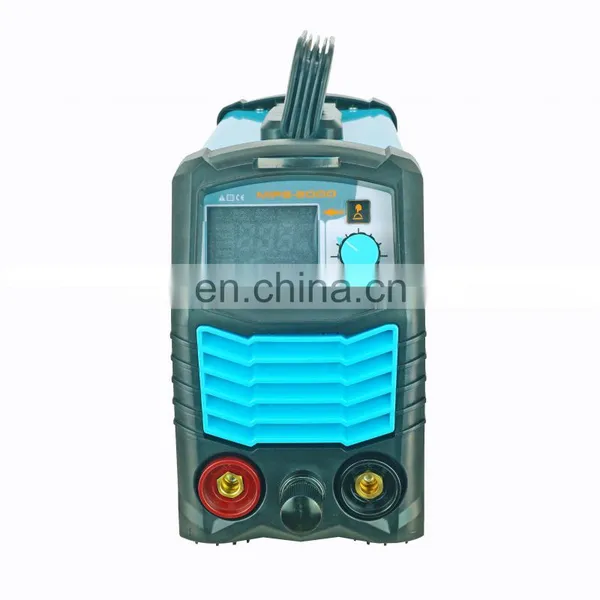

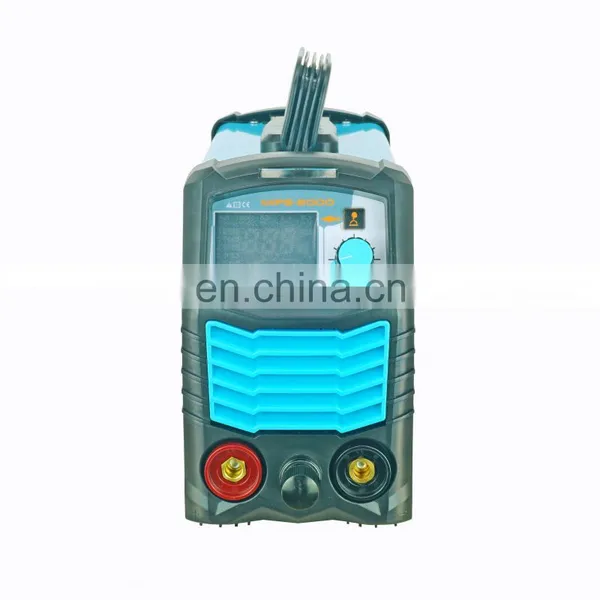

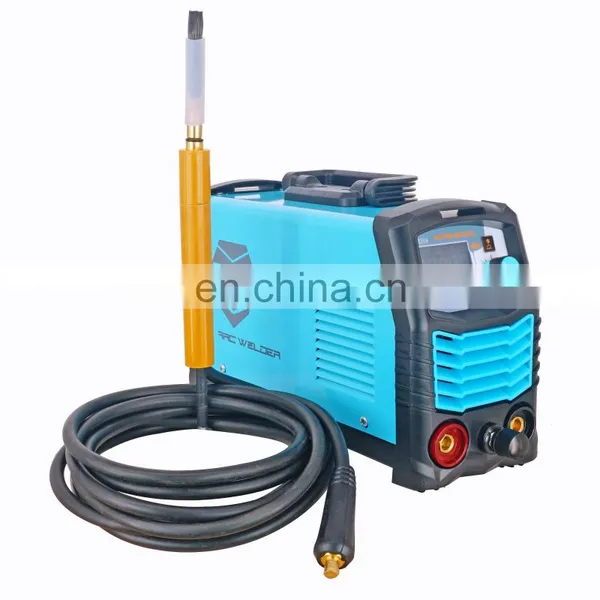

New Digital Multi-function Power Arc Welding Machine 110v/220V Rechargeable Household Necessities
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Double Nixie Tube MIG-200PRO Welder,4 Major Welding Functions, Unified Intelligent Parameter Setting, Simple Operation.NegotiableMOQ: 1 -
4 in 1 MIG-200PRO Welding Machine,Programmed Digital Control of MCU Processing Chip,5KG Screw Disc Setting.NegotiableMOQ: 1
-
TIG-200PACDC Nixie Tube Display,Mute Design,High Performance MCU Processing Chip,With Remote Control Interface.NegotiableMOQ: 1
-
TIG-200PACDC Welding Machine 5 in 1,Silent Design, Farewell to Industrial Noise Pollution,with CE Certificate.NegotiableMOQ: 1
-
Portable TIG-200PACDC Welder,5 in 1,Mute,Silent Design,with Remote Control Interface and Remote Foot Switch.NegotiableMOQ: 1
Product Description
Inverter welding machine MMA -200A with Battery charging function and cleaning function
Main Features
It can provide more functions than regular MMA welders
(1):Welding current adjust
(2):Arc force adjust
(3): Hot start current adjust
(4): Hot start duration time adjust
(5):VRD function
(6): Lift tig function
(7):And additional automatic current matching system.
(3): Hot start current adjust
(4): Hot start duration time adjust
(5):VRD function
(6): Lift tig function
(7):And additional automatic current matching system.
(8):LED screen
(9): Welding seam cleaning function
(10):Supports 110V/220V dual voltage
(11):Battery charging function (support both 12V/24V charging)
(9): Welding seam cleaning function
(10):Supports 110V/220V dual voltage
(11):Battery charging function (support both 12V/24V charging)
ITEM |
MIPS-1200 |
MIPS-1400 |
MIPS-1600 |
MIPS-1800 |
MIPS-2000 |
Power supply |
220v,50hz |
220v,50hz |
220v,50hz |
220v,50hz |
220v,50hz |
Welding current: MMA |
20-120A |
20-140A |
20-160A |
20-180A |
20-200A |
Welding current: TIG |
10-120A |
10-140A |
10-160A |
10-180A |
10-200A |
Cleaning current |
20-40A |
20-40A |
20-40A |
20-40A |
20-40A |
Charging current |
10-40A |
10-40A |
10-40A |
10-40A |
10-40A |
Boost current |
150A |
150A |
150A |
150A |
150A |
Arc Force current |
0-50A |
0-50A |
0-50A |
0-50A |
0-50A |
Hot Start current |
0-50A |
0-50A |
0-50A |
0-50A |
0-50A |
Hot Start time |
0-999ms |
0-999ms |
0-999ms |
0-999ms |
0-999ms |
Rated power |
4.8KW |
5.8KW |
6.8KW |
7.9KW |
9KW |
Rated input current |
21.8A |
26.3A |
30.9A |
35.9A |
41A |
Duty cycle |
0.4 |
0.4 |
0.4 |
0.4 |
0.4 |
Power factor |
0.73 |
0.73 |
0.73 |
0.73 |
0.73 |
Efficiency |
0.85 |
0.85 |
0.85 |
0.85 |
0.85 |
Protection class |
IP21S |
IP21S |
IP21S |
IP21S |
IP21S |
Insulation class |
F |
F |
F |
F |
F |
Machine weight |
3.8kg |
4kg |
4.5kg |
5.1kg |
5.3kg |
Package size |
31*20*23cm |
31*20*23cm |
33*20*23cm |
36*20*23cm |
36*20*23cm |
Related products
ARMOUR-165
Hot selling product
MMA-200
Patent product
WOLF-205PRO
Digital products
Company Introduction
Certifications
Exhibition
Action now
Why choose Retop?
a. We are welding machine MANUFACTURER, so we can offer better price and after-sale service and shorter delivery date.
b. We use all new components,mosfet tube, diode, capacitor and so on imported components.
c. We adopt IGBT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of
repairing, we just need to change the bad pcb board.
d. We provide Warranty period of 1 year for all our items
a. We are welding machine MANUFACTURER, so we can offer better price and after-sale service and shorter delivery date.
b. We use all new components,mosfet tube, diode, capacitor and so on imported components.
c. We adopt IGBT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of
repairing, we just need to change the bad pcb board.
d. We provide Warranty period of 1 year for all our items
