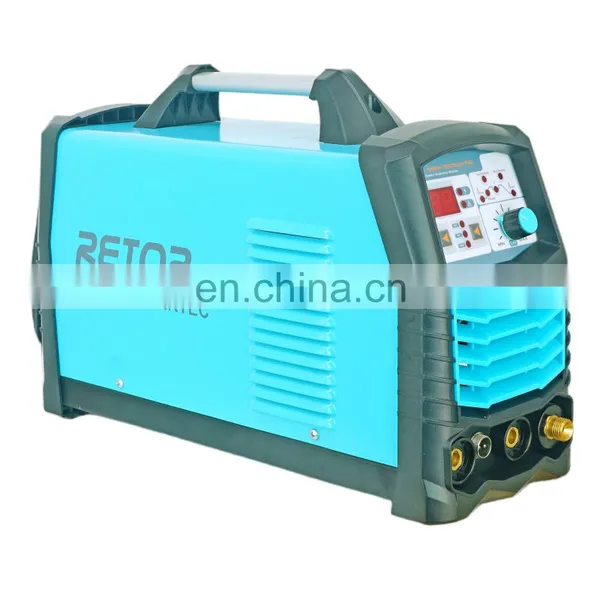

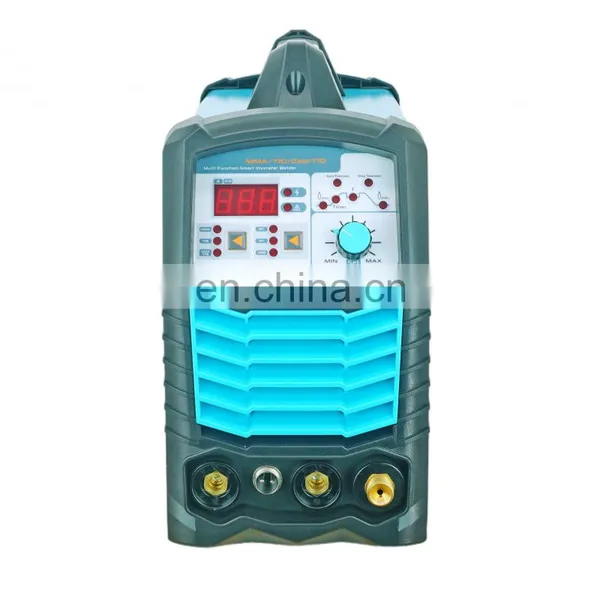

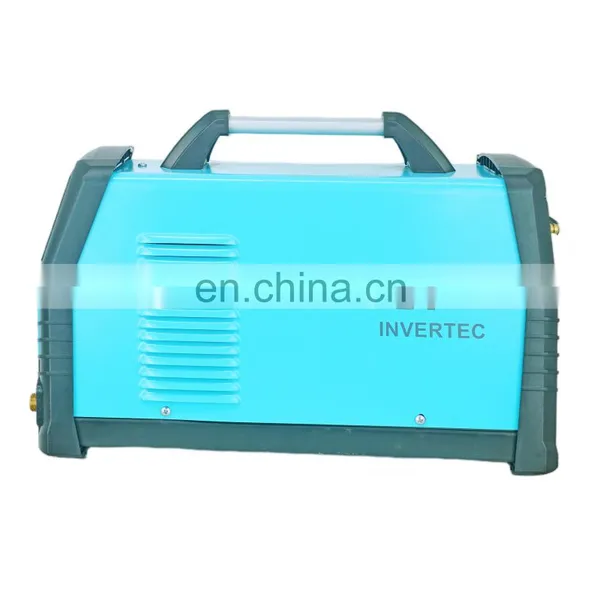

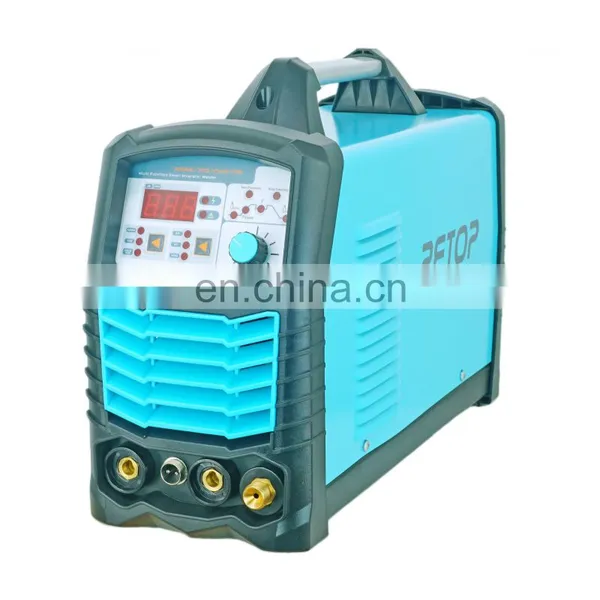

RETOP IGBT INVERTED DC DIGITAL Argon TIG Cold Welding Machine

RETOP IGBT INVERTED DC DIGITAL Argon TIG Cold Welding Machine thumbnail-1
RETOP IGBT INVERTED DC DIGITAL Argon TIG Cold Welding Machine thumbnail-2
RETOP IGBT INVERTED DC DIGITAL Argon TIG Cold Welding Machine thumbnail-3
RETOP IGBT INVERTED DC DIGITAL Argon TIG Cold Welding Machine thumbnail-4
RETOP IGBT INVERTED DC DIGITAL Argon TIG Cold Welding Machine thumbnail-5
RETOP IGBT INVERTED DC DIGITAL Argon TIG Cold Welding Machine photo-1
RETOP IGBT INVERTED DC DIGITAL Argon TIG Cold Welding Machine photo-2
RETOP IGBT INVERTED DC DIGITAL Argon TIG Cold Welding Machine photo-3
RETOP IGBT INVERTED DC DIGITAL Argon TIG Cold Welding Machine photo-4
RETOP IGBT INVERTED DC DIGITAL Argon TIG Cold Welding Machine photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Contact Supplier Request Quote Chat Now
Jingjiang Fuji Technology Co., Ltd.
Gold Verified Supplier
4Yrs
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

3 IN 1 WELDING MACHINE

TIG / PULSE / COLD

Function

1.TIG:Excellent Welding Performance
Two Welding modes available(DC/Hot Pulse)

2. Cold:No Distortion,No Discoloration
Two Welding modes available(Spot/Cold Pulse)

3. Storage & Recall
Store usual welding parameters One-click to weld More Convenient and faster

4. Per-flow & Post-flow Setting
Per-flow：Exclude other gases around the gun before welding.
Post-flow:Protect workpiece from oxidation.
ITEM

COLD TIG-200
Tube Type
IGBT Tube
Function
Hot TIG
TIG 3 in 1
Cold TIG
Pulsed TIG
Power voltage(V)
AC220V+15%
 Input Power Frequency
50/60HZ
 Rated Input Capacity
4.6KVA
Rated input current(A)
20.9A
Rated output(A)
200A/18.6V
Duty cycle(%) 40C
60%
200
100%
160
Hot TIG
Output current range(A)
20-200
Output current time(S)
1-999
Second current time(S)
/
Pulsed TIG
Peak Current
10-250
Pulse Frequency
4-0.01S
Second Pluse Frequency
/
Pulse Width(Ratio)
5-95
Pre-Gas Time(S)
0-2
Flow-Gas Time(S)
0.5-5
Plate Thickness
0.4-3mm
Efficiency(%)
85%
Power factor
0.76
Insulation of main transformer
H
Protect class
iP21S
Tungsten needle(mm)

1.6-2.4
Dimension(mm)
380*140*270
Weight(kg)
8

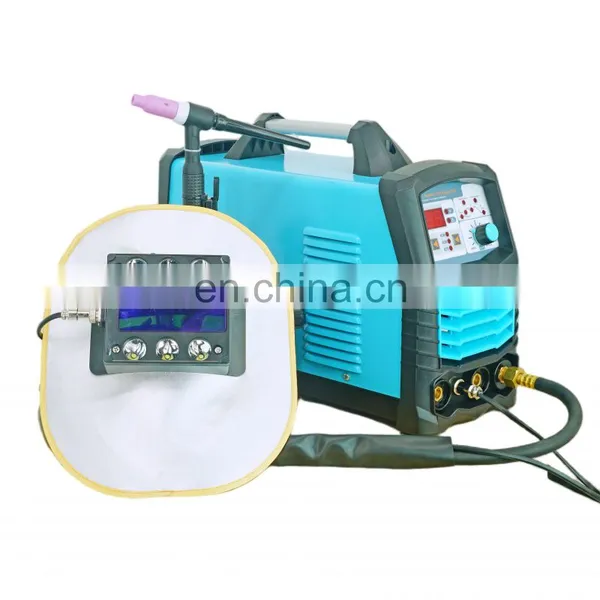

Accessories
The default accessories
4M QQ-150 TIG torch 1.8M Electerde holder 1.2M earth clamp Brush & Mask
Can match it with something else
Welding gloves
Tungsten needle
gas tube
Real Welding Effects
Company Introduction
Certifications
Exhibition
FAQ

MOQ:

  • The different products with different MOQ. Contact us with more details.
  • If with stock, 1-5 sets could be acceptable as well.



Payment:

  • TT payment would be preferred: usually 30% deposit and the balance before shipment

Delivery time:

  • Within 20 days after confirming the payment

Sample Issue

  • Once price and order confirmed, we will be glad to send you the required samples for reference.

First time to use this kind of machine

  • There is an English manual or guide video that show you how to use machine.
  • If you still have any question, please contact us by e-mail /phone / online service.

If any problem with machine after receiving

  • 24 hours to support by E-mail/calling
  • Free parts could be sent to you in machine warranty period.

Why choose us?

  • We are welding machine MANUFACTURER,so we can offer better price and after-sale service and shorter delivery date.
  • We use all new components,IGBT tube, diode,capacitor and so on imported components.
  • We adopt SMT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of repairing,we just need to change the bad pcb board.
  • We provide Warranty period of 1 to 2 years for all our items.
Action now
Why choose Retop?
a. We are welding machine MANUFACTURER, so we can offer better price and after-sale service and shorter delivery date.

b. We use all new components,mosfet tube, diode, capacitor and so on imported components.

c. We adopt IGBT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of
repairing, we just need to change the bad pcb board.

d. We provide Warranty period of 1 year for all our items
