Tig Cold Wire Feeder Feeding Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
RETOP Double Pulse Mig Mag Welding Machine MIG-200WDPNegotiableMOQ: 1 -
Inverter Double Pulse Mig Mag Welding Machine MIG-200WDP Welder Mig for SaleNegotiableMOQ: 1
-
RETOP Double Pulse Welding Machine Mig Mag MIG-200WDP Mig WelderNegotiableMOQ: 1
-
Inverter Double Pulse Mig Aluminium Mig Mag Welding Machine MIG-200WDPNegotiableMOQ: 1
-
MIG Welding Machine Double Pulse MIG-200WDPNegotiableMOQ: 1
Product Description
3 IN 1 WELDING MACHINE
TIG / PULSE / COLD
Function
1.TIG:Excellent Welding Performance
Two Welding modes available(DC/Hot Pulse)
2. Cold:No Distortion,No Discoloration
Two Welding modes available(Spot/Cold Pulse)
3. Storage & Recall
Store usual welding parameters One-click to weld More Convenient and faster
4. Per-flow & Post-flow Setting
4. Per-flow & Post-flow Setting
Per-flow：Exclude other gases around the gun before welding.
Post-flow:Protect workpiece from oxidation.
ITEM |
COLD TIG-200 |
||
Tube Type |
IGBT Tube |
||
Function |
Hot TIG |
TIG 3 in 1 |
|
Cold TIG |
|||
Pulsed TIG |
|||
Power voltage(V) |
AC220V+15% |
||
Input Power Frequency |
50/60HZ |
||
Rated Input Capacity |
4.6KVA |
||
Rated input current(A) |
20.9A |
||
Rated output(A) |
200A/18.6V |
||
Duty cycle(%) 40C |
60% |
200 |
|
100% |
160 |
||
Hot TIG |
Output current range(A) |
20-200 |
|
Output current time(S) |
1-999 |
||
Second current time(S) |
/ |
||
Pulsed TIG |
Peak Current |
10-250 |
|
Pulse Frequency |
4-0.01S |
||
Second Pluse Frequency |
/ |
||
Pulse Width(Ratio) |
5-95 |
||
Pre-Gas Time(S) |
0-2 |
||
Flow-Gas Time(S) |
0.5-5 |
||
Plate Thickness |
0.4-3mm |
||
Efficiency(%) |
85% |
||
Power factor |
0.76 |
||
Insulation of main transformer |
H |
||
Protect class |
iP21S |
||
Tungsten needle(mm) |
1.6-2.4 |
||
Dimension(mm) |
380*140*270 |
||
Weight(kg) |
8 |
||
Accessories
The default accessories

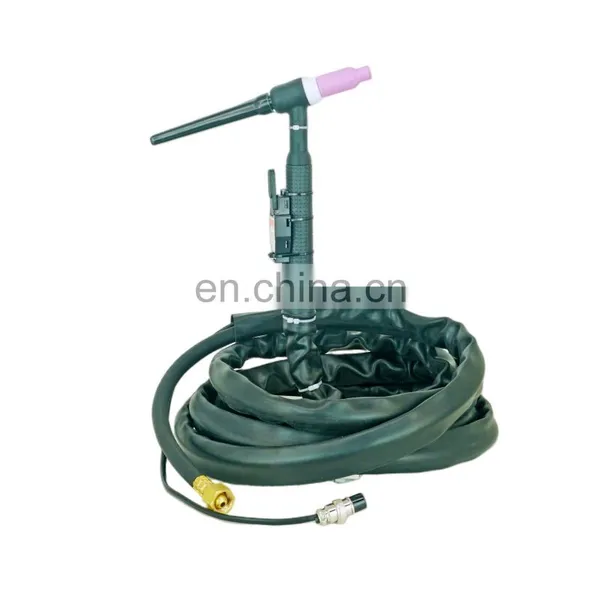

4M QQ-150 TIG torch 1.8M Electerde holder 1.2M earth clamp Brush & Mask
Can match it with something else
Welding gloves
Tungsten needle
gas tube
Real Welding Effects
Company Introduction
Certifications
Exhibition
FAQ
MOQ:
- The different products with different MOQ. Contact us with more details.
- If with stock, 1-5 sets could be acceptable as well.
Payment:
- TT payment would be preferred: usually 30% deposit and the balance before shipment
Delivery time:
- Within 20 days after confirming the payment
Sample Issue
- Once price and order confirmed, we will be glad to send you the required samples for reference.
First time to use this kind of machine
- There is an English manual or guide video that show you how to use machine.
- If you still have any question, please contact us by e-mail /phone / online service.
If any problem with machine after receiving
- 24 hours to support by E-mail/calling
- Free parts could be sent to you in machine warranty period.
Why choose us?
- We are welding machine MANUFACTURER,so we can offer better price and after-sale service and shorter delivery date.
- We use all new components,IGBT tube, diode,capacitor and so on imported components.
- We adopt SMT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of repairing,we just need to change the bad pcb board.
- We provide Warranty period of 1 to 2 years for all our items.
Action now
Why choose Retop?
a. We are welding machine MANUFACTURER, so we can offer better price and after-sale service and shorter delivery date.
b. We use all new components,mosfet tube, diode, capacitor and so on imported components.
c. We adopt IGBT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of
repairing, we just need to change the bad pcb board.
d. We provide Warranty period of 1 year for all our items
a. We are welding machine MANUFACTURER, so we can offer better price and after-sale service and shorter delivery date.
b. We use all new components,mosfet tube, diode, capacitor and so on imported components.
c. We adopt IGBT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of
repairing, we just need to change the bad pcb board.
d. We provide Warranty period of 1 year for all our items
