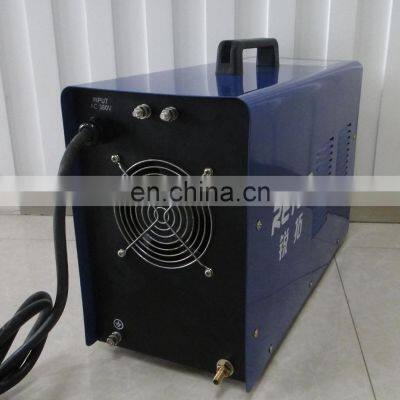

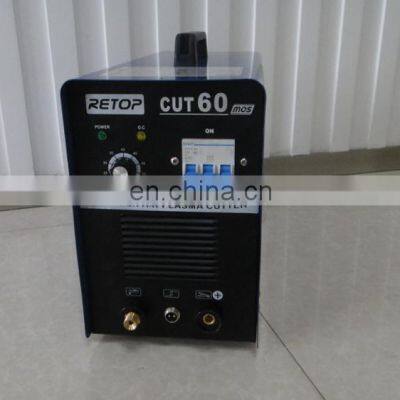

MOSFET INVERTER AIR
PLASMA CUTTER CUT-60
|
 |
ITEM |
CUT-60 |
| Input Power Voltage |
AC400V |
| Input Power Frequency |
50/60HZ |
| Rated Input Capacity |
6.9KVA |
| Output Current |
20-60A |
| No-Load Voltage |
250V |
| Rated Duty Cycle |
60% |
| Arc Start |
Touch |
| Power Factor |
0.93 |
| Gas Pressure |
0.2-0.4mpa |
| Insulation Grade |
F |
| Protection Grade |
IP21S |
| Dimensions |
510*210*360mm |
| Net Weight |
16.2KG |
(1)MOSFET inverter and PWM technology,energy-efficient,power frequency and no noise.
(2)Use compressed air as cutting gas source,cost-effective.
(3)Air pressure and cutting current adjustable.
(4)Easy operation,narrow cutting seams,smooth cutting performance and less deformation.
(5)Circuit protection against over current,over voltage and over heat.
(6)Suitable for cutting carbon steel,stainless steel and alloy steel,copper,and aluminum,etc.
Widely used in iron structure construction,manufacturing and automobile maintenance.
(7)Supplied complete with CUT torch,air regulator,pressure gauge,earth clamp,welding cable,face mask and welding brush..
|
ITEM
|
UNIT
|
CUT-30
|
CUT-40
|
CUT-60
|
CUT-100
|
|
Input power voltage
|
V
|
AC220V
|
AC110/220V
|
AC380V
|
AC-380V
|
|
Input power frequency
|
HZ
|
50/60
|
50/60
|
50/60
|
50/60
|
|
Rated input capacity
|
KVA
|
3.5
|
4.8
|
6.9
|
13
|
|
Output current range
|
A
|
30
|
40
|
60
|
100
|
|
No-load voltage
|
V
|
230
|
236
|
250
|
270
|
|
Gas pressure
|
mpa
|
0.2-0.4
|
0.2-0.4
|
0.2-0.4
|
0.2-0.4
|
|
Power factor
|
cosΦ
|
0.93
|
0.93
|
0.93
|
0.93
|
|
Rated duty cycle
|
%
|
60
|
60
|
60
|
60
|
|
dimensions
|
mm
|
410x155x300
|
410x155x300
|
510x210x360
|
590x345x485
|
|
Net weight
|
kg
|
7.8
|
8.3
|
17
|
33
|
|
|
|
|
| 3m MIG Torch |
1.2m Earth Clamp |
Mask and brush |
| |
|
|
|
| MIG-200P |
MIG-200U |
MMA-200LI |
TIG-200S |
| CERTIFICATIONS: |
| |
| COMPANY INFORMATION: |
Taizhou Retop Mechanical & Electrical Co., Ltd. was established in 2011 and is located in Wenling, Zhejiang Province. We are dedicated to designing, testing and manufacturing a full line of welding and cutting products that are with industrial quality and easy to use. Whether you're in production, farming, maintenance, auto repair, or a do-it-yourselfer, we have a product that fits your needs.
With advanced technology and manufacturing equipment, we provide high-quality products and superior services for our customers. We also offer customers the flexibilities in product design and construction, coupled with superior services before and after sale. With our dedicated commitment to customer services, you'll find that we're easy to contact, easy to work with and easy to get information from - we're here to help you.
Our passion is to improve existing products and to develop new applications that benefit our customers and meet their constantly changing needs. We continue to make progress by implementing a philosophy that stresses quality in all of our operations.
We hope you will stay a while at our website. Please view our product offerings and get acquainted with us. |
|
|
Main products:AC Welder,DC Inverter Welder,Tig Welder,Mig Welder,Plasma Cutter,Battery Charger
Main market: Domestic Market, Eastern Europe, Southeast Asia, South Asia, Mid East...
