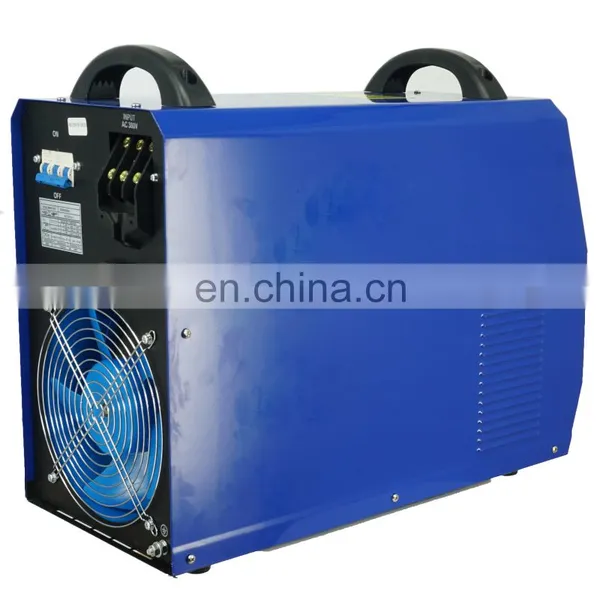

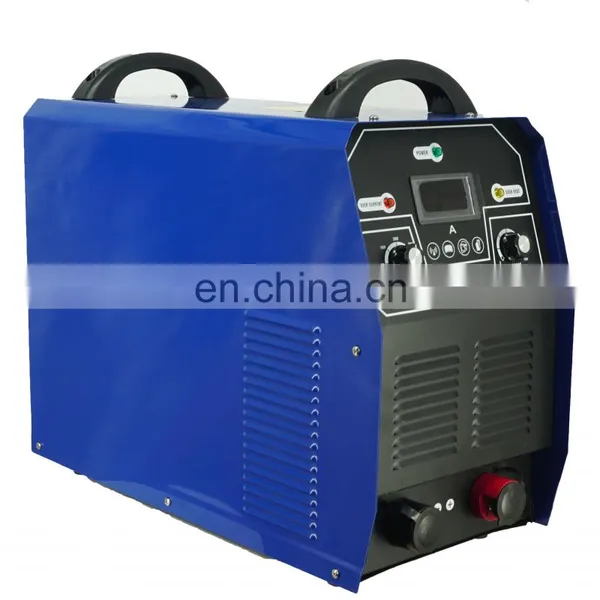

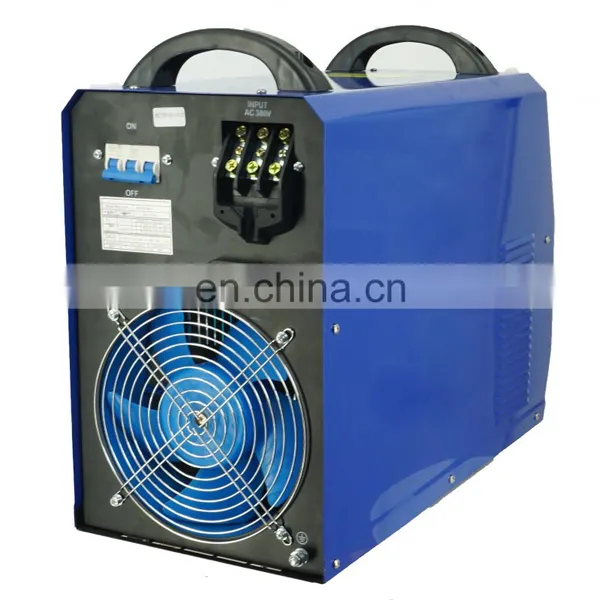

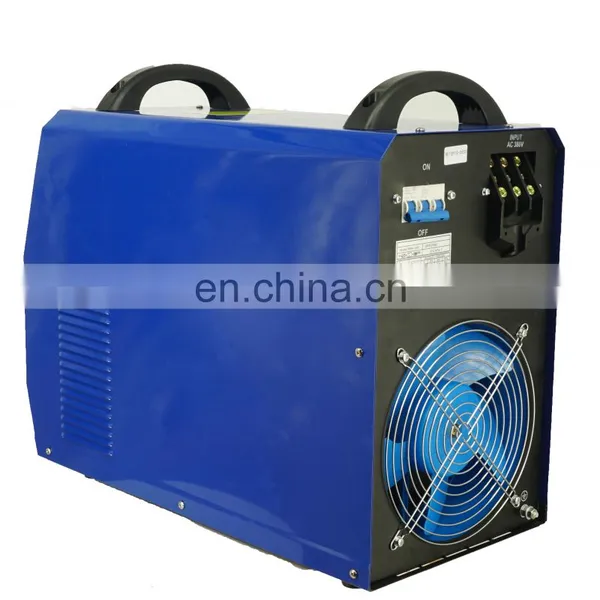

MMA-500GW Energy Saving IGBT DC Inverter Arc Welder

Jingjiang Fuji Technology Co., Ltd.
4Yrs
MMA-500GW Energy Saving IGBT DC Inverter Arc Welder thumbnail-1
MMA-500GW Energy Saving IGBT DC Inverter Arc Welder thumbnail-2
MMA-500GW Energy Saving IGBT DC Inverter Arc Welder thumbnail-3
MMA-500GW Energy Saving IGBT DC Inverter Arc Welder thumbnail-4
MMA-500GW Energy Saving IGBT DC Inverter Arc Welder thumbnail-5
MMA-500GW Energy Saving IGBT DC Inverter Arc Welder photo-1
MMA-500GW Energy Saving IGBT DC Inverter Arc Welder photo-2
MMA-500GW Energy Saving IGBT DC Inverter Arc Welder photo-3
MMA-500GW Energy Saving IGBT DC Inverter Arc Welder photo-4
MMA-500GW Energy Saving IGBT DC Inverter Arc Welder photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

ANGLE SERIES MMA-315/400/500GW


Main Features

(1)Advanced IGBT switching power supply and PWM technology,enclosed feedback contronl circuit,energy-efficient and low noise.

(2)Additional arc force control and digital dispaly.

(3)Rugged,reliable performance and superior arc characterisitcs.

(4)Built-in alarming and protective circuits are provided to prevent over current,over heat and over voltage.

(5)Run every type of stick electride,including cellulosic and those for stainless steel.

(6)Hight strength case construction for industrial applications.

(7)Ideal for stick welding in vocation education, industrial production,maintenance and repair or farm shop environments,etc.
ITEM
UNIT
MMA-315GW
MMA-400GW
MMA-500GW
Input Power Voltage
V
AC400V
AC400V
AC400V
 Input Power Frequency
Hz
50/60
50/60
50/60
 Rated Input Capacity
KVA
8
10
15
Output Current Range
A
20-220
20-260
20-350
Arc foce range
A
0-100
0-100
0-100
No-load Voltage
V
60
60
60
Rated Duty Cycle
%
60
60
60
Power factor
Cos
0.93
0.93
0.93
Protection Grade

IP21S
IP21S
IP21S
Dimensions
mm
480*250*410
480*250*410
480*250*410
Weight
Kg
14.5
15
17
