Home > Auto, Motorcycle Parts & Accessories > Auto Engine Structure > Ignition System > TIG 160S Post-flow High Frequency MOSFET Dc Inverter Welder Welding Machine Good New Accessories Retop Welder DC MOTOR 50/60 HZ

TIG 160S Post-flow High Frequency MOSFET Dc Inverter Welder Welding Machine Good New Accessories Retop Welder DC MOTOR 50/60 HZ

TIG 160S Post-flow High Frequency MOSFET Dc Inverter Welder Welding Machine Good New Accessories Retop Welder DC MOTOR 50/60 HZ thumbnail-3

TIG 160S Post-flow High Frequency MOSFET Dc Inverter Welder Welding Machine Good New Accessories Retop Welder DC MOTOR 50/60 HZ thumbnail-4

TIG 160S Post-flow High Frequency MOSFET Dc Inverter Welder Welding Machine Good New Accessories Retop Welder DC MOTOR 50/60 HZ thumbnail-5

TIG 160S Post-flow High Frequency MOSFET Dc Inverter Welder Welding Machine Good New Accessories Retop Welder DC MOTOR 50/60 HZ photo-1

TIG 160S Post-flow High Frequency MOSFET Dc Inverter Welder Welding Machine Good New Accessories Retop Welder DC MOTOR 50/60 HZ photo-2

TIG 160S Post-flow High Frequency MOSFET Dc Inverter Welder Welding Machine Good New Accessories Retop Welder DC MOTOR 50/60 HZ photo-3

TIG 160S Post-flow High Frequency MOSFET Dc Inverter Welder Welding Machine Good New Accessories Retop Welder DC MOTOR 50/60 HZ photo-4

TIG 160S Post-flow High Frequency MOSFET Dc Inverter Welder Welding Machine Good New Accessories Retop Welder DC MOTOR 50/60 HZ photo-5

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Business Type:

Manufacturer

Year Established:

2018

Factory Size:

Below 1,000 square meters

Contact Supplier Request Quote Chat Now

Jingjiang Fuji Technology Co., Ltd.

4Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

MOSFET INVERTER DC TIG-160S ARC WELDING MACHINE
	ITEM	TIG-160S
	Input Power Voltage	AC230V
	Input Power Frequency	50/60HZ
	Rated Input Capacity	3.3KVA
	Output Current	140A
	No-Load Voltage	42V
	Rated Duty Cycle	60%
	Arc Start	HF
	Power Factor	0.93 cosΦ
	Protection Grade	IP21S
	Dimensions	371155295mm
	Net Weight	7.5KG

FEATURES:

1.Apply MOSFET switching power supply and PWM technology,energy-efficient and low noise.

2.Post-flow setting provides optimum shielding based on welding amperage without waste.

3. HF start circuit ensure high success rate in arc striking.

4.Automatic over-voltage and over-current protection as well as high temperature shutdown function.

5.Smooth arc and stable welding performance;ideal for welding mild steel,copper and titanium, etc.

6.Rugged package and compact design makes it easy to take TIG welding capability where it's needed.

7.Supplied complete with TIG torch,earth clamp,welding cable,face mask and welding brush.

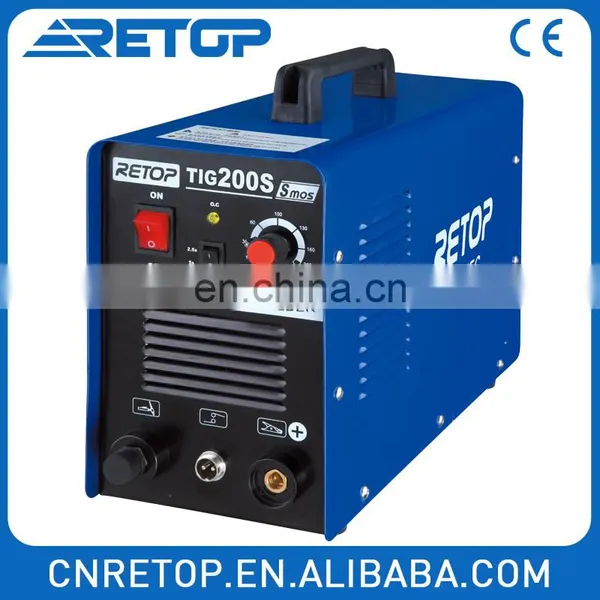

ITEM	UNIT	TIG-160S	TIG-180S	TIG-200S	TIG-250S
Input power voltage	V	AC230V	AC230V	AC230V	AC230V
Input power frequency	HZ	50/60	50/60	50/60	50/60
Rated input capacity	KVA	3.3	3.9	4.6	6.8
Output current range(TIG)	A	140	160	180	240
No-load voltage	V	42	42	42	42
Arc start		HF	HF	HF	HF
Power factor	cosΦ	0.93	0.93	0.93	0.93
Rated duty cycle	%	60	60	60	60
Protection Grade		IP21S	IP21S	IP21S	IP21S
Dimensions	mm	371x155x295	371x155x295	371x155x295	500x210x360
Weight	kg	7.5	7.8	8.0	13.5

PICTURES:

ACCESSORIES:


4m TIG Torch	1.2m Earth Clamp	Mask and brush

PRODUCTS RECOMMENDED:


TIG-200A	TIG-200P

PACKAGE:

CERTIFICATIONS:

COMPANY INFORMATION:

Taizhou Retop Mechanical & Electrical Co., Ltd. was established in 2011 and is located in Wenling, Zhejiang Province. We are dedicated to designing, testing and manufacturing a full line of welding and cutting products that are with industrial quality and easy to use. Whether you're in production, farming, maintenance, auto repair, or a do-it-yourselfer, we have a product that fits your needs.

With advanced technology and manufacturing equipment, we provide high-quality products and superior services for our customers. We also offer customers the flexibilities in product design and construction, coupled with superior services before and after sale. With our dedicated commitment to customer services, you'll find that we're easy to contact, easy to work with and easy to get information from - we're here to help you.

Our passion is to improve existing products and to develop new applications that benefit our customers and meet their constantly changing needs. We continue to make progress by implementing a philosophy that stresses quality in all of our operations.

We hope you will stay a while at our website. Please view our product offerings and get acquainted with us.

Main products:AC Welder,DC Inverter Welder,Tig Welder,Mig Welder,Plasma Cutter,Battery Charger

Main market: Domestic Market, Eastern Europe, Southeast Asia, South Asia, Mid East...

WORKSHOP:

SAMPLE ROOM:

EXHIBITION:

CONTACT INFO:
Contact Person:	Cherry
Phone:	86-15728001585
Tel:	86-0576-86489638-809
Fax:	86-0576-86489635
Website:	cnretop.en.china.cn
Address:	Zeguo Wenling, Zhejiang Province, P.R.China
