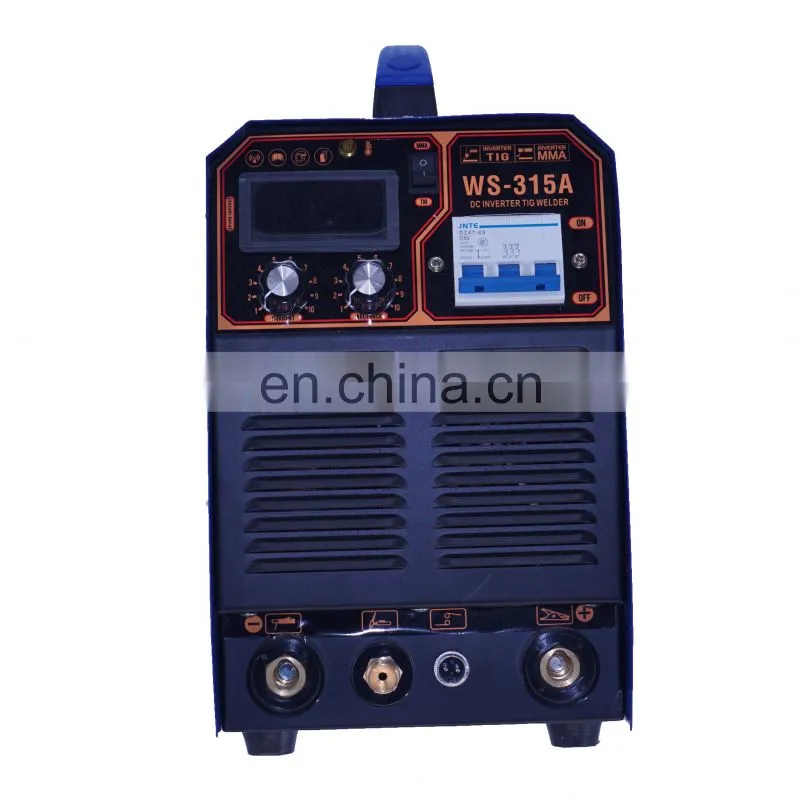

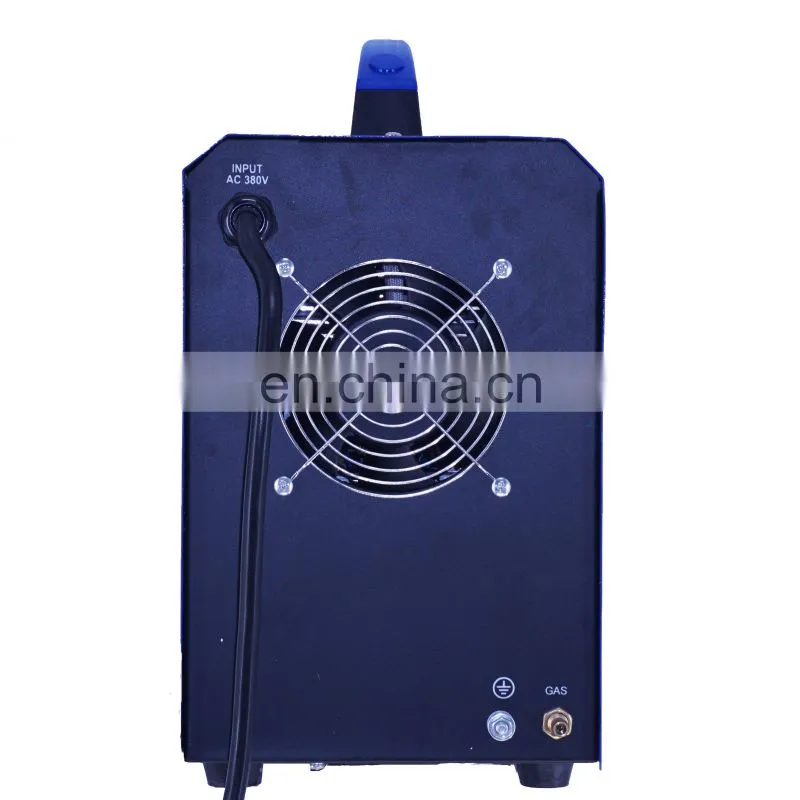

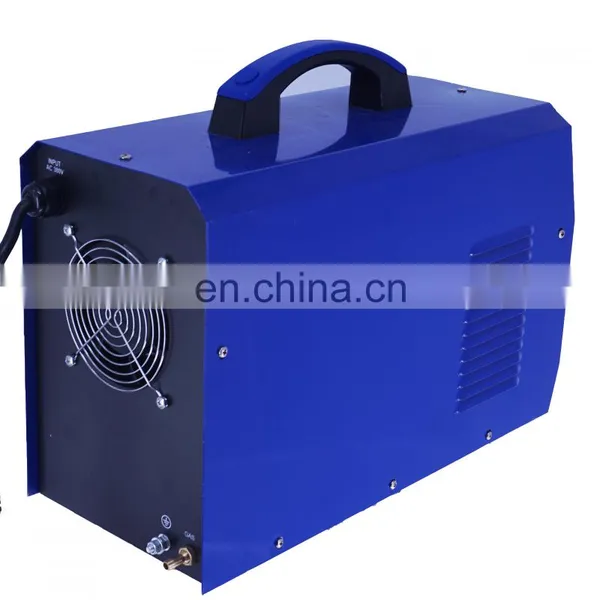

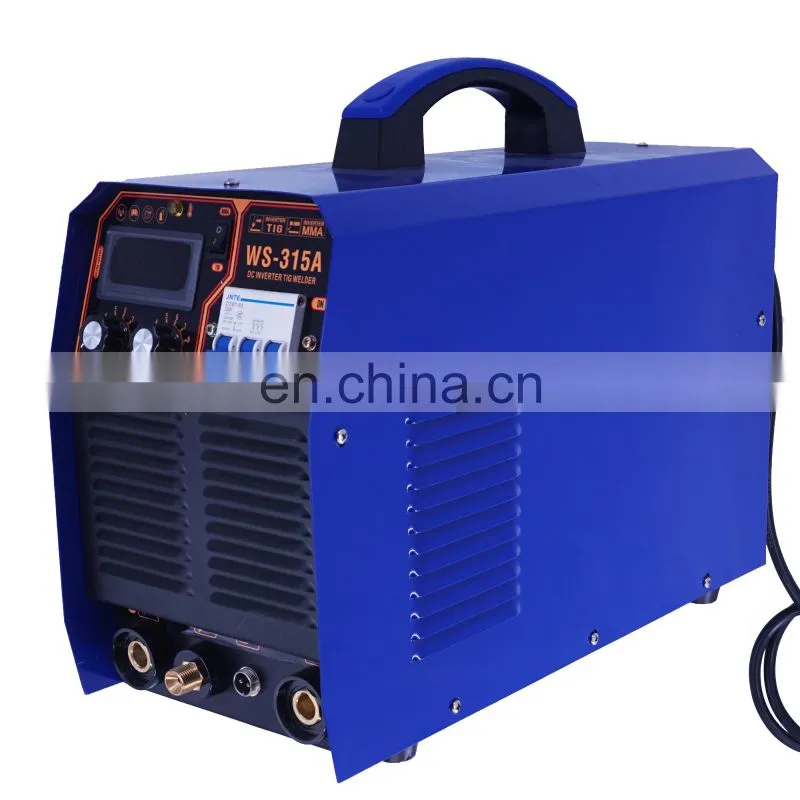

WS-315 380V TIG MMA Mosfet Welding Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2 in 1 Tig Mma dc Tig-200 Igbt Welding MachineNegotiableMOQ: 1 -
Digital Welding Machine Welder Equipment MMA Welders Machinery Repair Shops VIET NAM Pakistan Mexico Online Support RUSSIANegotiableMOQ: 1
-
Best Welder ZX7-250BSP 250AMP Reverse Parkside Arc WelderNegotiableMOQ: 1
-
Best Welder ZX7-250BSP 250AMP Reverse Parkside Arc WelderNegotiableMOQ: 1
-
Inverter 160 Arc Welding Machine for Stainless SteelNegotiableMOQ: 1
Product Description

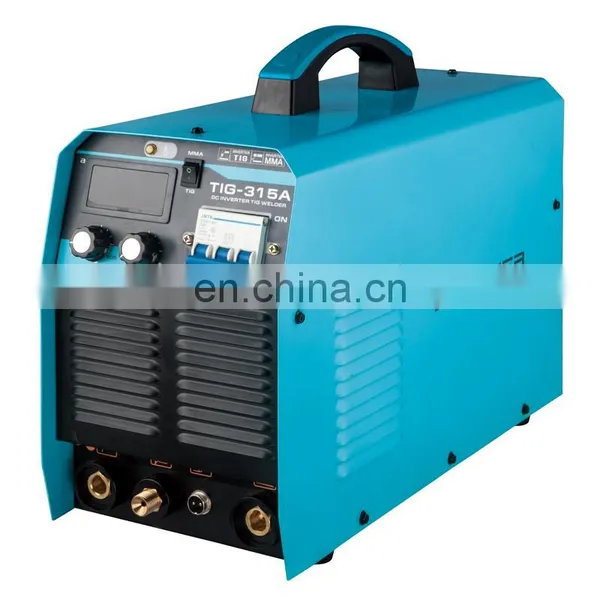

BLADE SERIES TIG-315/400A
Automatic over-voltage and over-current protection.
Main Features
(1) Apply MOSFET switching power supply and PWM technology,energy-efficient and low noise.
(2)TIG/MMA function in one machine.
(3) Superior arc performance and control,low cost and easy operation.
(4) Automatic over-voltage and over-current protection.
(5)Simple torch connections and quick changes between TIG and MMA welding.
(6) Hight strength case construction for industrial applications.
ITEM |
UNIT |
TIG-315A |
TIG-400A |
Input Power Voltage |
V |
AC400V |
AC400V |
Input Power Frequency |
Hz |
50/60 |
50/60 |
Rated Input Capacity |
KVA |
9 |
14.5 |
Output Current Range(TIG)(A) |
A |
10-280 |
10-380 |
Output Current Range(TIG)(A) |
A |
10-240 |
10-340 |
No-load Voltage |
V |
54 |
56 |
Rated Duty Cycle |
% |
60 |
60 |
Arc Start |
HF |
HF |
|
Power Factor |
cosΦ |
0.93 |
0.93 |
Protection Grade |
IP21S |
IP21S |
|
Dimensions |
mm |
240*140*270mm |
580*334*480mm |
Weight |
Kg |
17 |
24 |
Related products
ARMOUR-165
Hot selling product
MMA-200
Patent product
WOLF-205PRO
Digital products
Company Introduction
Certifications
Exhibition
Action now
Why choose Retop?
a. We are welding machine MANUFACTURER, so we can offer better price and after-sale service and shorter delivery date.
b. We use all new components,mosfet tube, diode, capacitor and so on imported components.
c. We adopt IGBT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of
repairing, we just need to change the bad pcb board.
d. We provide Warranty period of 1 year for all our items
a. We are welding machine MANUFACTURER, so we can offer better price and after-sale service and shorter delivery date.
b. We use all new components,mosfet tube, diode, capacitor and so on imported components.
c. We adopt IGBT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of
repairing, we just need to change the bad pcb board.
d. We provide Warranty period of 1 year for all our items
