Product Description

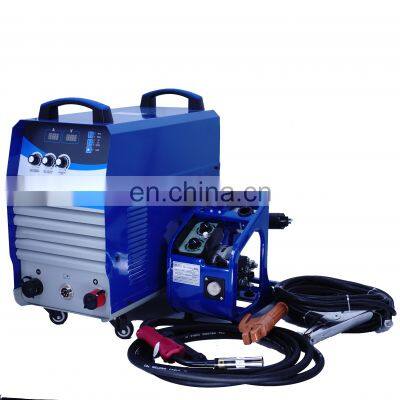

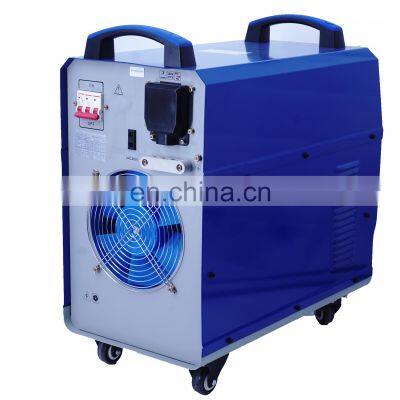

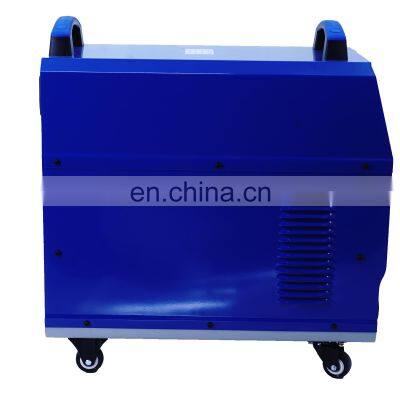

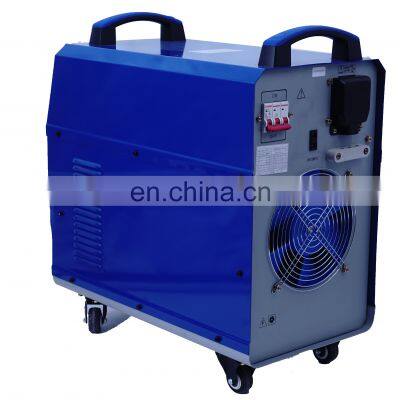

SEPARATED SERIES MIG-280/350/500

Wide range of working material,such as low carbon steel,low ally steel,etc.

Main Features

(1)Double IGBT Module technology and PWM control,high quantity and superior performances.

(2)Digital display,accurate current control,stable arc transition,and excellent welding characteristics.

(3)Adjustable wire feeding speed,tip ball removing and electronic induction regulating.

(4)Effective spatter control,improved penetration and better welding effect.Thermal overload protection.

(5)Separated welder and the wire feeder;suitable for welding at high placesor special position.

(6)Wide range of working material,such as low carbon steel,low ally steel,etc.
ITEM
UNIT
MIG-280
MIG-350
MIG-500
Input Power Voltage
V
AC400V
AC400V
AC400V
 Input Power Frequency
Hz
50/60
50/60
50/60
 Rated Input Capacity
KVA
9.4
14
25
Output Current Range
A
50-270
50-350
50-500
load Voltage
V
16.5-27.5
16.5-31.5
16.5-39
Rated Duty Cycle
%
60
60
60
Wire feed speed
M/min
3-15
3-15
3-15
Gas flow
L/min
15-20
15-20
15-20
Dimensions
mm
500*235*400
500*235*400
500*270*450
Weight
Kg
18
20
25
Related products

CUT 100A

Hot selling product

TIG 315A

Patent product

MMA 500A

Digital products
Company Introduction
Certifications
Exhibition
Action now
Why choose Retop?
a. We are welding machine MANUFACTURER, so we can offer better price and after-sale service and shorter delivery date.

b. We use all new components,mosfet tube, diode, capacitor and so on imported components.

c. We adopt IGBT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of
repairing, we just need to change the bad pcb board.

d. We provide Warranty period of 1 year for all our items
