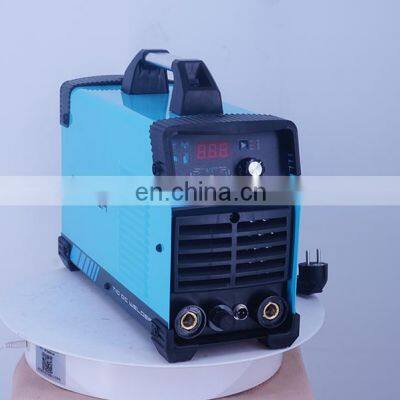

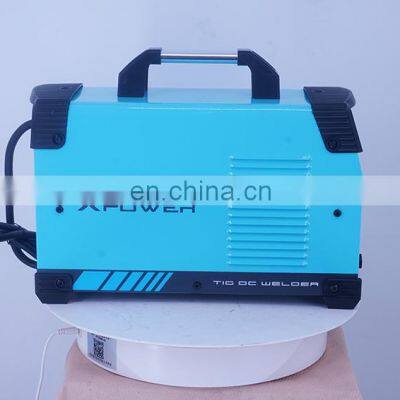

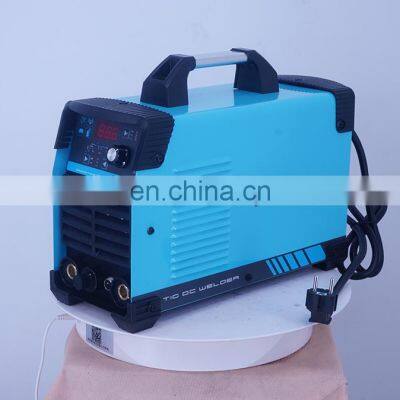

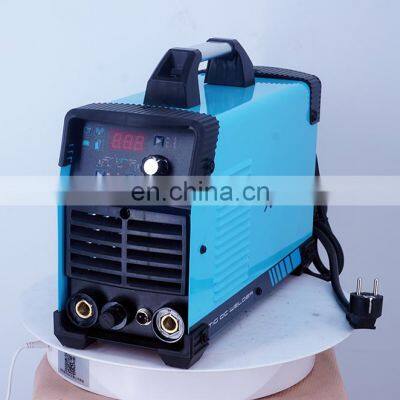

tig 200amp tig pulse ac dc

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Technical Specifications

ITEM	TIG-180P	TIG-200P
Input Power Voltage(V)	AC230V±10%	AC230V±10%
Input Power Frequency(Hz)	50/60	50/60
Input Current(A)	26	41
Rated Input Capacity(kva)	6	9.4
Output Current Range(TIG)(A)	10-180	10-200
Output Current Range(MMA)(A)	10-160	10-180
Post Slop(S)	0-10	0-10
Arc Starting	HF	HF
No-load voltage(V)	60	60
Rated Duty Cycle 35%	180	200
Rated Duty Cycle 60%	138	153
Rated Duty Cycle 100%	106	118
Electrode Diameter (mm)	1.5-3.25	1.5-4.0
Efficiency(%)	85	85
Protection Grade	IP22S	IP22S
Insulation Class	F	F
Dimensions(mm)	440210360	440210360
Weight(Kg)	6.5	8.3

Company Introduction

Certifications

Exhibition

Action now

Why choose Retop?
a. We are welding machine MANUFACTURER, so we can offer better price and after-sale service and shorter delivery date.

b. We use all new components,mosfet tube, diode, capacitor and so on imported components.

c. We adopt IGBT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of
repairing, we just need to change the bad pcb board.

d. We provide Warranty period of 1 year for all our items
