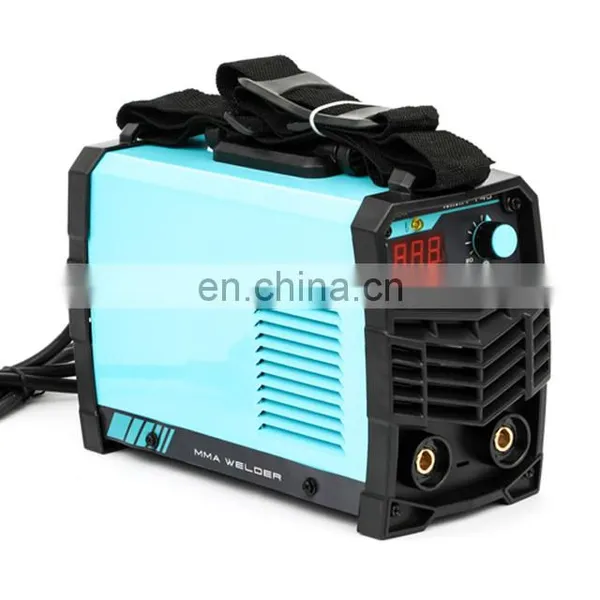

Little Spatter Light Mini Shoulder Strap Mma Welding Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ZX7-400 Saldatrice a Filo Continuo 400 Ampere Mosfet Mma Arc WelderNegotiableMOQ: 1 -
Dc Motor Arc Mma Jasic Inverter Welder Zx7-120 Inverter IGBT Welding Machine 200 a Small Size Alloy Steel 50/60 HZ Provided 220VNegotiableMOQ: 1
-
Electric Industrial Igbt 500 Amp Mma Arc Welder ZX7-500NegotiableMOQ: 1
-
110v/220v Maquina De Soldar Arc Welding Machine Wholesale Welding Material IGBT,MMA Welders DC Motor,dc MOTOR 1 Year,1 Year 0.93NegotiableMOQ: 1
-
Arc Igbt Inverter Welding Pcb Card for Sale Welding Material IGBT,MMA Welders DC Motor,dc MOTOR 1 Year,1 Year Customized NewNegotiableMOQ: 1
Product Description
Features
1. Single board IGBT technology, energy-efficient and low noise.
2. Easy arc ignition, litter spatter and excellent welding performance.
3. Auto adaptive arc force minimizes electrodes sticking in the puddle.
4. Without compromising arc stability or increased spatter.
5. Safety protection against over current, over voltage and over heat.
6. Small and light, but still powerful.
7. Suitable for welding all kinds of acid and basic electrodes.
8. Compete with electrode holder, earth clamp, face mask, hammer.
2. Easy arc ignition, litter spatter and excellent welding performance.
3. Auto adaptive arc force minimizes electrodes sticking in the puddle.
4. Without compromising arc stability or increased spatter.
5. Safety protection against over current, over voltage and over heat.
6. Small and light, but still powerful.
7. Suitable for welding all kinds of acid and basic electrodes.
8. Compete with electrode holder, earth clamp, face mask, hammer.

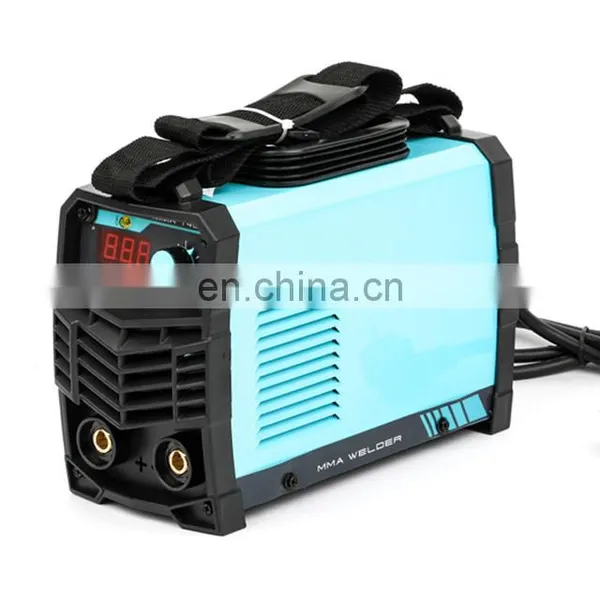

Little spatter light mini shoulder strap mma welding machine
Technical Specifications
ARMITEM |
UNIT |
ARMOUR-105 |
ARMOUR-125 |
ARMOUR-145 |
ARMOUR-165 |
ARMOUR-185 |
ARMOUR-205 |
Input Power Voltage |
V |
AC230V±10% |
AC230V±10% |
AC230V±10% |
AC230V±10% |
AC230V±10% |
AC230V±10% |
Input Power Frequency |
Hz |
50/60 |
50/60 |
50/60 |
50/60 |
50/60 |
50/60 |
Rated Input Capacity |
KVA |
3 |
3.8 |
4.5 |
5.4 |
6.2 |
7.1 |
Output Current Range |
A |
20-100 |
20-120 |
20-140 |
20-160 |
20-180 |
20-200 |
No-load Voltage |
V |
62 |
62 |
60 |
60 |
60 |
60 |
Rated Duty Cycle |
% |
40 |
40 |
40 |
40 |
40 |
40 |
Power Factor |
cosΦ |
0.93 |
0.93 |
0.93 |
0.93 |
0.93 |
0.93 |
Protection Grade |
IP21S |
IP21S |
IP21S |
IP21S |
IP21S |
IP21S |
|
Dimensions |
MM |
265*120*200 |
285*120*200 |
285*120*200 |
285*120*200 |
286*102*155 |
286*102*155 |
weight |
Kg |
2 |
2.45 |
2.65 |
2.75 |
3 |
3.25 |
Related products
Company Introduction
Certifications
Exhibition
Action now
Why choose Retop?
a. We are welding machine MANUFACTURER, so we can offer better price and after-sale service and shorter delivery date.
b. We use all new components,mosfet tube, diode, capacitor and so on imported components.
c. We adopt IGBT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of
repairing, we just need to change the bad pcb board.
d. We provide Warranty period of 1 year for all our items
a. We are welding machine MANUFACTURER, so we can offer better price and after-sale service and shorter delivery date.
b. We use all new components,mosfet tube, diode, capacitor and so on imported components.
c. We adopt IGBT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of
repairing, we just need to change the bad pcb board.
d. We provide Warranty period of 1 year for all our items
