Dual Pulse ac dc 250 Tig Welding Machine for Aluminium Weld
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HF Start GTAW SMAW Other Aluminium Welding Equipment With Double PulseNegotiableMOQ: 1 -
Mma Arc Invert Mini Arc Welding Machine With Wholesale Price ListNegotiableMOQ: 1
-
Retop Mquina de Soldadura Mesin Las Mma Welder 200ANegotiableMOQ: 1
-
Soldadora Multiproceso 220vlt Inverter 110v Mini Welding MachineNegotiableMOQ: 1
-
Mquina de Solda Inversora Star Weld Mini 300a Mitsushi Portable Welding MachineNegotiableMOQ: 1
Product Description
Features
1. Digital control, MCU technology, automatic parameter saving, IGBT inverter technology.
2. High frequency to guarantee lighter and smaller welder with higher efficiency.
3. Multi-function design wo meet various welding demands. It is suitable for DC TIG welding, MMA welding, spot welding, pulse TIG welding, etc.
4. Simple-to-use operator interface.
5. Less spatter, stable arc and good shaping.
6. Compete with TIG torch, electrode holder, earth clamp, face mask, hammer.
2. High frequency to guarantee lighter and smaller welder with higher efficiency.
3. Multi-function design wo meet various welding demands. It is suitable for DC TIG welding, MMA welding, spot welding, pulse TIG welding, etc.
4. Simple-to-use operator interface.
5. Less spatter, stable arc and good shaping.
6. Compete with TIG torch, electrode holder, earth clamp, face mask, hammer.

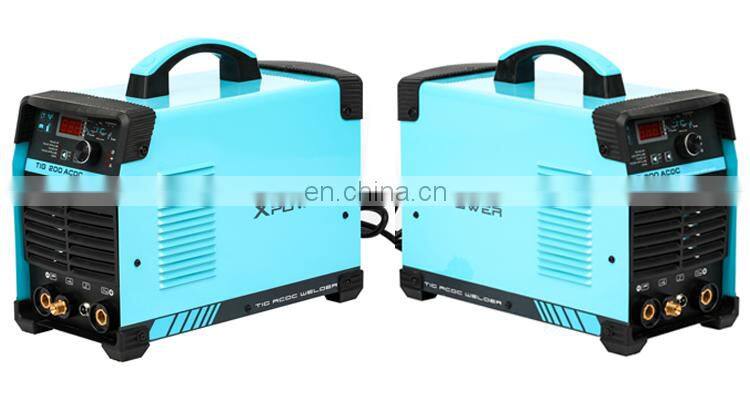

Dual pulse ac dc 250 tig welding machine for aluminium weld
Technical Specifications
ITEM | UNIT | TIG-200P AC/DC |
Input Power Voltage | V | AC230V±10% |
Input Power Frequency | Hz | 50/60 |
Input Current | A | 31 |
Rated Input Capacity | KVA | 7.1 |
Output Current Range (TIG) | A | 5-200 |
Output Current Range (MMA) | A | 10-160 |
Pre-flow Time | S | 0.1-10 |
Post-flow Time | S | 0.5-15 |
Down Slope | S | 0-15 |
Balance | 15-85 | |
Arc Starting | HF | |
AC Frequency | 20-250 | |
Pulse Frequency | 0.2-200 | |
No-load Voltage | V | 56 |
Rated Duty Cycle | 35% | 200 |
Rated Duty Cycle | 60% | 129 |
100% | 100 | |
Electrode Diameter | mm | 1.5-4.0 |
Efficiency | % | 85 |
Protection Grade | IP22S | |
Insulation Grade | B | |
Dimensions | MM | 440*210*360 |
weight | Kg | 11 |
Related products
Company Introduction
Certifications
Exhibition
Action now
Why choose Retop?
a. We are welding machine MANUFACTURER, so we can offer better price and after-sale service and shorter delivery date.
b. We use all new components,mosfet tube, diode, capacitor and so on imported components.
c. We adopt IGBT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of
repairing, we just need to change the bad pcb board.
d. We provide Warranty period of 1 year for all our items
a. We are welding machine MANUFACTURER, so we can offer better price and after-sale service and shorter delivery date.
b. We use all new components,mosfet tube, diode, capacitor and so on imported components.
c. We adopt IGBT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of
repairing, we just need to change the bad pcb board.
d. We provide Warranty period of 1 year for all our items
