Home > Products > Other Selling Products > arc inverter welding machine

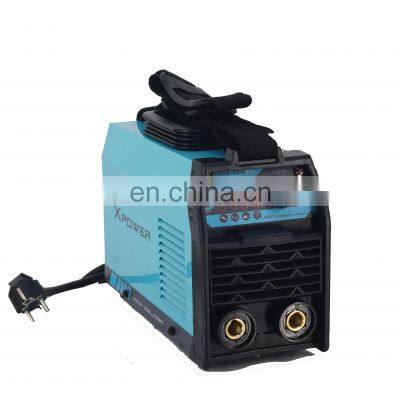

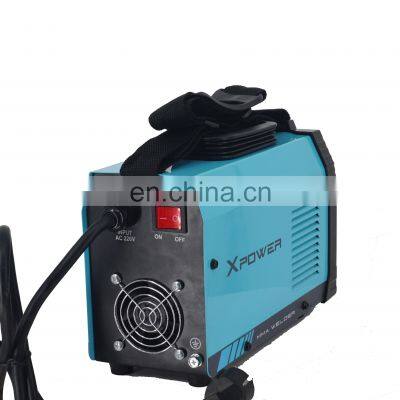

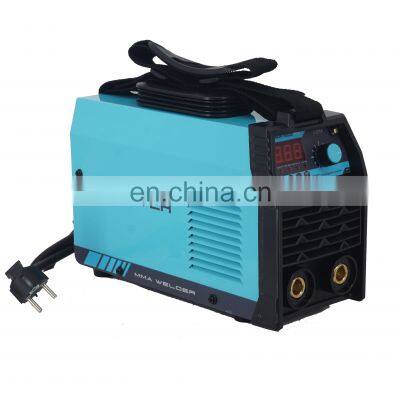

arc inverter welding machine
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
soldadoras mma arc 250 zx7 200
-
inverter welding machine with 120A/140A/160A/180A/200A
-
Best cheap portable mma proweld welding equipment
-
Smart electra welding machine 200 amp with digital display
-
Portable Electric MOSFET Inverter MMA 120 Mini DC ARC Welder
-
GREENCUT MMA200 - Soldador inverter turbo ventilado de corriente continua DC, 200A,
Product Description
Product Description
Features
1. Single board IGBT technology, energy-efficient and low noise.
2. Easy arc ignition, litter spatter and excellent welding performance.
3. Auto adaptive arc force minimizes electrodes sticking in the puddle.
4. Without compromising arc stability or increased spatter.
5. Safety protection against over current, over voltage and over heat.
6. Small and light, but still powerful.
7. Suitable for welding all kinds of acid and basic electrodes.
8. Compete with electrode holder, earth clamp, face mask, hammer.
2. Easy arc ignition, litter spatter and excellent welding performance.
3. Auto adaptive arc force minimizes electrodes sticking in the puddle.
4. Without compromising arc stability or increased spatter.
5. Safety protection against over current, over voltage and over heat.
6. Small and light, but still powerful.
7. Suitable for welding all kinds of acid and basic electrodes.
8. Compete with electrode holder, earth clamp, face mask, hammer.
Technical Specifications
ITEM | UNIT | WOLF-125PRO | WOLF-145PRO | WOLF-165PRO | WOLF-185PRO | WOLF-205PRO |
Input Power Voltage | V | AC230V±10% | AC230V±10% | AC230V±10% | AC230V±10% | AC230V±10% |
Input Power Frequency | Hz | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
Rated Input Capacity | KVA | 3.8 | 4.5 | 5.4 | 6.2 | 7.1 |
Output Current Range | A | 20-120 | 20-140 | 20-160 | 20-180 | 20-200 |
No-load Voltage | V | 62 | 60 | 60 | 60 | 60 |
Rated Duty Cycle | % | 40 | 40 | 40 | 40 | 40 |
Power Factor | cosΦ | 0.93 | 0.93 | 0.93 | 0.93 | 0.93 |
Protection Grade | IP21S | IP21S | IP21S | IP21S | IP21S | |
Dimensions | MM | 300*130*210 | 300*130*210 | 300*130*210 | 286*102*155 | 286*102*155 |
weight | Kg | 2.45 | 2.65 | 2.75 | 3 | 3.25 |
Related products
Company Introduction
Certifications
Exhibition
Action now
Why choose Retop?
a. We are welding machine MANUFACTURER, so we can offer better price and after-sale service and shorter delivery date.
b. We use all new components,mosfet tube, diode, capacitor and so on imported components.
c. We adopt IGBT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of
repairing, we just need to change the bad pcb board.
d. We provide Warranty period of 1 year for all our items
a. We are welding machine MANUFACTURER, so we can offer better price and after-sale service and shorter delivery date.
b. We use all new components,mosfet tube, diode, capacitor and so on imported components.
c. We adopt IGBT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of
repairing, we just need to change the bad pcb board.
d. We provide Warranty period of 1 year for all our items
Product Description
Features
1. Single board IGBT technology, energy-efficient and low noise.
2. Easy arc ignition, litter spatter and excellent welding performance.
3. Auto adaptive arc force minimizes electrodes sticking in the puddle.
4. Without compromising arc stability or increased spatter.
5. Safety protection against over current, over voltage and over heat.
6. Small and light, but still powerful.
7. Suitable for welding all kinds of acid and basic electrodes.
8. Compete with electrode holder, earth clamp, face mask, hammer.
2. Easy arc ignition, litter spatter and excellent welding performance.
3. Auto adaptive arc force minimizes electrodes sticking in the puddle.
4. Without compromising arc stability or increased spatter.
5. Safety protection against over current, over voltage and over heat.
6. Small and light, but still powerful.
7. Suitable for welding all kinds of acid and basic electrodes.
8. Compete with electrode holder, earth clamp, face mask, hammer.
Technical Specifications
ITEM | UNIT | WOLF-125PRO | WOLF-145PRO | WOLF-165PRO | WOLF-185PRO | WOLF-205PRO |
Input Power Voltage | V | AC230V±10% | AC230V±10% | AC230V±10% | AC230V±10% | AC230V±10% |
Input Power Frequency | Hz | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
Rated Input Capacity | KVA | 3.8 | 4.5 | 5.4 | 6.2 | 7.1 |
Output Current Range | A | 20-120 | 20-140 | 20-160 | 20-180 | 20-200 |
No-load Voltage | V | 62 | 60 | 60 | 60 | 60 |
Rated Duty Cycle | % | 40 | 40 | 40 | 40 | 40 |
Power Factor | cosΦ | 0.93 | 0.93 | 0.93 | 0.93 | 0.93 |
Protection Grade | IP21S | IP21S | IP21S | IP21S | IP21S | |
Dimensions | MM | 300*130*210 | 300*130*210 | 300*130*210 | 286*102*155 | 286*102*155 |
weight | Kg | 2.45 | 2.65 | 2.75 | 3 | 3.25 |
Related products
Company Introduction
Certifications
Exhibition
Action now
Why choose Retop?
a. We are welding machine MANUFACTURER, so we can offer better price and after-sale service and shorter delivery date.
b. We use all new components,mosfet tube, diode, capacitor and so on imported components.
c. We adopt IGBT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of
repairing, we just need to change the bad pcb board.
d. We provide Warranty period of 1 year for all our items
a. We are welding machine MANUFACTURER, so we can offer better price and after-sale service and shorter delivery date.
b. We use all new components,mosfet tube, diode, capacitor and so on imported components.
c. We adopt IGBT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of
repairing, we just need to change the bad pcb board.
d. We provide Warranty period of 1 year for all our items
