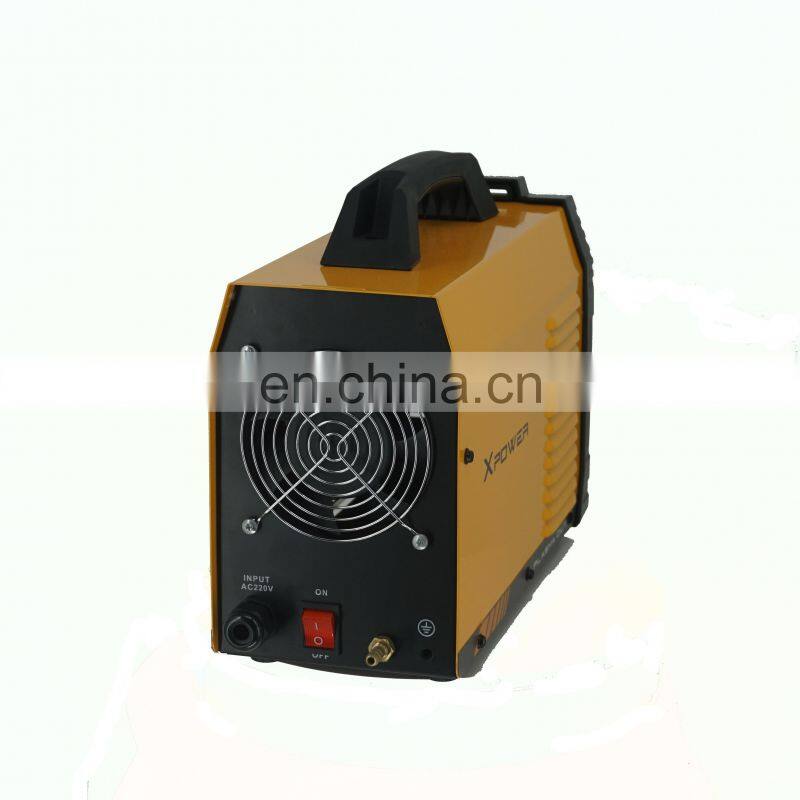

Inverter Plasma Cutting Machine

CUT-40

	ITEM	CUT-40
	Input Power Voltage (V)	AC230V
	Input Power Frequency (Hz)	50/60
	Rated Input Capacity (KVA)	4.8
	Output Current Range (A)	40
	No-Load Voltage (V)	236
	Rated Duty Cycle (%)	60
	Arc Start	Touch
	Power Factor (COS)	0.93
	Gas Pressure(mpa)	0.2-0.4
	Insulation Grade	B
	Protection Grade	IP21S
	Dimensions (mm)	410*155*300
	weight(kg)	8.3

FEATURES:

*MOSFET inverter and PWM technology, energy-  efficient, power frequency and no noise.

*Use compressed air as cutting gas source, cost-effective.

*Air pressure and cutting current adjustable.

*Easy operation, narrow cutting seams, smooth incision and less deformation.

*Circuit protection against over current, over voltage and over heat.

*Suitable for cutting carbon steel,stainless steel, alloy steel, copper and aluminum,etc.

 Widely used in iron structure construction.

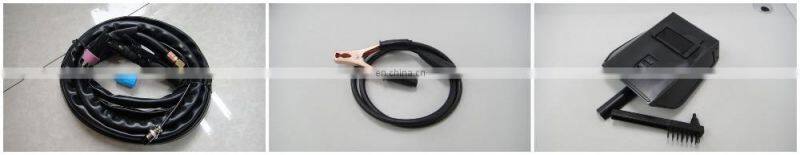

*Supplied complete with CUT torch, air regulator, pressure gauge, earth clamp,

 welding cable, face mask and welding brush.
