Tig Welding Machine Tig Pulse Ac Dc 200p High Frequency Aluminum Welding Manipulator 1 YEAR Building Material Shops

Name: Tig Welding Machine Tig Pulse Ac Dc 200p High Frequency Aluminum Welding Manipulator 1 YEAR Building Material Shops
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

tig pulse ac dc 200p high frequency aluminum tig welding machine

Main Features

(1)Apply MOSFET switching power supply and PWM technology ,HF arc start,easy arc striking,energy-efficient and

low noise.

(2)Built-in pulsing functions give you greater control over thin materials.
(3)Thermal and voltage overload protection ensures long life of internal components.
(4)Compact size and lightweight,easy to carry.
(5)Applicable for welding various kinds of metals,such as stainless steel,alloy steel.
(6)Supplied complete with TIG torch,earth clamp,welding cable,face mask and welding brush.

ITEM	WSM-160	WSM-200	WSM-250
Input Power Voltage	AC230V	AC230V	AC230V
Input Power Frequency	50/60	50/60	50/60
Rated Input Capacity	3.7KVA	4.5KVA	5.8KVA
Output Current Range(TIG)	10-140A	10-160A	10-190A
Output Current Range(MMA)	10-120A	10-140A	10-160A
Base Current Range	10-140A	10-160A	10-190A
Pluse Frequency	0.5-200Hz	0.5-200Hz	0.5-200Hz
No-Load Voltage	56V	56V	56V
Rated Duty Cycle	60%	60%	60%
Downslope Time	0-5S	0-5S	0-5S
Arc Start	HF	HF	HF
Power Factor	0.93	0.93	0.93
Protection Grade	IP21S	IP21S	IP21S
Dimensions	410155300mm	410155300mm	410155300mm
Weight	7.7KG	19Kg	31Kg

ACCESSORIES:

4m TIG Torch Mask and brush 1.8m Electrode Holder 1.2m earth clamp

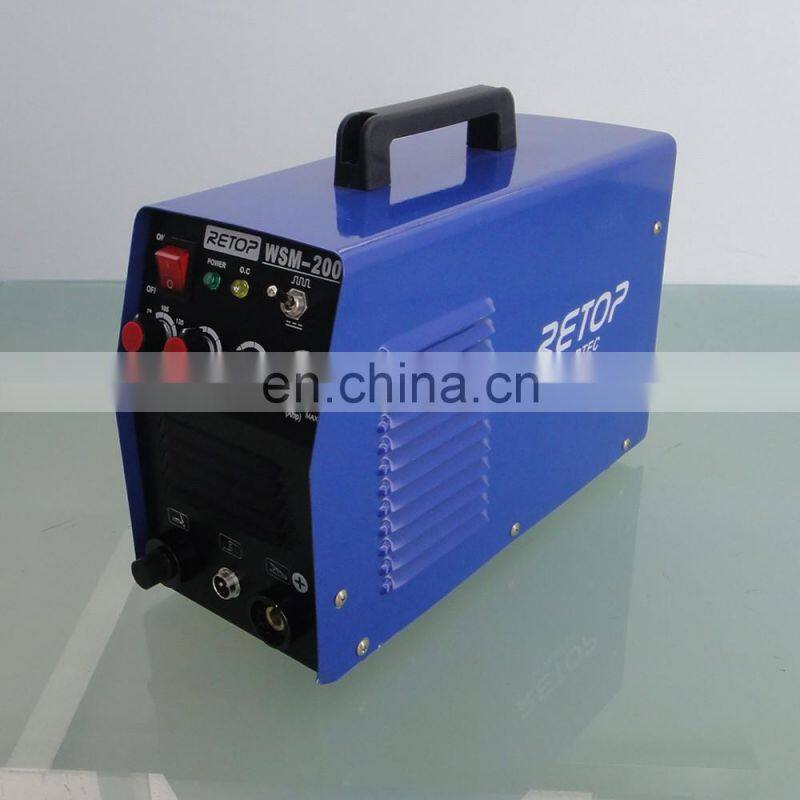

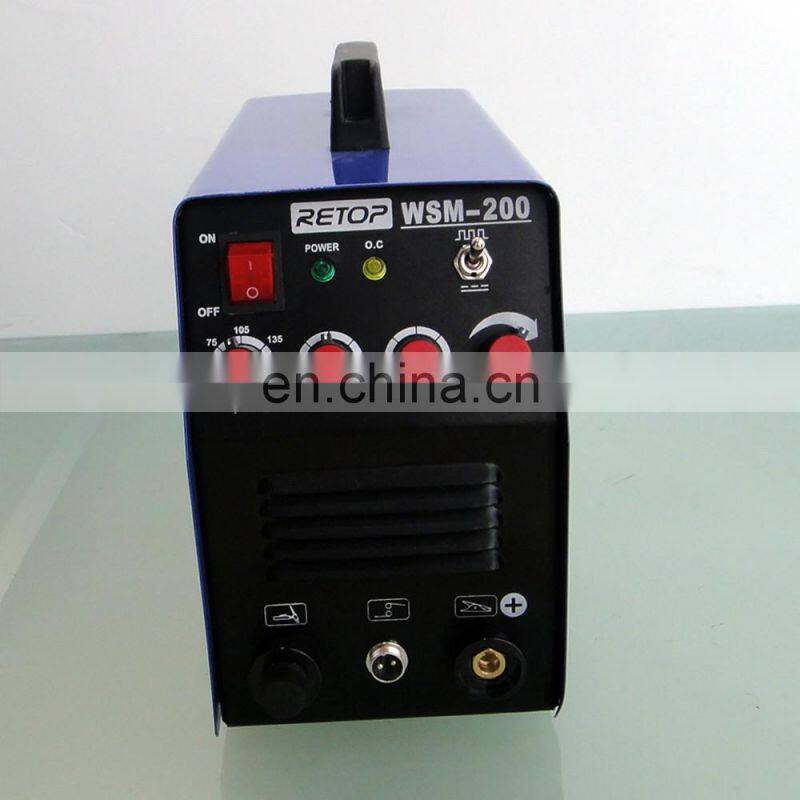

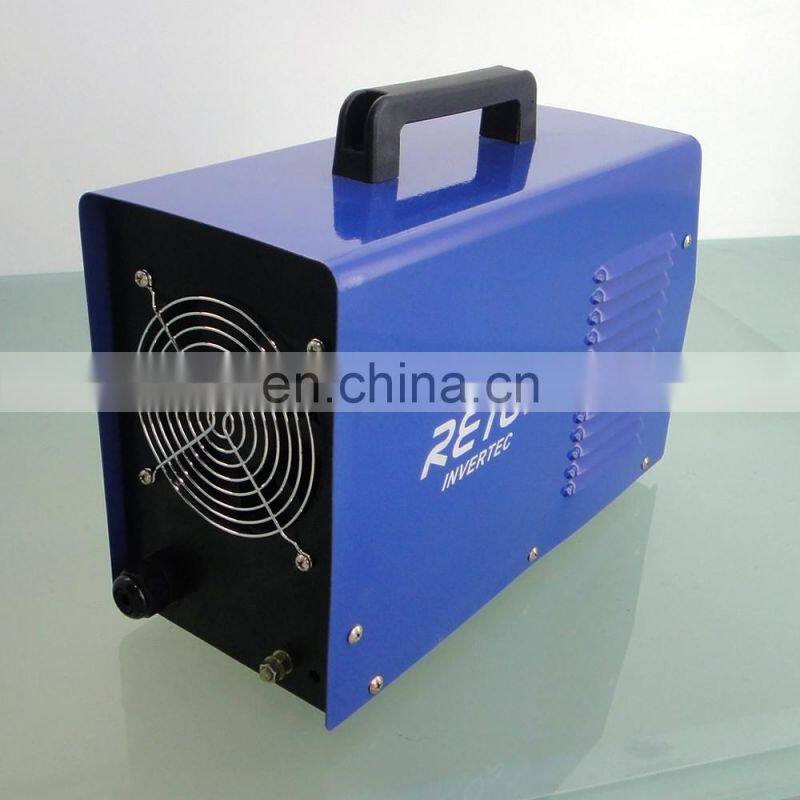

Detailed Image

Company Introduction

Certifications

Exhibition

FAQ

MOQ:

The different products with different MOQ. Contact us with more details.
If with stock, 1-5 sets could be acceptable as well.

Payment:

TT payment would be preferred: usually 30% deposit and the balance before shipment

Delivery time:

Within 20 days after confirming the payment

Sample Issue

Once price and order confirmed, we will be glad to send you the required samples for reference.

First time to use this kind of machine

There is an English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail /phone / online service.

If any problem with machine after receiving

24 hours to support by E-mail/calling
Free parts could be sent to you in machine warranty period.

Why choose us?

We are welding machine MANUFACTURER,so we can offer better price and after-sale service and shorter delivery date.
We use all new components,IGBT tube, diode,capacitor and so on imported components.
We adopt SMT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of repairing,we just need to change the bad pcb board.
We provide Warranty period of 1 to 2 years for all our items.

Action now

Why choose Retop?
a. We are welding machine MANUFACTURER, so we can offer better price and after-sale service and shorter delivery date.

b. We use all new components,mosfet tube, diode, capacitor and so on imported components.

c. We adopt IGBT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of
repairing, we just need to change the bad pcb board.

d. We provide Warranty period of 1 year for all our items
