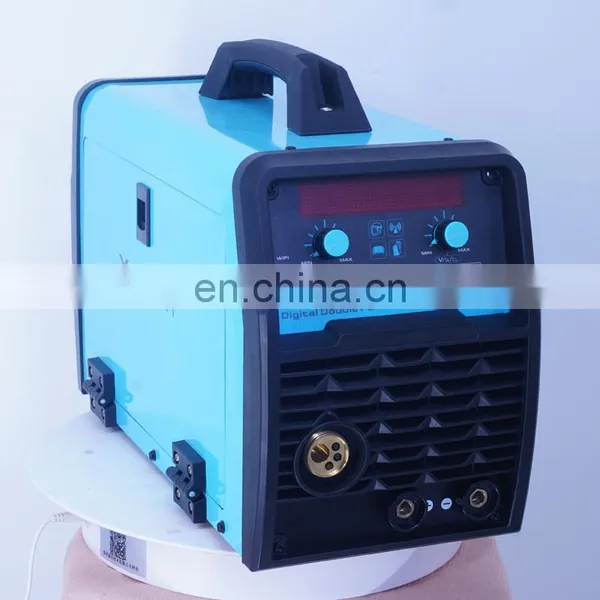

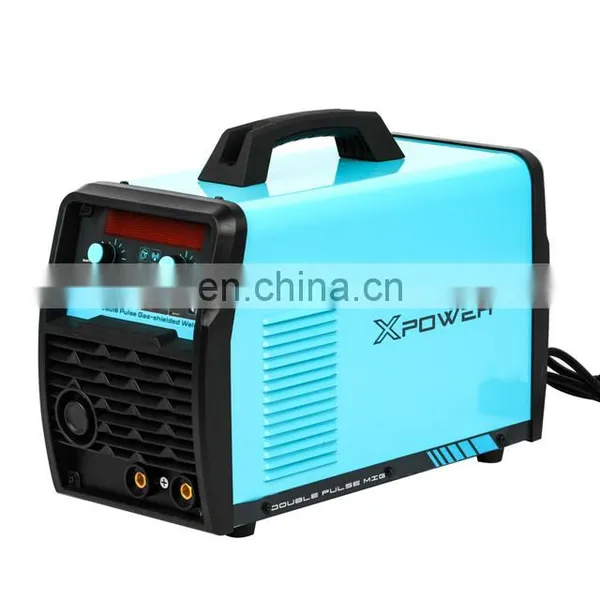

Dual Pulse 220V Mag Mma Mig Welding Machine for Aluminum Weld
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
MAG MMA Portable Inverter Mini Welding Machine Mig 130NegotiableMOQ: 1 -
RETOP Factory Price 3 in 1 Multi Functions Mig Welding MachineNegotiableMOQ: 1
-
MIG-270I Cheap Portable Inverter Rilon Mig 350 WelderNegotiableMOQ: 1
-
MIG 165 Portable Single Phase Mag Welder dc Inverter Welding Machine Price TransformerNegotiableMOQ: 1
-
200/250 Mma Inverter Welder Portable Arc WelderNegotiableMOQ: 1
Product Description
Features
1. The integration of digital control with MCU technology to achieve intelligent synergy.
2. Advanced IGBT technology, compact design, lightweight and energy saving.
3. Digital display, precisely controlled welding current, stable welding process and excellent welding characteristics.
4. Automatic over-current, over-heat and over-voltage protection.
5. Integrated design with a wire feeder built-in. Facilitate mobility operations.
6. Intelligent setting to make the usage of MIG welding much easier.
7. Welding current and voltage can be set automatically when welding wire is chosen, while manual setting is also applicable.
8. Can be used with gas or without gas.
9. Multi-function design to meet various welding demands. It is suitable for single pulse MIG welding, double pulse MIG welding, MIG/MAG welding, MMA welding, etc.
10. Wide range of working material, such as Al Si, Al Mg, stainless steel, mild steel, etc.
Technical Specifications
ITEM |
UNIT |
MIG-200WDP |
Input Power Voltage |
V |
AC230V±10% |
Input Power Frequency |
Hz |
50/60 |
Rated Input Capacity |
KVA |
9.4 |
Output Current Range (MIG) |
A |
60-200 |
Output Current Range (MMA) |
A |
20-180 |
Wire Speed |
M/min |
1.5-16 |
No-load Voltage |
V |
69 |
Duty Cycle
|
35% |
200 |
Rated Duty Cycle |
60% |
153 |
100% |
118 |
|
Electrode & Wire Diameter |
mm |
1.5-4.0 0.6-1.0 |
Efficiency |
% |
85 |
Protection Grade |
IP22S |
|
Insulation Class |
F |
|
Dimensions |
MM |
500*215*340 |
weight |
Kg |
13.5 |
Related products
Company Introduction
Certifications
Exhibition
Action now
Why choose Retop?
a. We are welding machine MANUFACTURER, so we can offer better price and after-sale service and shorter delivery date.
b. We use all new components,mosfet tube, diode, capacitor and so on imported components.
c. We adopt IGBT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of
repairing, we just need to change the bad pcb board.
d. We provide Warranty period of 1 year for all our items
a. We are welding machine MANUFACTURER, so we can offer better price and after-sale service and shorter delivery date.
b. We use all new components,mosfet tube, diode, capacitor and so on imported components.
c. We adopt IGBT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of
repairing, we just need to change the bad pcb board.
d. We provide Warranty period of 1 year for all our items
