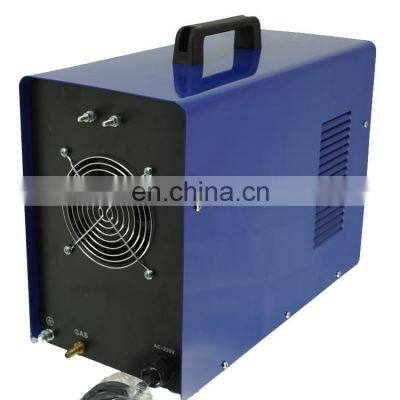

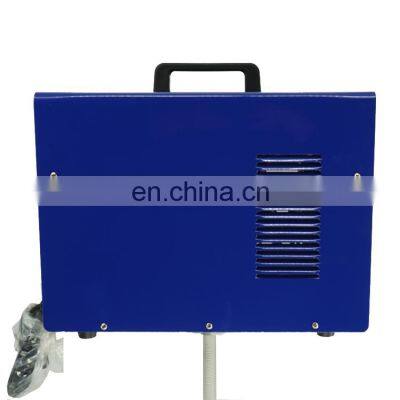

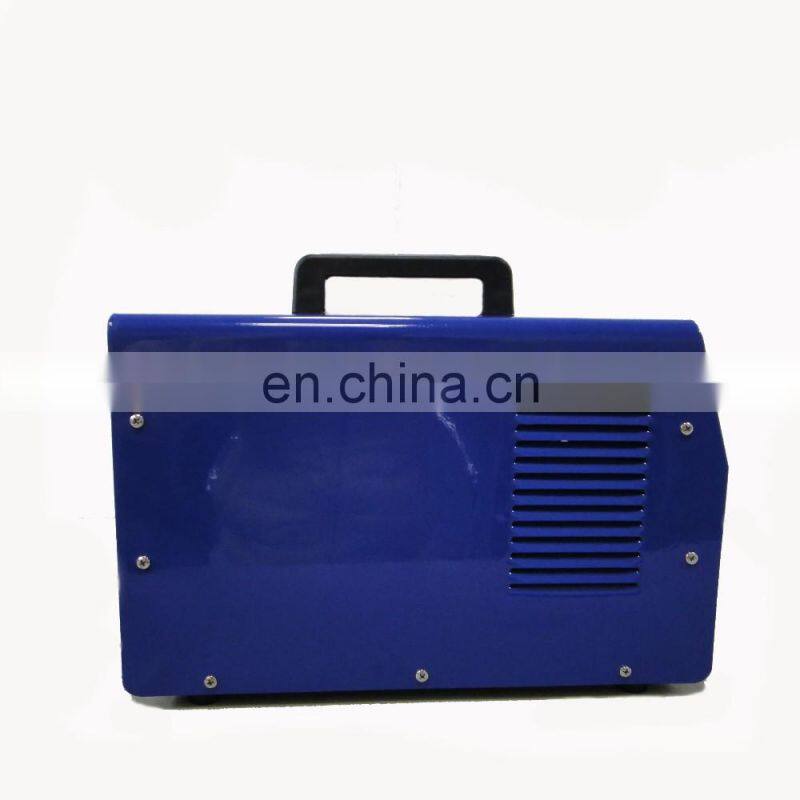

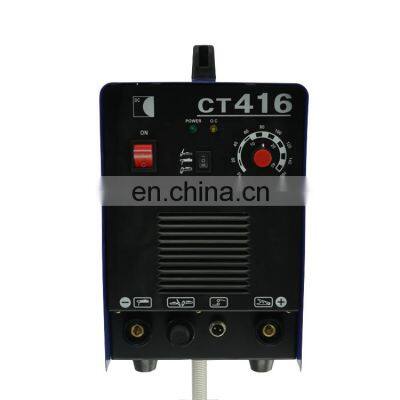

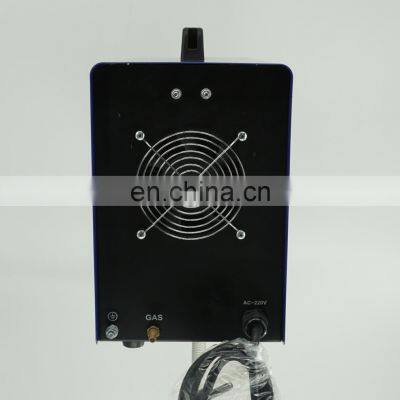

Mosfet Inverter Multi-function AC/DC Pulse TIG/MMA/CUT 3 Functions Welding Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CT312/CT416/CT520 220V CUT/MMA/TIG Portable Welding Machine 3 in 1NegotiableMOQ: 1 -
CUT-30P Portable Cheap Plasma Cutting MachineNegotiableMOQ: 1
-
Popular 110V/220V Plasma Cutting Machine Price CUT-40/50NegotiableMOQ: 1
-
High Frequency Welding Machine Inverter Cut Welder Service Manual Ct 312 Dc Mma TigNegotiableMOQ: 1
-
DC AIR PLASMACUTTERS CUT-50 Inverter Portable Air Mini Plasma Cutting MachineNegotiableMOQ: 1
Product Description
Key Features
1. MMA/ TIG/ MIG 3 functions in 1 machine.
2. small and portable to carry.
3. ideal for metal material processing, such as steel, alloy steel, copper, and aluminum.
4. advanced MOSFET and PWM technology.
5. automatic hight temperature shutdown.
6. complete accessories: TIG torch, stick electrode holder, earth clamp, welding cable, face mask and welding brush.
7. ingenious circuit, sime structure, safe and reliable.
ITEM | UNIT | CT-312 | CT-416 | CT-520 |
Input Power Voltage | V | AC230V | AC230V | AC230V |
Input Power Frequency | A | 50/60 | 50/60 | 50/60 |
Rated Input Capacity | KVA | 3.5 | 4.5 | 5.5 |
Output Current Range(MMA) | A | 10-110 | 10-140 | 10-160 |
Output Current Range(TIG) | A | 10-120 | 10-160 | 10-190 |
Output Current Range(CUT) | A | 10-30 | 10-40 | 10-50 |
No-load Voltage | V | 230 | 240 | 250 |
Rated Duty Cycle | % | 60 | 60 | 60 |
Arc Start | HF | HF | HF | |
Power Factor | COS | 0.93 | 0.93 | 0.93 |
Air Pressure | mpa | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 |
Protection Grade | IP21S | IP21S | IP21S | |
Dimensions | mm | 410*155*300 | 410*210*360 | 510*210*360 |
Weight | Kg | 8.6 | 12.7 | 17.8 |
ACCESSORIES:
Mask and Brush
1.8m Electrode Holder
1.2m Earth Clamp
