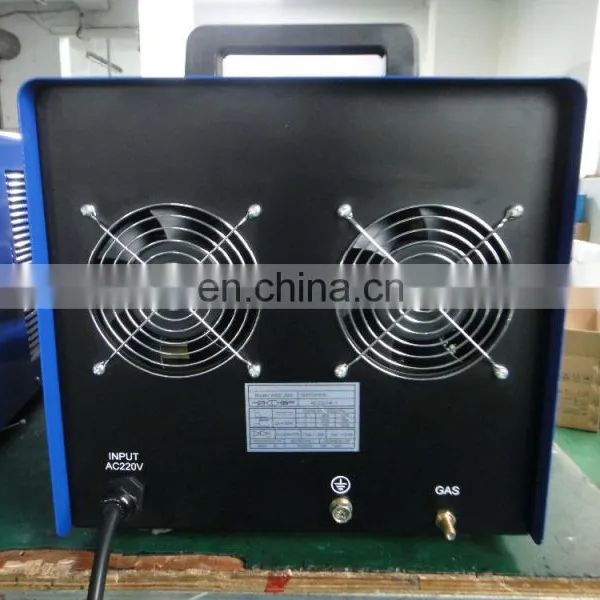

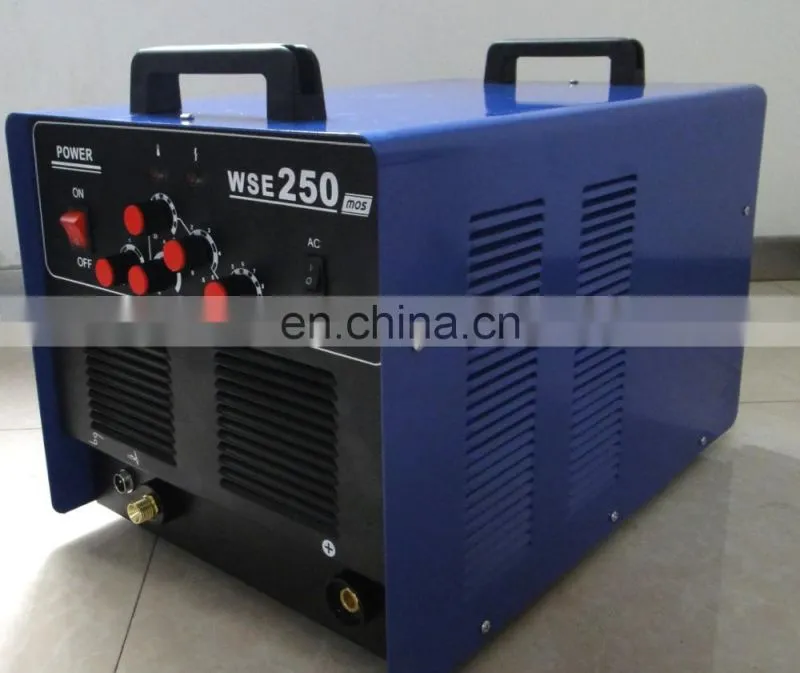

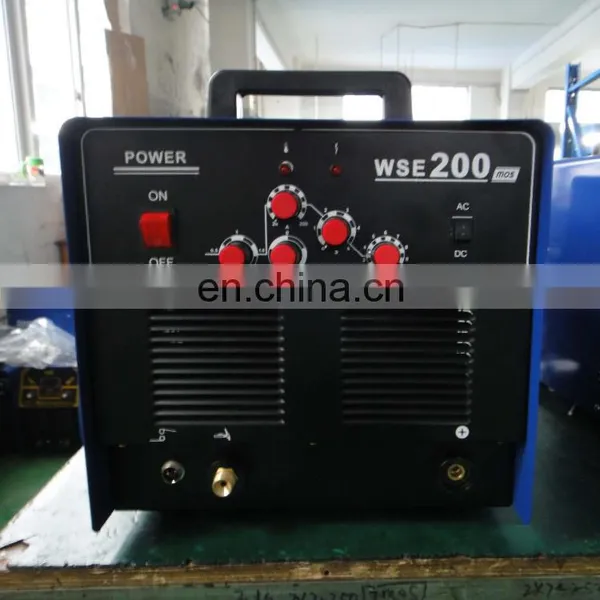

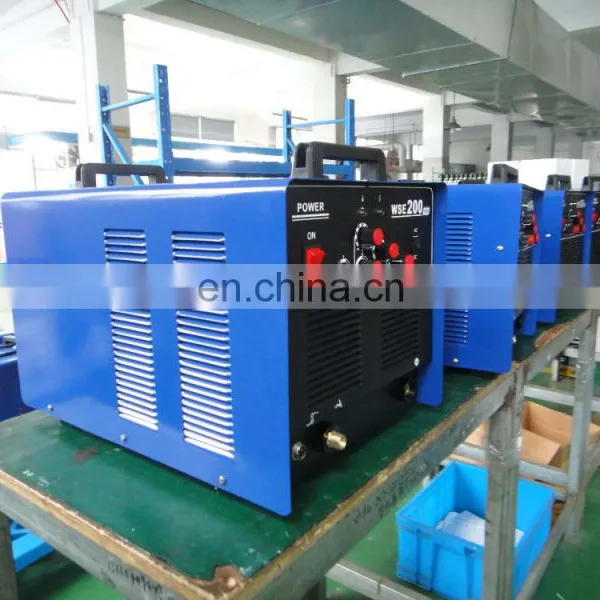

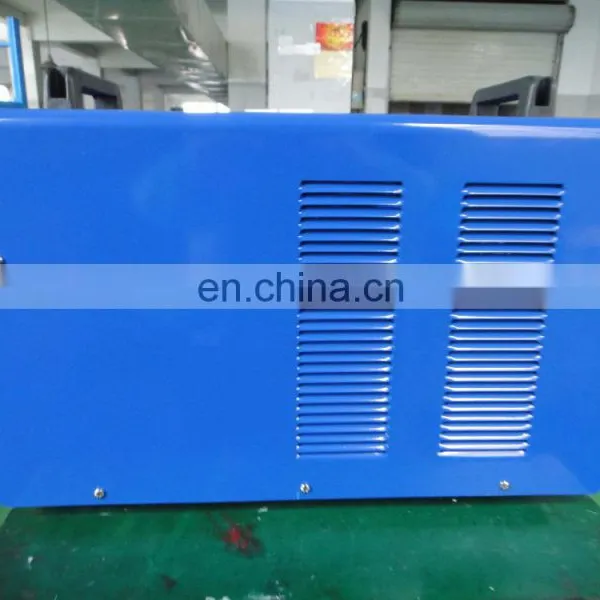

Help CenterWSE200 High Frequency Aluminum Tig Ac/dc Inverter Welder Welding Machine
Related Products
-
Over-protect MMA AC ARC Welder BX1 200C Welding MachineNegotiableMOQ: 1 -
CE Ac Dc Tig Welder Welding Machine Metal Chinese Fabrication AC/DC Wsme 250 315 590*345*485 50-60hz CE CCC CN;ZHE RETOP 315A 60NegotiableMOQ: 1
-
Portable Arc Welder AC Welding Machine Price Motor Brush Holder Engineers Available to Service Machinery Overseas 1 YEAR CE CCCNegotiableMOQ: 1
-
New Design MMA Series AC ARC Welder BX6-300 Chinese Welding MachineNegotiableMOQ: 1
-
Newest Hot Selling Best Price Inverter Welding Machine 110v TIG 250SNegotiableMOQ: 1
Main Features
(1)Apply MOSFET switching power supply and PWM technology ,energy-efficient and low noise.
(2)Both AC and DC TIG welding available,Mild arc ,easy wire filling and good shaping.
(3)Thermal and voltage overload protection ensures long life internal components.
(4)High-frequency arc starer boosts the current during starting to make striking an arc easier and increase productivity.
(5)Applicable for DC TIG welding of carbon steel, stainless steel,alloy steel,and other non-ferrous metals ,as well as AC TIG welding of aluminum and aluminum alloy products.
ITEM |
WSE-200 |
WSE-250 |
WSE-315 |
|
Input power voltage |
V |
AC230V |
AC230V |
AC230V |
Input power frequency |
Hz |
50/60 |
50/60 |
50/60 |
Rated input capacity |
KVA |
4.8 |
5.6 |
9.5 |
Output current range ( TIG) |
A |
10-170 |
10-190 |
10-270 |
Output current range ( MMA ) |
A |
10-140 |
10-160 |
10-230 |
No-load voltage |
V |
56 |
56 |
56 |
Rated duty cycle |
% |
60 |
60 |
60 |
Downslope time |
S |
0-5 |
0-5 |
0-5 |
AC balance control range |
% |
20-80 |
20-80 |
20-80 |
Arc start |
HF |
HF |
HF |
|
Power factor |
0.93 |
0.93 |
0.93 |
|
Protection grade |
IP21S |
IP21S |
IP21S |
|
Dimensions |
mm |
505*340*400 |
505*340*400 |
570*380*525 |
Weight |
kg |
18 |
19 |
31 |
MIG-250
TIG-200S
CUT-50
1.Q:Are you a factory or trading company?
A: We are a factory.
2.Q:Where is your factory located?
A: Our factory is in Wenling, Taizhou city, Zhejiang Province, China.30 mins from Luqiao Airport by car, 2.5 hours from Ningbo Airport by car, 4 hours from Shanghai Airport by car.
3.Q:What is the material of your products?
A: Taizhou Retop people are always paying great attentions to quality controlling from the beginning to the end.
4.Q:How about quality control in your factory?
A: Taizhou Retop people are always paying great attentions to quality controlling from the beginning to the end.
5.Q:How about guarantee?
A: It's within 1 year after goods is discharged in the destination.
