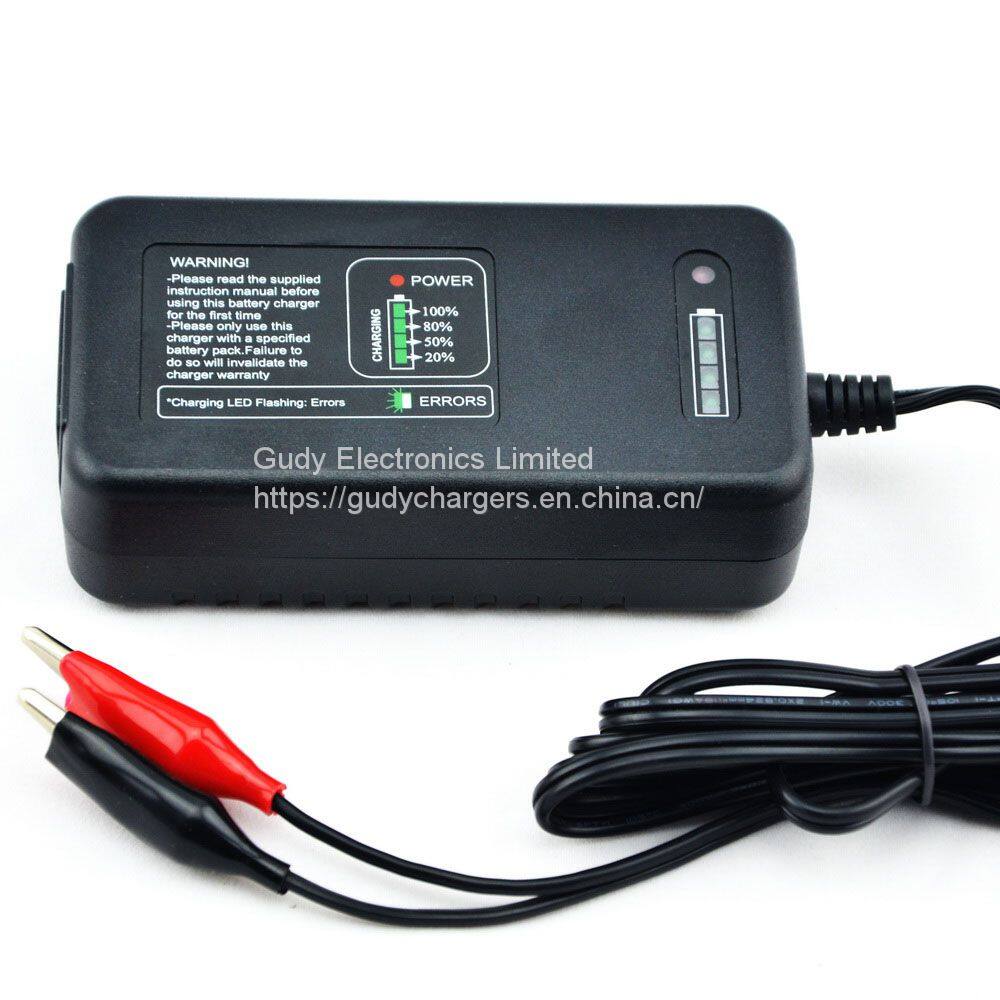

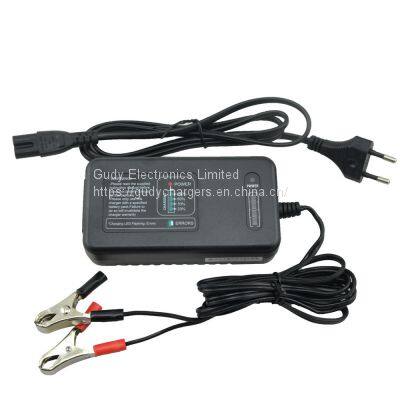

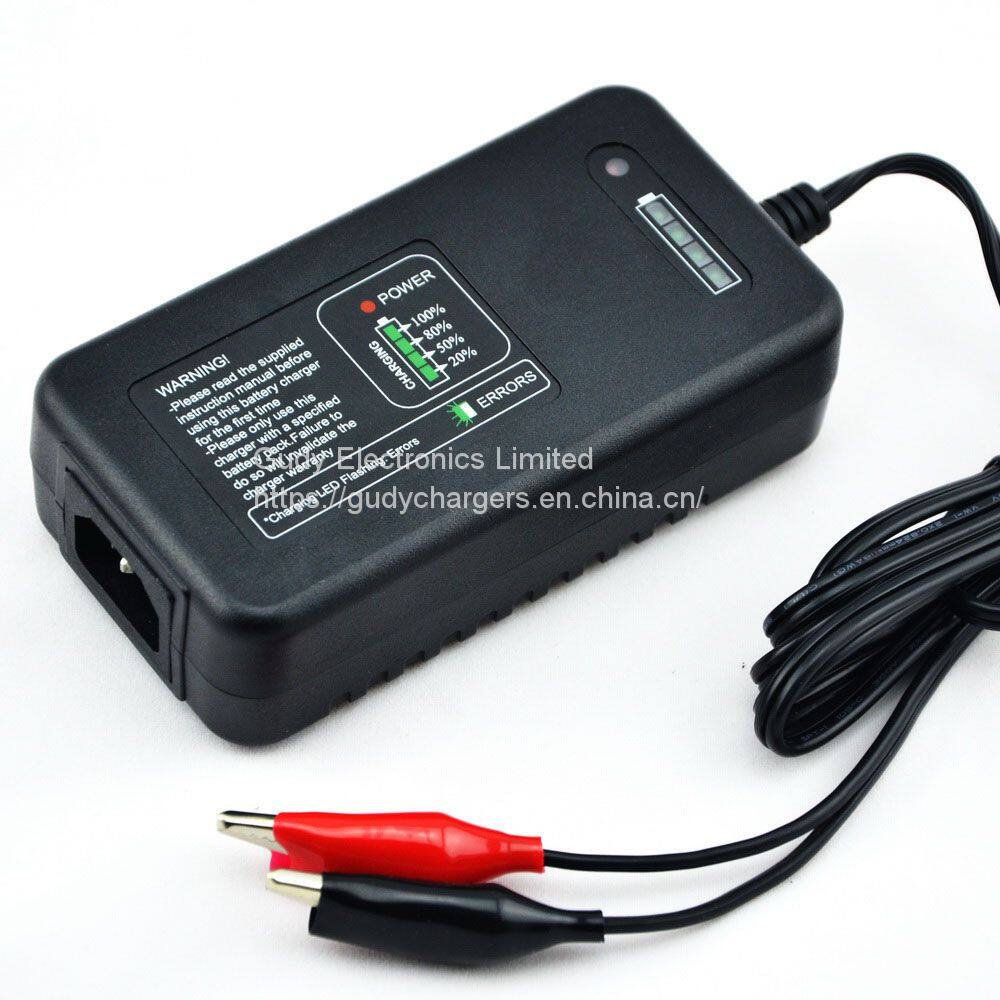

AC/DC Universal Power Adapter 21V 2A Li-ion Battery Charger With Fuel Gauge
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
GUDY
Place of Origin:
China
Model Number:
GC60-12L5
Payment & Shipping
Payment Methods:
Port of Shipment:
YanTian
Delivery Detail:
3 days
Related Products
-
Universal AC/DC Power Adapter 25.2V 10A Lithium Ion Battery ChargerNegotiableMOQ: 1 Piece -
Electric Bicycle Charger 29.4V 2.8A Li-ion Battery Charger With Fuel Gauge for Golf Cart ChargerNegotiableMOQ: 1 Piece
-
AC/DC Power Adapter 29.4V 6A Charger for 25.9V 7S Li-ion Battery Pack E-bike Charger Golf Cart ChargerNegotiableMOQ: 1 Piece
-
Electric Bike Charger 42V 1.8A Li-ion Li-po Battery Charger With Charge IndicatorNegotiableMOQ: 1 Piece
-
Universal Smart Charger Golf Cart Charger 54.6V 1.5A Lithium-ion Battery Charger With Fuel Gauge Electric Bike ChargerNegotiableMOQ: 1 Piece
Brand Name
GUDY
Place of Origin
China
Model Number
GC60-12L5
Connection
Desktop
Output Type
DC
21V 2A Li-ion Battery Charger with fuel gauge
Input: 100~240V
Output: 21.0V 2.0A
Suit for Battery: 18.5 Volt (5 Cells) 2~10Ah Li-ion
Charge Process: CC(pre-charge)-CC(bulk)-CV-cutoff
Charger Indicator: With 25%~100% Battery Indicator
Output Protections: Short-circuit, Reverse Polarity
Safety Approval: CE UL
Size: 120 x 67 x 41mm
18.5 Volt 2000 mA multi-stage li-ion and li-po recharger with universal AC input, includes a slow start feature and a 4-segment gas gauge.
The charger can be left permanently on the battery for maintenance.. It uses energy-saving techniques and advanced charge precision. The slow-start function helps battery cycle life, especially with deeply discharged batteries. The charger is fully isolated from the mains, has universal AC input, and a removable AC cord. It will accurately lithium-ion and lithium-polymer packs.
It is programmed auto 4 stages (Ip-Im-Um-cutoff) charging process, designed for 2~10Ah Li-Ion/Polymer battery pack. Stage "Ip" is a pre-charge function for deep discharged battery pack, this is helpful for battery's cycle life. When the battery recovered by pre-charge small current, stage "Im" will give bulk current charging( up to 50W). Then, "Um" stage is followed, the output voltage is limited on C.V point, until the charge current declined to 0.4A (for 3A C.C) or 0.2A(for 1.5A C.C.). At this stage, the battery is charged completely and the charger will cut off output automatic.

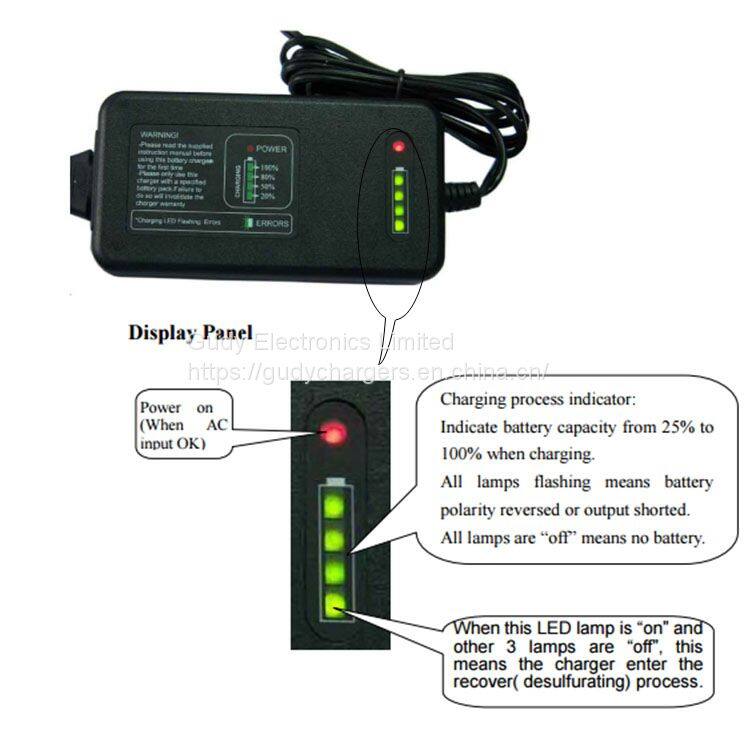

What's more, it can display the charging process, indicate the battery capacity from 25% to 100% timely. This is helpful for user.
For more safety, it will enable protection mode when the battery polarity reversed our the output connectors shorted.
Charge process:
What's more, it can display the charging process, indicate the battery capacity from 25% to 100% timely. This is helpful for user.
For more safety, it will enable protection mode when the battery polarity reversed our the output connectors shorted.
Charge process:
Stage 1 slow start, precharge function for deeply discharged packs
Stage 2 bulk charge stage. 2 amps is applied to the battery until the voltage rises to 21 volts
Stage 3 constant voltage state until the charge current falls to 400mA
Stage 4 The charger turns off.
