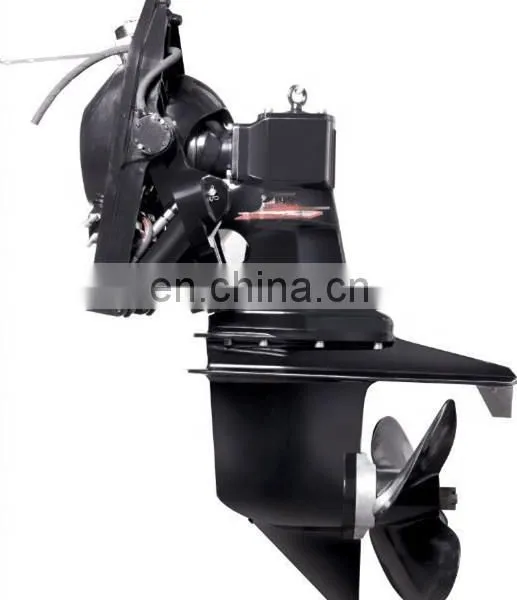

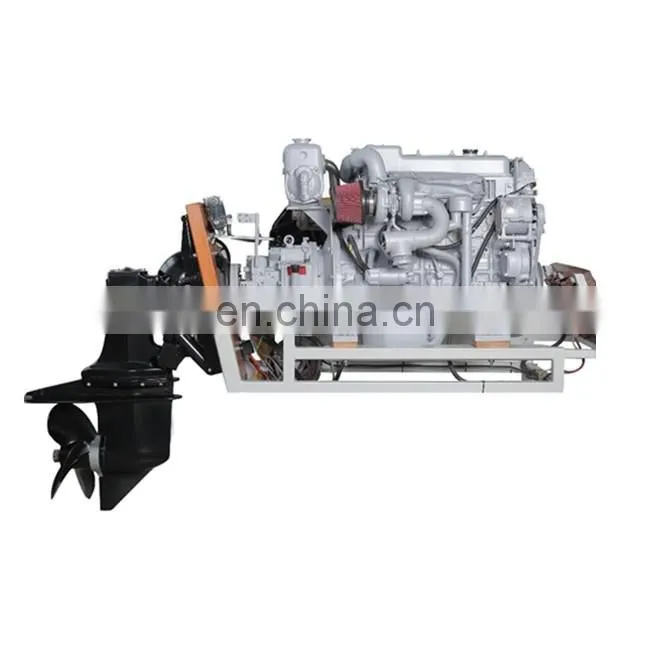

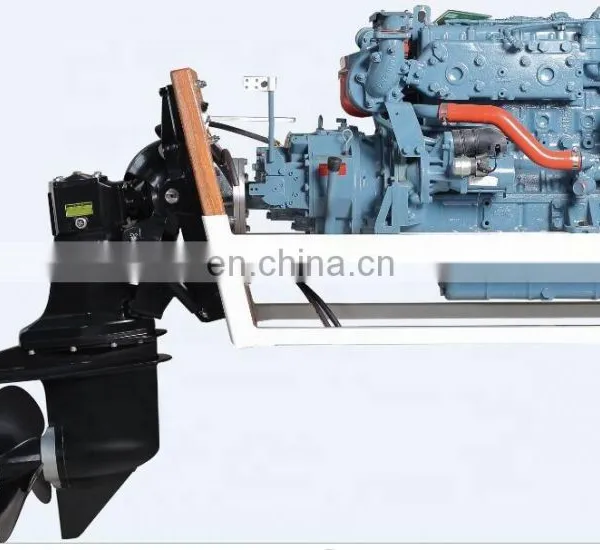

Water cooling SD150 sterndrive Stern marine diesel engine

The diesel engine has the highest thermal efficiency (engine efficiency) of any practical internal or external combustion engine due to its very high expansion ratio and inherent lean burn which enables heat dissipation by the excess air. A small efficiency loss is also avoided compared to two-stroke non-direct-injection gasoline engines since unburned fuel is not present at valve overlap and therefore no fuel goes directly from the intake/injection to the exhaust. Low-speed diesel engines (as used in ships and other applications where overall engine weight is relatively unimportant) can have a thermal efficiency that exceeds 50%.

Product name
Water cooling SD150 sterndrive Stern marine diesel engine
Model
SD150
Gear ratio
1.55:1
Rotation direction
left
Tilting model
Electro-Hydraulic
Motor Voltage
24V
Tilting Angle
62°
Rudder Angle
Left and Right each 30°
Max Diameter Propeller
390mm
Engine power
115-160HP
Engine speed
3000-4000rpm
Weight
75kg
Warranty
1 year
Delivery
By sea,by air,by express
Package
1. Neutral Packing
2, As customer requirement
Futures
1, More rugged and reliable
2 , High torque output hence pulling power is high
3 , Gears are tall
4 , Fuel efficiency is high
5, Service requirement is less frequent

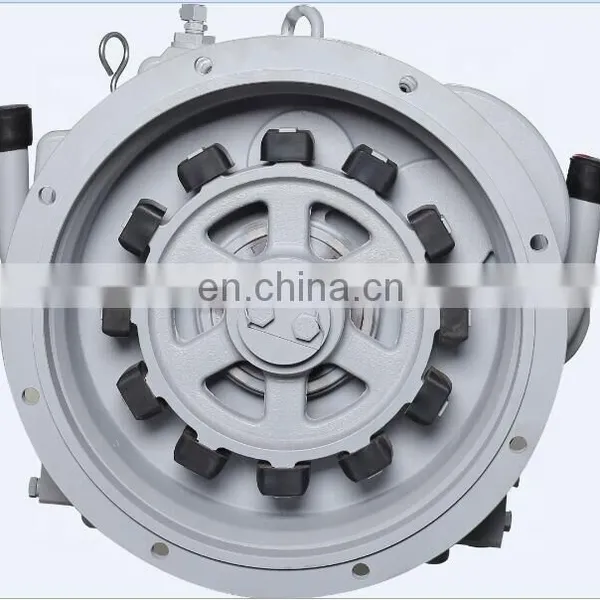

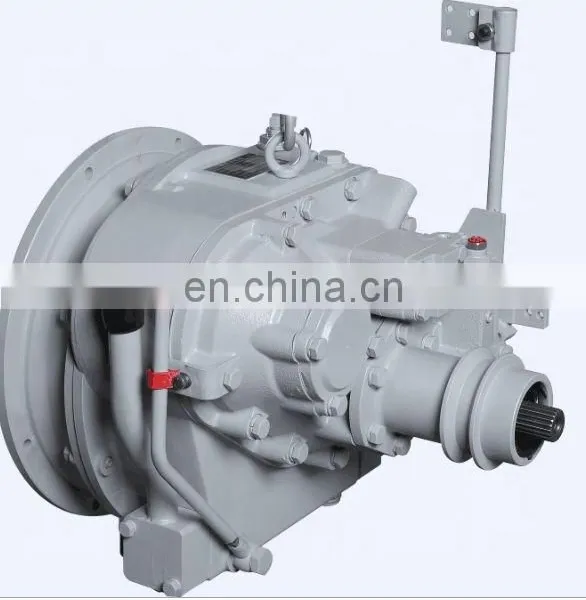

Hydraulic Clutch Technial Specification

Model
YC40A
Gear ratio
1:01
Hydraulic Transmission
Gear pump
Pressure Range
1.7-2.3MPa
Max Allowable Transmit Torque
450N.m
Cooling-down Method
Water cooling
Gear Position
F N R
Weight
65kg
