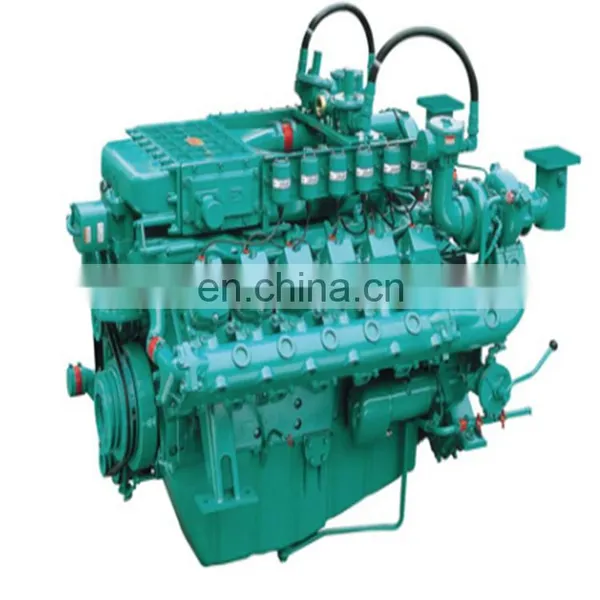

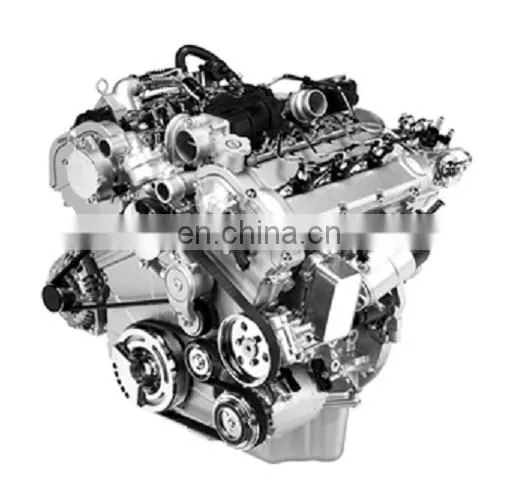

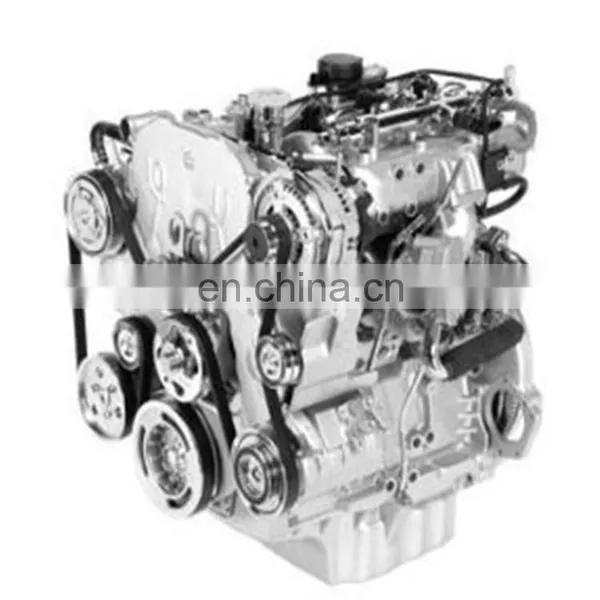

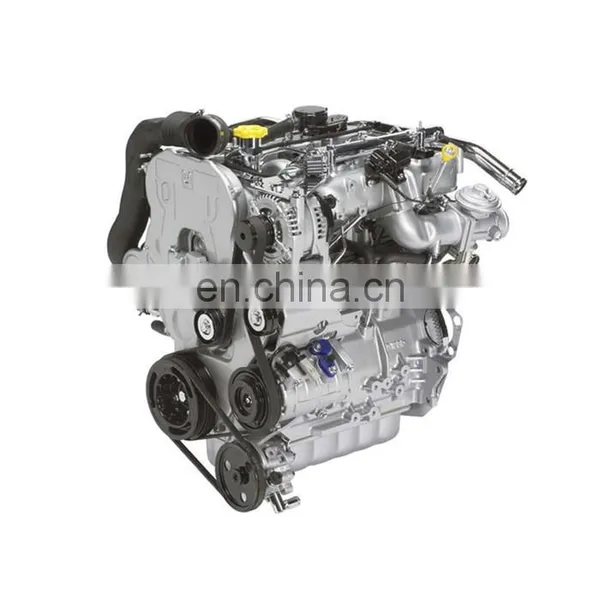

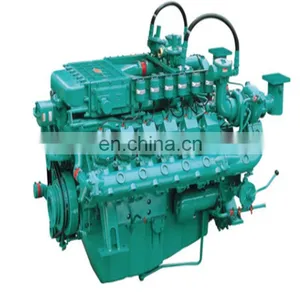

Original VM D704 Series 150HP Diesel Engine for truck VM R428
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
- Best Sale 109KW 2600rpm Water Cooling Diesel Engine 4HK1
- Brand new High speed Vessel Ship 200hp marine propulsion system MSD200 Surface Drive(.)
- Hot sale Brand new Diesel Engine VM Ra428 JE4D28B for truck
- 6kw-20kw Super-Silent Small Soundproof Power Electric Diesel Generator with Kubota/Perkin/Forward Engine
- Hot sale Brand new Shanghai diesel engine 220HP SDEC SC11CB220 3306 Diesel Engine for Construction
- Boat engine use Cu1 material 4 blades 80cm marine bronze propellers
Product Description
Product Description
VM D704 diesel engine for truck
Technical DataModel
D754G68E2
D704G82E2
D754G95E2
Type
Vertical, water-cooled, four-stroke
Vertical, water-cooled, four-stroke, turbocharged
Vertical, water-cooled, four-stroke, turbocharged
No. Of cylinders-bore× Stroke ( mm )
4-94 x 107
4-94 x 100
4-94 x 107
Valves per cylinder
2
Displacement(L)
2.97
2.776
2.97
Combustion chamber
Direct injection
Compression ratio
18: 1
Rated output (kW) /Speed (r/min)
50± 5%@2600
60.5± 5%@3000
70± 5%@2600
Max. Torque (N. M) /Speed ( r/min )
210± 5%@1400
290± 5%@1400
335± 5%@1300
Specific fuel consumption (g/kW. H )
235
230
238
Emission standard
97/68 EC Stage2 and Tier2 limits
Fuel injection equipment
Bosch rotary pump
Camshaft arrangement
Into engine block
Balance shaft
In the oil sump, optional
Overall dimensions: L× W× H(mm)
694× 518.5× 685
720× 557× 736
720× 557× 736
Model | D754G68E2 | D704G82E2 | D754G95E2 | ||
Type | Vertical, water-cooled, four-stroke | Vertical, water-cooled, four-stroke, turbocharged | Vertical, water-cooled, four-stroke, turbocharged | ||
No.of cylinders-bore×stroke ( mm ) | 4-94 x 107 | 4-94 x 100 | 4-94 x 107 | ||
Valves per cylinder | 2 | ||||
Displacement(L) | 2.97 | 2.776 | 2.97 | ||
Combustion chamber | Direct injection | ||||
Compression ratio | 18:01 | ||||
Rated output (kW) /Speed (r/min) | 50±5%@2600 | 60.5±5%@3000 | 70±5%@2600 | ||
Max.torque (N.m) /Speed ( r/min ) | 210±5%@1400 | 290±5%@1400 | 335±5%@1300 | ||
Specific fuel consumption (g/kW.h ) | 235 | 230 | 238 | ||
Emission standard | 97/68 EC Stage2 and Tier2 limits | ||||
Fuel injection equipment | Bosch rotary pump | ||||
Camshaft arrangement | into engine block | ||||
Balance shaft | in the oil sump,optional | ||||
Overall dimensions: L×W×H(mm) | 694×518.5×685 | 720×557×736 | 720×557×736 | ||
Model | D754G70E3 | D754G81E3 | D754G95E3 | ||
Type | Vertical, water-cooled, four-stroke | Vertical, water-cooled, four-stroke, turbocharged | Vertical, water-cooled, four-stroke, turbocharged and intercooled | ||
No.of cylinders-bore×stroke ( mm ) | 4-94 x 107 | 4-94 x 107 | 4-94 x 107 | ||
Valves per cylinder | 2 | ||||
Displacement(L) | 2.97 | 2.97 | 2.97 | ||
Combustion chamber | Direct injection | ||||
Compression ratio | 18:01 | ||||
Rated output (kW) /Speed (r/min) | 51,5±5%@2600 | 59.8±5%@2600 | 70±5%@2600 | ||
Max.torque (N.m) /Speed ( r/min ) | 250±5%@1800 | 274±5%@1800 | 420±5%@1000 | ||
Specific fuel consumption (g/kW.h ) | 235 | 233 | 231 | ||
Emission standard | 97/68 EC Stage3A and Tier3 limits | ||||
Fuel injection equipment | Bosch rotary pump | ||||
Camshaft location | in-block | ||||
Balance shaft | in the oil sump,optional | ||||
Overall dimensions: L×W×H(mm) | 720×546×687 | 720×508×740 | 720×508×736, | ||
