Product Description

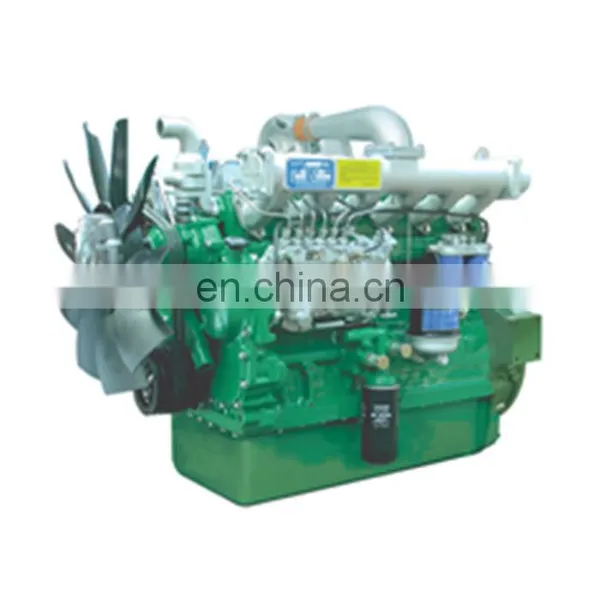

YTO YD series diesel engine
| General technical specification of YD series diesel engine for Agriculture/Construction/Generator set | |
| Cylinder type | Vertical in-line, water cooling, 4 stroke. |
| cylinder number | 3/4 |
| Bore*Stroke | 80/85/90/95/100/102/105*90/95/100/105/118 |
| Displacement | 1.35 /1.53 /1.81 /2.04 /2.15 /2.41 /2.54 /2.97 /3.70 /3.85/4.08 |
| Aspiration | Natural/Turbocharged |
| Combustion method | Direct injection |
| Rated power/speed | 10~75 kW /1500~2400 r/min |
| Minimum fuel consumption | 210g/kw.h |
| Engine starting Mode | Mechnical or electrical |
| Net Weight | to be continued |
| Overall Dimension(L*W*H) | to be continued |
| Emission | Non road China II/III |
| Vehicle Engine | ||||
| Model | Power/Speed (kw/rpm) | Bore/Stroke (mm) | Net Weight (KGS) | Application |
| ISF2.8 series | 80-120/3200-3600 | 94/100 | 214 | vehicle |
| ISF2.8 series | 105-125/2600 | 102/115 | 280 | vehicle |
| ISDe4.5 series | 103-152/2500 | 107/124 | 374 | vehicle |
| ISDe6.7 series | 136-227/2500 | 107/124 | 485 | vehicle |
| De8.9 series | 221-294/2100 | 114/145 | 706 | vehicle |
| ISZe13E4525 | 392/2100 | 130/163 | 820 | vehicle |
| ISM series | 250-324/1800-1900 | 125/147 | 940 | vehicle |
| ISME series | 226-306/1900 | 125/147 | 940 | vehicle |
| ISM11 series | 226-318/1900 | 125/147 | 940 | vehicle |
| EQB series | 92-173 /2500 | 102/120 | 457 | vehicle |
| C series | 162-239/2200 | 114/135 | 654 | vehicle |
| L series | 221-264/2200 | 114/145 | 690 | vehicle |
| Bge series | 112-172/2800 | 102/120 | 491 | vehicle |
| 4JB1 | 57/3600 | 93/102 | 124 | Light vehicle |
| 4JB1T | 68/3600 | 93/102 | 130 | Light vehicle |
| 4BD1 | 70.6/3200 | 102/118 | 330 | Light vehicle |
| 4BD1T | 83/2800 | 102/118 | 340 | Light vehicle |
| 6BD1 | 103/3000 | 102/118 | 480 | Light vehicle |
| 6BD1T | 120/2800 | 102/118 | 555 | Light vehicle |
| 4HF1 | 110/2600 | 112/110 | 350 | Light vehicle |
| 4HE1T | 125/2300 | 110/125 | 365 | Light vehicle |
| Deutz TBD226B-4 | 120/2500 | 105*120 | Euro 2, bus | |
| Deutz TBD226B-4 | 105/2300 | 105*120 | Euro 2, bus | |
| Deutz TBD226B-6 | 155/2300 | 105*120 | Euro 2, bus | |
| Deutz TBD226B-6 | 176/2500 | 105*120 | Euro 2, bus | |
| Deutz TBD226B-4 | 110/2500 | 105*120 | Euro 2, truck | |
| Deutz TBD226B-4 | 120/2500 | 105*120 | Euro 2, truck | |
| Deutz TBD226B-4 | 132/2500 | 105*120 | Euro 2, truck | |
| Deutz TBD226B-6 | 132/2500 | 105*120 | Euro 2, truck | |
| Deutz TBD226B-6 | 155/2500 | 105*120 | Euro 2, truck | |
| Deutz TBD226B-6 | 176/2500 | 105*120 | Euro 2, truck | |
| Sinotruk/Howo MC05 Series | 103-151/2400 | 108/125 | 459 | Euro 3,4,V |
| Sinotruk/Howo MC07 Series | 151-248/2300 | 108/125 | 640 | Euro 3,4,V |
| Sinotruk/Howo WD615 Series | 199-176/2200 | 126/130 | 900 | Euro 3,4,V |
| Sinotruk/Howo D10 Series | 198-279/1900 | 126/130 | 850 | Euro 3,4,V |
| Sinotruk/Howo MC11 Series | 235-324/1900 | 120/155 | 955 | Euro 3,4,V |
| Sinotruk/Howo MC13 Series | 353-397/1900 | 126/166 | 975 | Euro 3,4,V |
| Sinotruk/Howo D12 Series | 249-339/2000 | 126/155 | 1100 | Euro 3,4,V |
| Sinotruk/Howo WT615 Series | 170-250/2200 | 126/130 | 850 | Euro 3,4,V |
| Sinotruk/Howo T10 Series | 170-250/2200 | 126/130 | 850 | Euro 3,4,V |
| Sinotruk/Howo T10 Series | 249/350/2000 | 126/155 | 950 | Euro 3,4,V |
| Lijia SL2100ABT | 21.5-23.5/2200-2400 | 100/117 | 275 | 25-28HP Tractor |
| Lijia SL2105ABT | 23.8-26.0/2200-2400 | 105/117 | 275 | 25-28HP Tractor |
| Lijia SL2108ABT | 25.2-27.5/2200-2400 | 108/117 | 270 | 30-35HP Tractor |
| Lijia SL2110ABT | 26.2-28.6/2200-2400 | 110/117 | 270 | 30-35HP Tractor |
| Lijia SL2100ABN | 24.5-25.4/2500-2600 | 100/117 | 245 | Light vehicle |
| Lijia SL2105ABN | 27.0-28.2/2500-2600 | 105/117 | 245 | Light vehicle |
| Lijia SL2108ABN | 28.6-30.0/2500-2600 | 108/117 | 245 | Light vehicle |
| Lijia SL2110ABN | 29.8-31.0/2500-2600 | 110/117 | 245 | Light vehicle |
| VM 1.5L | 184/3800 | 83 /92 | 225 | Euro 4,vehicle |
| VM 2.0L | 110/4000 | 83 /92 | 235 | Euro 4,vehicle |
| VM 2.5L | 115/3800 | 92 /94 | 235 | Euro 4,vehicle |
| VM 2.8L | 120/3800 | 94 /100 | 235 | Euro 4,vehicle |
| VM 3.0L | 184/3800 | 83 /90.4 | 225 | Euro 4,vehicle |
| VM R425 DOHC | 104/4000 | 92/94 | 220 | Euro 3,vehicle |
| VM R428 DOHC | 115/4000 | 92/94 | 220 | Euro 3,vehicle |
| VM RA425 | 115/3800 | 92/94 | 235 | Euro 4,vehicle |
| VM RA428 | 120/3600 | 94/100 | 235 | Euro 4,vehicle |
| VM RA630 | 184/3800 | 83/90.4 | 225 | Euro V,vehicle |
| Nissan ZD25 | 75/3800 | 92/94 | 230 | Euro 3,vehicle |
| Nissan ZD30 | 96/3600 | 96/102 | Euro 3,4,vehicle | |
| 4eco 8140.27S | 76/3800 | 93/92 | 231 | EUR 1 |
| 4eco 8140.47 | 85/3800 | 93/92 | 231 | EUR 1 |
| 4eco 8142.47S | 76/3800 | 93/92 | 231 | EUR 1 |
| 4eco 8142.47 | 85/3800 | 93/92 | 231 | EUR 1 |
| 4eco 8140.23 | 76/3600 | 94.4/100 | 240 | EUR 2 |
| 4eco 8140.43 | 87/3600 | 94.4/100 | 240 | EUR 2 |
| 4eco 8142.23 | 76/3600 | 94.4/100 | 240 | EUR 2 |
| 4eco 8142.43 | 76/3600 | 94.4/100 | 240 | EUR 2 |
| 4eco 8140.43C | 76/3600 | 94.4/100 | 240 | EUR 2 |
| 4eco 8140.43Z | 90/3600 | 94.4/100 | 240 | EUR 2 |
| 4eco 8140.45 | 95/3600 | 97.7/100 | 240 | EUR 2 |
| 4eco 8140.43S/43S3 | 92/3600 | 94.4/100 | 245 | Euro 3 |
| 4eco 8140.43N | 107/3600 | 94.4/100 | 245 | Euro 3 |
| ChaoChai CY4100ZLQ | 70/3200,75/3000,81/2900 | 100×118 | 240 | EUR2 |
| ChaoChai CY4102BQ | 70.6/3200 | 102×118 | 330 | EUR 1 |
| ChaoChai CY4102BZQ | 83/2800 | 102×118 | 340 | EUR 2 |
| ChaoChai CY6102BZQ | 120/2800 | 102×118 | 560 | EUR 1 |
| ChaoChai CY4105Q | 74/3000 | 105×118 | 330 | EUR 1 |
| ChaoChai CY6102BZLQ | 132/2600 | 102×118 | 555 | EUR 2 |
| ChaoChai CY4102BZLQ | 88/2800 | 102×118 | 350 | EUR 2 |
| ChaoChai CY4100Q | 66/3200 | 100×118 | 320 | EUR 1 |
| ChaoChai CY4102BG | 48/2100,55/2400 | 102×118 | 330 | EUR 1 |
| ChaoChai CY4D43Ti | 110/2600 | 112×110 | 350 | EUR 2 |
| ChaoChai CY4D47Ti | 125/2300 | 110×125 | 365 | EUR 2 |
| ChaoChai CY6D78Ti | 180/2400 | 115×125 | 595 | EUR 2 |
| ChaoChai CY4D115-C3/D3 | 115/2600 | 110×125 | 395 | Euro 3 |
| ChaoChai CY4D120-C3/D3 | 120/2600 | 110×125 | 395 | Euro 3 |
| ChaoChai CY4D125-C3/D3 | 125/2300 | 110×125 | 395 | Euro 3 |
| ChaoChai CY4D85-C3-FD | 85/2200 | EPATier3/EU STAGE 3A | ||
| ChaoChai CY4D115-CE4 | 118/2600 | EUR 2 | ||
| ChaoChai CY4102 CNG | 75/3200 | 102×118 | Euro 2/Euro 3,CNG | |
| ChaoChai CY6102 CNG | 110/3000 | 102×118 | Euro 2/Euro 3,CNG | |
| ChaoChai CY4D47Ti CNG | 118/2800 | 110×125 | Euro 2/Euro 3,CNG | |
| ChaoChai CY4D125-N3 | 125/2600 | 110X125 | 395 | Euro 3 |
| Nissan QD32 | 75.8/3600 | 99.2×102 | 258 | Euro 1 |
| Nissan QD32(EGR) | 75.8/3600 | 99.2×102 | 260 | Euro 2 |
| Nissan QD32T | 80.9/3600 | 99.2×102 | 272 | Euro 2 |
| Nissan QD32Ti | 101.5/3600,96/3600 | 99.2×102 | 275 | Euro 2 |
| International | 120/3800,96/3800 | 96×102.5 | 275 | Euro3/Euro4 |
| Mitsubish 4G63 | 90-108/5250-6400 | 130X88 | Euro 5 | |
| Mitsubish 4G64 | 100-118/5500-6000 | 86.5/87X100 | Euro 4 | |
Contact with us for more engines
Joint Venture Famous Diesel Engine:
- engine and spare parts
- Deutz engine and spare parts
- Iveco engine and spare parts
- ABB turbocharger
Authorized Dealer Of Locomotive Diesel Engine :
- CSR ZIAYNG diesel engine and spare parts
- CSR QISHUYAN diesel engine and spare parts
- CNR DALIAN LOCOMOTIVE diesel engine and spare parts
- LOCOMOTIVE ENGINE SPARE PARTS OEM
China Top Qualtiy Diesel Engine :
- HOWO engine and spare parts
- ShangChai engine and spare parts
- Chaochai engine and spare parts
- Weichai engine and spare parts
- Dachai engine and spare parts
- FAW (Wuxi) engine and spare parts
- Changchai engine and spare parts
- Yuchai engine and spare parts
