Brand New 6 Cylinder In-line Water Cooler Weichai WHM6160 Marine Engine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Navy WEICHAI-motor for Boat, 500hp, WP13C500-21 2100rpm Marine Diesel EngineNegotiableMOQ: 1 -
Navy WEICHAI-motor for Boat, 550hp, WP13C550-21 2100rpm Marine Diesel EngineNegotiableMOQ: 1
-
Navy WEICHAI-motor for Boat, 220hp, WP6C220-23 2300rpm Marine Diesel EngineNegotiableMOQ: 1
-
Navy WEICHAI-motor for Boat, 230hp, WP6C250-23 2425rpm Marine Diesel EngineNegotiableMOQ: 1
-
Navy WEICHAI-motor for Boat, 230hp, WP6C250-23 2425rpm Marine Diesel EngineNegotiableMOQ: 1
Product Description

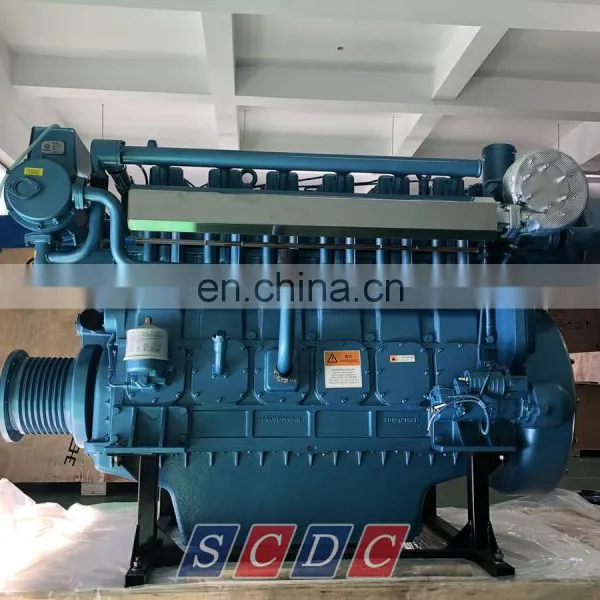

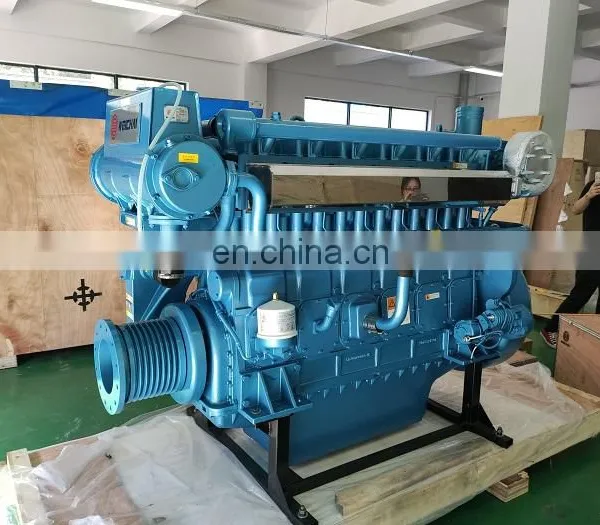

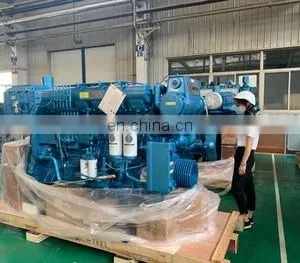

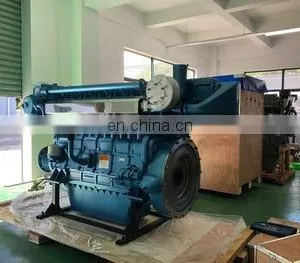

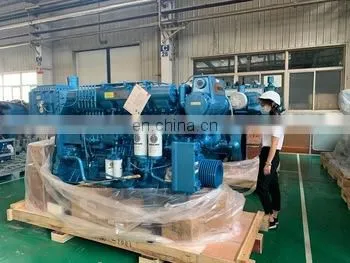

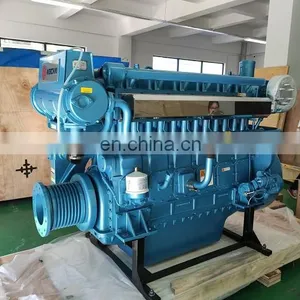

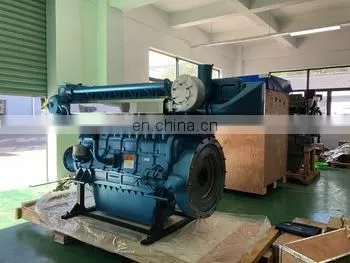

Brand new 6 cylinder in-line water cooler Weichai WHM6160 marine engine
The diesel engine has the highest thermal efficiency (engine efficiency) of any practical internal or external combustion engine due to its very high expansion ratio and inherent lean burn which enables heat dissipation by the excess air. A small efficiency loss is also avoided compared to two-stroke non-direct-injection gasoline engines since unburned fuel is not present at valve overlap and therefore no fuel goes directly from the intake/injection to the exhaust. Low-speed diesel engines (as used in ships and other applications where overall engine weight is relatively unimportant) can have a thermal efficiency that exceeds 50%.
Engine brand |
Weichai |
||||||
Engine model |
WHM6160C300-1 |
WHM6160C350-1 |
WHM6160C408-1 |
WHM6160C450-1 |
|||
Description |
water cooler,4 stroke,in-line 6 cylinder,turbocharged |
||||||
Rated power/speed |
300HP/1000RPM |
350HP/1000RPM |
408HP/1000RPM |
450HP/1000RPM |
|||
Bore*Stroke |
160*200mm |
||||||
Displacement |
24.12L |
||||||
L*W*H |
2510×1245×1815(mm) |
||||||
Weight |
3100KG |
||||||
Fuel pump |
mechanical fuel pump |
||||||
Certificate |
CCS and IMO II |
||||||
Rating |
P1 |
||||||
Application |
working boat,tugboat,passenger boat |
||||||
Engine brand |
Weichai |
||||||
Engine model |
WHM6160C450-2 |
WHM6160C450-5 |
WHM6160C490-2 |
WHM6160C520-2 |
|||
Description |
water cooler,4 stroke,in-line 6 cylinder,turbocharged |
||||||
Rated power/speed |
450HP/1200RPM |
450HP/1500RPM |
490HP/1200RPM |
520HP/1200RPM |
|||
Bore*Stroke |
160*200mm |
||||||
Displacement |
24.12L |
||||||
L*W*H |
2510×1245×1815(mm) |
||||||
Weight |
3100KG |
||||||
Fuel pump |
mechanical fuel pump |
||||||
Certificate |
CCS and IMO II |
||||||
Rating |
P1 |
||||||
Application |
working boat,tugboat,passenger boat |
||||||
Engine brand |
Weichai |
||||||
Engine model |
WHM6160C550-5 |
WHM6160C580-3 |
WHM6160C580-5 |
WHM6160C620-5 |
|||
Description |
water cooler,4 stroke,in-line 6 cylinder,turbocharged |
||||||
Rated power/speed |
550HP/1500RPM |
580HP/1350RPM |
580HP/1500RPM |
620HP/1500RPM |
|||
Bore*Stroke |
160*200mm |
||||||
Displacement |
24.12L |
||||||
L*W*H |
2510×1245×1815(mm) |
||||||
Weight |
3100KG |
||||||
Fuel pump |
mechanical fuel pump |
||||||
Certificate |
CCS and IMO II |
||||||
Rating |
P1 |
||||||
Application |
working boat,tugboat,passenger boat |
||||||
Warranty |
12 months or 1500 hours |
Delivery |
By sea,by air,by express |
Package |
1. Neutral Packing 2, As customer requirement
3.Wooden case |
Futures |
1, More rugged and reliable 2 , High torque output hence pulling power is high 3 , Gears are tall 4 , Fuel efficiency is high 5, Service requirement is less frequent |
