Brand new Weichai Water Cooled Diesel Engine WP2.3D33E200 for generator set generating diesel engine

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

WP2.3D33E200

Shanghai Client Diesel Engine Co., Ltd can provide Weichai Marine engine. The price is competitive, and the quality is original. Looking forward to your visit!
Features & Benefits
* Felxible -can be customerized according to customer's request, drawing will be submitted for approval. Such as taking off
radiator and replacing with the heat exchanging system, total power solution such as gear box coupling and canopy design.
*Durability- With engines have been engineered to meet the durability and performance needs of construcation applications and
seawater cooling options and controls seamlessly integrated to ensure the propulsion for your vessel meets your needs.
* Long-Life Expectancy - these critical parts are manufactured by leading companies, other part comes from reliable manufacturers,
these sets guarantee long functional life, outstanding performance, and high efficiency.
Easy availability of the spare parts -- the key parts are same as parts for vehicle diesel engine,better exchange and universality and durable.
* Easy maintenance -Diesel engine not require heavy maintenance. It is very easy, safe, and simple to use. Well-planned and preventive maintenance measures are generally available for these sets which are also low in cost.

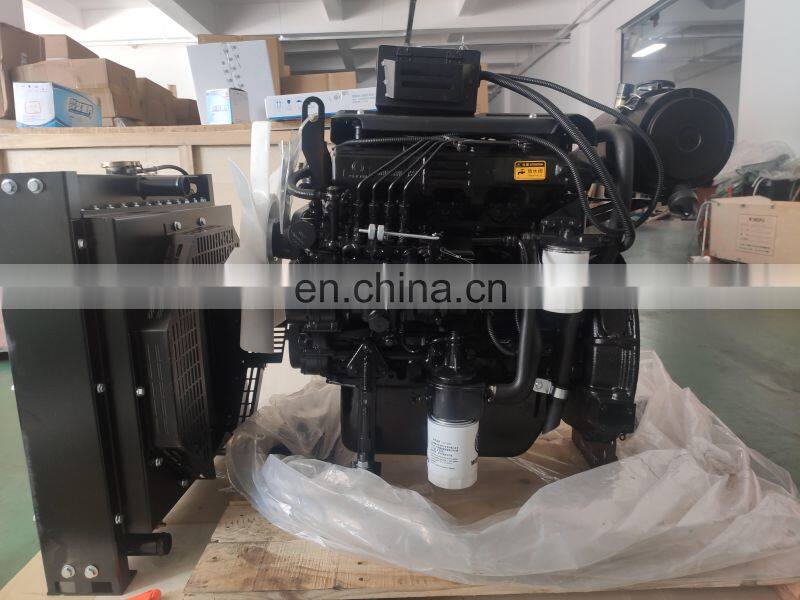

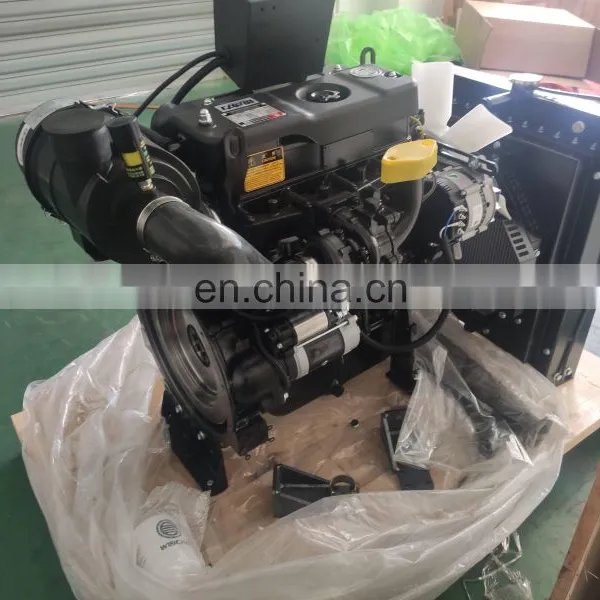

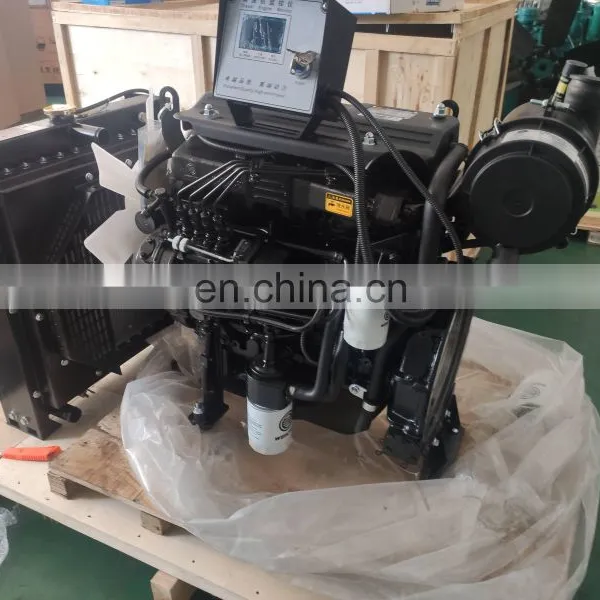

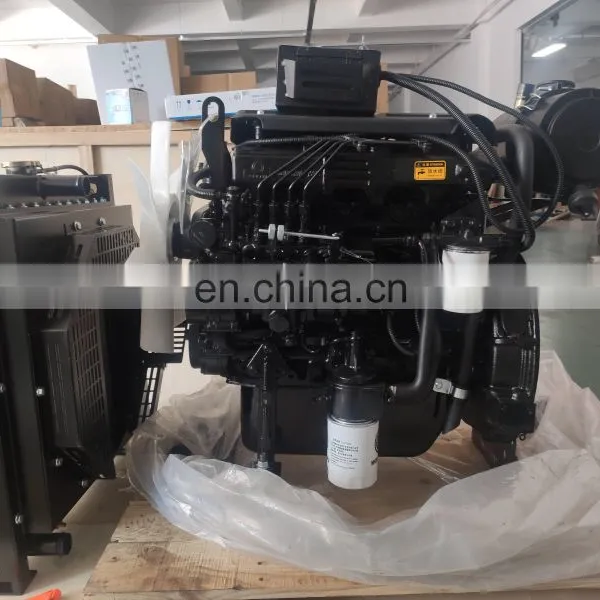

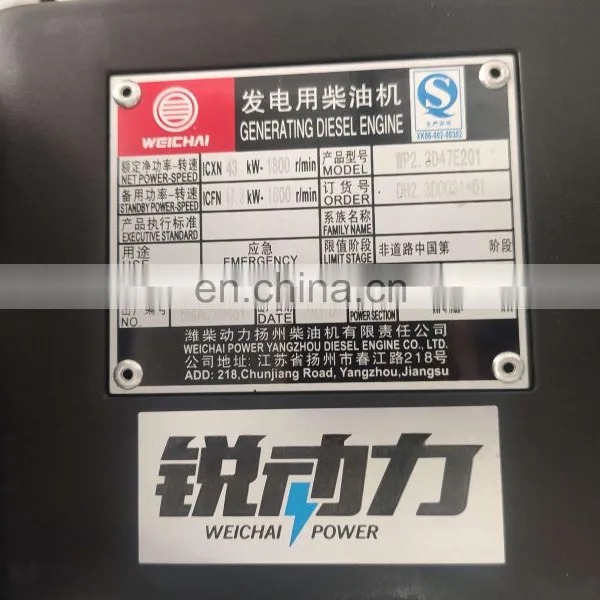

Detailed Image

WEICHAI engine model

D226B-3D

TD226B-3D

TD226B-4D

TD226B-6D

TBD226B-6D

Number of Cylinders

Engine Displacement

3.117

4.156

6.234

Type

in line,four stroke,direct injection,wet cylinder liner

Firing order

1-3-2

1-3-4-2

1-5-3-6-2-4

Bore

105

Stroke

120

Compression ratio

16.4

15.5

Aspiration

Natural

Turbocharged

Crankshaft rotated direction(Face to flywheel)

Anti-colckwise

Staring Methord

Electronic Motor(DC24V or 12V)

cold start performance

without cold start aid

ºC

-10

with cold start aid

ºC

-35

Permitted gradient longitudinal /cross

25/30

30/40

20/45

Engine only

Dry weight

495

505

545

714

735

Wet weight

505.5

515.5

559.5

735

750

Engine with cooling package

Dry weight

520

530

570

760

775

Wet weight

530

540

585

781

790

Performance

Prime Power

105

135

Speed at Prime Power

r/min

1800

Standby Power

55.0

116

149

Speed at Standby Power

r/min

1800

Fan Power Consumption

Mean piston speed at rated speed

m/s

7.2

Torque at

Prime Power

N.m

191

265.28

371.39

557.08

716.25

Standby Power

N.m

210.1

291.81

408.53

612.79

787.88

Effective mean presure at

Prime Power

kPa

769.97

1069.40

1122.87

1443.70

Standby Power

kPa

846.97

1176.34

1235.16

1588.07

Max combustion pressure

MPa

≤18.5

The lowest idle speed

r/min

800±50

750±50

Steady Governing Rate

Mechanical type≤5%,Elcctronic≤1.5%

Noise

dB(A)

≤105

Lubrication System

lubricating oil consumption

g/kW?h

0.65

0.67

0.66

0.67

Oil system capacity including filters

9.75

oil sump capacity

7.25

Oil change intervals/specifications

250

Oil pressure at

Rated speed

kPa

300-500

Idle speed

kPa

≥100

Max permitted oil temperature

ºC

≤120

Oil pump type

gear pump

Oil filter type

spiral paper element

Oil cooler type

Round plate type

Oil grade

SAE 15W-40 for temp above (-15 degC). SAE 5W-30 for temp below (-15degC).CD/CE/CF class oilRound plate type

Fuel System

Fuel Pump, Model

A Type or AD type

EP9 Type or P7100 type

Type of Governor: Mechanical / Electronic

optional

Steady Governing Rate

Mechanical type≤5%,Elcctronic≤1.5%

Fuel consumption

See test data or charactertic curve

Fuel feed pump type

plunger type

Fuel filter type

spiral paper element

Injection timing(B.T.D.C)

20.5±0.5

18±0.5

Injector type

multi-hole,valve needle

Injector opening pressue

MPa

Solenoid, Make & Model

1756ES

Voltage

24 or 12

Pulling Current

When voltage is 24V ,≤25A.,When voltage is 12V ,≤50A

Holding Current

When voltage is 24V ,≤0.6A.,When voltage is 12V ,≤1.2A

Intake and Exhaust system

Air consumption at

Prime Power

kg/h

156

229

304

421

Standard Power

kg/h

240

312

440

Max allowable Air intake restriction

kPa

≤3

Max Environmental temperature

ºC

≤45

Air filter type

spiral paper element

Max exhaust gas temperature after turbine

ºC

≤600

≤550

Max allowable back pressure in exhaust line

kPa

≤7

Exhaust gas flow at

Prime Power

kg/h

163

238

318

441

Standard Power

kg/h

251

326

462

Cooling system

Max. Top tank temperature

ºC

≤103

Heat rejection radiation from engine at Rated Powe

Heat rejection to coolant at Rated Power

Radiator ambient

ºC

≤45

Recommended coolant

See Operatin Manual

Radiator cooling system type

closed circuit

Radiation area of ratiatior

m^2

Radiator core thickness

fan diameter

Φ466

Φ540

fan power consumption

fan flow

m^3/min

172

220

coolant capacity

15.7

27.6

coolant pump type

Centrifugal

Water Flow in Major Circulation

m^3/h

3.8

4.5

8.1

Max external coolant system restriction

kPa

≤12

Thermostat

Type

wax type

strat to open

ºC

fully open

Electrical system and others

Engine Driven Charging Alternator

Maker & Model

Prestolite Company

Type

Three-phase AC,commutated and voltage regulated

Power

0.75

System Voltage

28V

Charging Amperes

27A

Starter System

Maker, Model

Prestolite

Type

DC,selfexcitation

Voltage

24V or 12V

24V

Rated Power

4kW

6kW

Starting Current

800~900A

Solenoid& Model

incorporated with starter

Relay, & Model

incorporated with starter

Protection Threshold Setting

Low Oil Pressure

0.12MPa(When engine speed ≥650r/min)

High Engine Temperature

ºC

High Oil Temperature

ºC

105

provisions on the flywheel housing for the installation of magnetic pickup

It is recommended to install the magnetic pichup at the flywheel gear ring with 0.4~0.8mm clearance between the pickup and the tip
of the tooth

switches and sensors installation location

See the Engine Assembly Drawing

the Electrical drawing

See the Engine Electrical Drawing

Flywheel house stadard

SAE3

SAE1

Flywheel type stadard

SAE11.5

Center of Gravity Location

see the engine outline drawing
