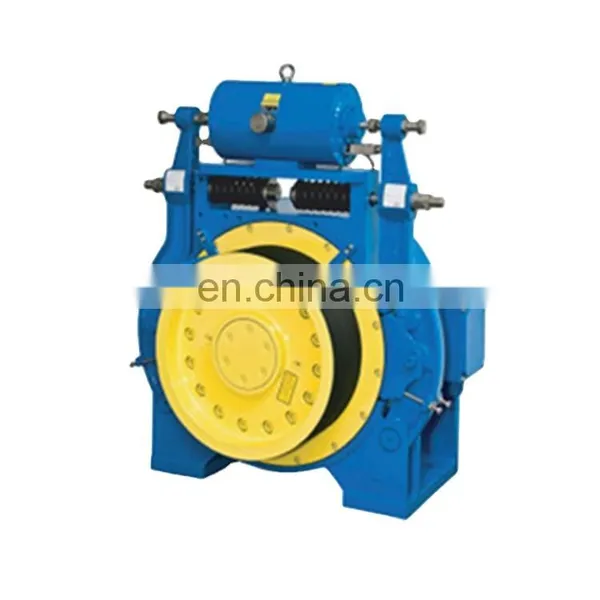

High Quality Passenger Elevator Gearless Traction Machine

Jingjiang Fuji Technology Co., Ltd. Gold Verified Supplier
4Yrs
Verified Business License
High Quality Passenger Elevator Gearless Traction Machine thumbnail-1
High Quality Passenger Elevator Gearless Traction Machine thumbnail-2
High Quality Passenger Elevator Gearless Traction Machine thumbnail-3
High Quality Passenger Elevator Gearless Traction Machine thumbnail-4
High Quality Passenger Elevator Gearless Traction Machine thumbnail-5
High Quality Passenger Elevator Gearless Traction Machine photo-1
High Quality Passenger Elevator Gearless Traction Machine photo-2
High Quality Passenger Elevator Gearless Traction Machine photo-3
High Quality Passenger Elevator Gearless Traction Machine photo-4
High Quality Passenger Elevator Gearless Traction Machine photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

Product Description

Using the permanent magnet synchronous gearless traction machine as the power source, it is small in size and compact in structure, which can meet the design requirements of small machine room and provide more free design space for architectural design.
Name
Elevator Gearless Traction Machine
Voltage
380V
Speed(m/s)
1 - 2.5
Roping
2:1
Weight
350kg
Max. Shaft Load
3000kg
Brake
DC110V 2×0.88A
Details Images
Model
Load (Kg)
Speed (m/s)
Sheave Diam (mm)
Rope Sheave (mm)
Current (A)
Torque (Nm)
Rated  Speed  (rpm)
Frequency
(Hz)
Power
(kW)
NV41T-W7
630
1
Φ400
4×Φ10×16
9.7
420
96
25.6
4.2
NV41T-W7
630
1.5
Φ400
4×Φ10×16
14.9
420
144
38.4
6.3
NV41T-W7
630
1.6
Φ400
4×Φ10×16
14.9
420
153
40.8
6.7
NV41T-W7
630
1.75
Φ400
4×Φ10×16
15.9
420
167
44.5
7.3
NV41T-W7
630
2
Φ400
4×Φ10×16
18.3
420
192
51.2
8.4
NV41T-W7
800
1
Φ400
5×Φ10×16
12.1
530
96
25.6
5.3
NV41T-W7
800
1.5
Φ400
5×Φ10×16
18.8
530
144
38.4
8
NV41T-W7
800
1.6
Φ400
5×Φ10×16
18.8
530
153
40.8
8.5
NV41T-W7
800
1.75
Φ400
5×Φ10×16
20.7
530
167
44.5
9.3
NV41T-W7
800
2
Φ400
5×Φ10×16
23.2
530
192
51.2
10.7
NV41T-W7
1000
1
Φ400
5×Φ10×16
14.7
650
96
25.6
6.5
NV41T-W7
1000
1.5
Φ400
5×Φ10×16
22.9
650
144
38.4
9.8
NV41T-W7
1000
1.6
Φ400
5×Φ10×16
22.9
650
153
40.8
10.4
NV41T-W7
1000
1.75
Φ400
5×Φ10×16
25.1
650
167
44.5
11.4
NV41T-W7
1000
2
Φ400
5×Φ10×16
28.2
650
192
51.2
13.1
Different Models
Main Product Catalog
Company Profile
Exhibition
Product Packaging
FAQ
1. Price Re: please send us inquiry from , we will qutoe to you within 24 hours. It’s more convenient and appreciated for us if you provide your company details and your detail inquiry for elevators. 2. Payment term Re: T/T or L/C at sight. 3. Installation&Maintaining Re: We will send installation&maintaining manual along with the elevator. Our sugguestion is to hire a professional local company for installation and future maintaining, once you need any technical assistant from us, just don't hesitate to contact us by mail or phone. Technician will be sent to the job site if necessary. 4. Shipping&price term Re: Both FOB/CIF/CFR price term are ok, we have reliable forwarder helping arrange the shipment for you.
