Grared Elevator Traction Machine With Roping For Lift
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Customized Aging Resistance Elevator Deflector Drive SheaveNegotiableMOQ: 1 -
Customized Cast Iron Material Elevator Traction Pulley SheaveNegotiableMOQ: 1
-
NV41K NOVA Elevator Traction System Lift Gearless Traction Machine With Roping 1:1NegotiableMOQ: 1
-
High Quality NOVA Elevators Steel Wire Rope For PriceNegotiableMOQ: 1
-
6*9S+PP Elevators Steel Wire Rope For Lift Parts PriceNegotiableMOQ: 1
Product Description

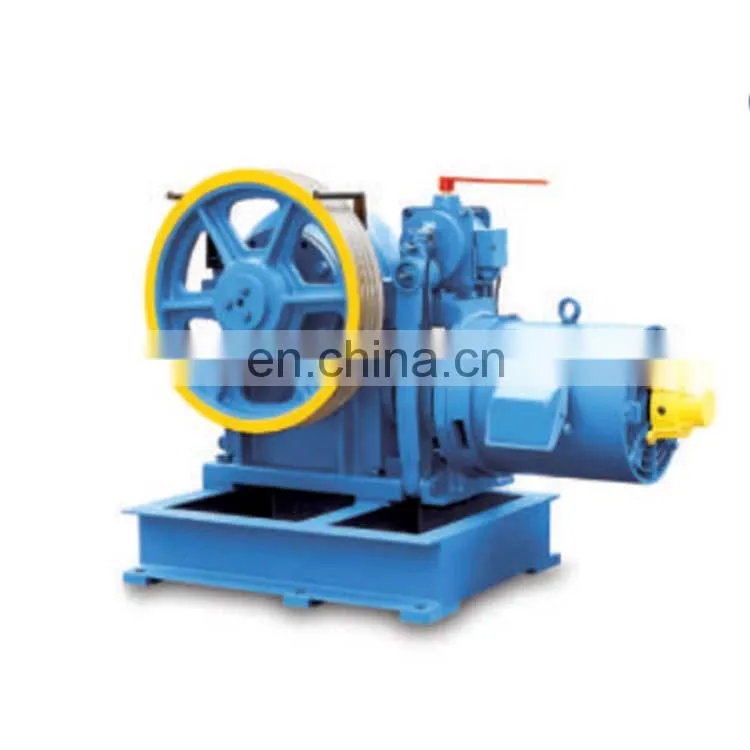

Elevator Geared Traction Machine
General Information for the Elevator Motor
1. Type: VVVF asynchronous and geared
2. Traction Sheave Location: Optional for right or left
3. Load: 2000KG to 2500KG
4. Speed: 0.5m/s to 2.0m/s
5. Application: For new elevator or elevator modernization
Features for Geared VVVF Asynchronous Elevator Traction Machine
1. High efficiency
2. Stable and low noise
3. High static load capacity
Model |
NV41G |
Speed(m/s) |
0.5 - 2 |
Weight |
730kg |
Suspension |
1:1 |
Max.Static Load |
7500kg |
Control |
VVVF |
Brake |
DC110V 2A |
Details Images
Model |
Load (kg) |
Lift Speed (m/s) |
Ratio |
Sheave Diam (mm) |
Rope Sheave (mm) |
Motor Power (kW) |
Pole |
NV41G |
800 |
1.6 |
59:2 |
Φ620 |
5×Φ13×20 |
12.5 |
4 |
NV41G |
800 |
1.75 |
55:2 |
Φ620 |
5×Φ13×20 |
15 |
4 |
NV41G |
800 |
2 |
49:2 |
Φ620 |
6×Φ13×20 |
18.5 |
4 |
NV41G |
1000 |
1 |
49:1 |
Φ620 |
5×Φ13×20 |
11 |
4 |
NV41G |
1000 |
1.6 |
59:2 |
Φ620 |
6×Φ13×20 |
18.5 |
4 |
NV41G |
1000 |
1.75 |
55:2 |
Φ620 |
6×Φ13×20 |
18.5 |
4 |
NV41G |
1000 |
2 |
49:2 |
Φ620 |
6×Φ13×20 |
18.5 |
4 |
NV41G |
1150 |
1 |
49:1 |
Φ620 |
6×Φ13×20 |
15 |
4 |
NV41G |
1150 |
1.6 |
59:2 |
Φ620 |
6×Φ13×20 |
18.5 |
4 |
NV41G |
1150 |
1.75 |
55:2 |
Φ620 |
6×Φ13×20 |
18.5 |
4 |
NV41G |
1150 |
2 |
49:2 |
Φ620 |
6×Φ13×20 |
22 |
4 |
Different Models
Related Products
Shaft Components
Machined /Cold Drawn/ Hollow Guide Rail, Fishplate, Fasteners, Anchor Bolt, Rail Rracket etc.
Door System
Mitsubishi, Fermator and Selcom Door Operator and Landing Door, Door Panel, Door Spare Parts,Safety Light Curtain/Photocell etc.
Traction System
Geared/Gearless Traction Machine, Pulley Sheave,Anti-Vibration Pad,Steel Wire Rope etc.
Elevator Cabin
Complete Elevaotr Cabin, Car Frame, Counterweight Frame and Counterweight Block,Guide Shoes, Rope Attachment etc.
Electrical Components
Integrated and Separated Controlling Cabinet,Yaskawa L1000A Inverter, Elevator Display,COP&LOP&HOP, Elevator Button, Flat
Traveling Cable etc.
Traveling Cable etc.
Safety Components

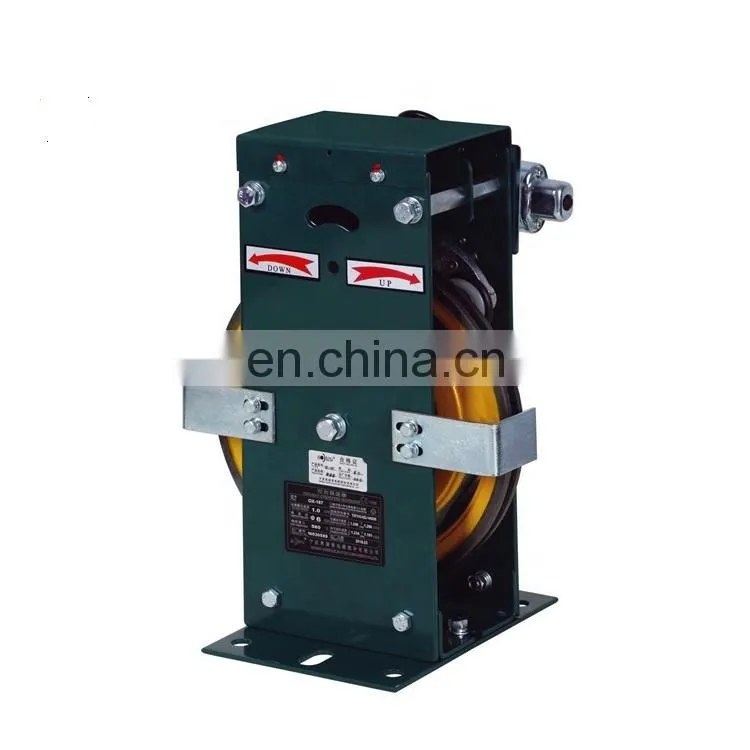

Safety Gear, Speed Governor, Rope Brake, Oil Buffer and Rubber Buffer etc.
