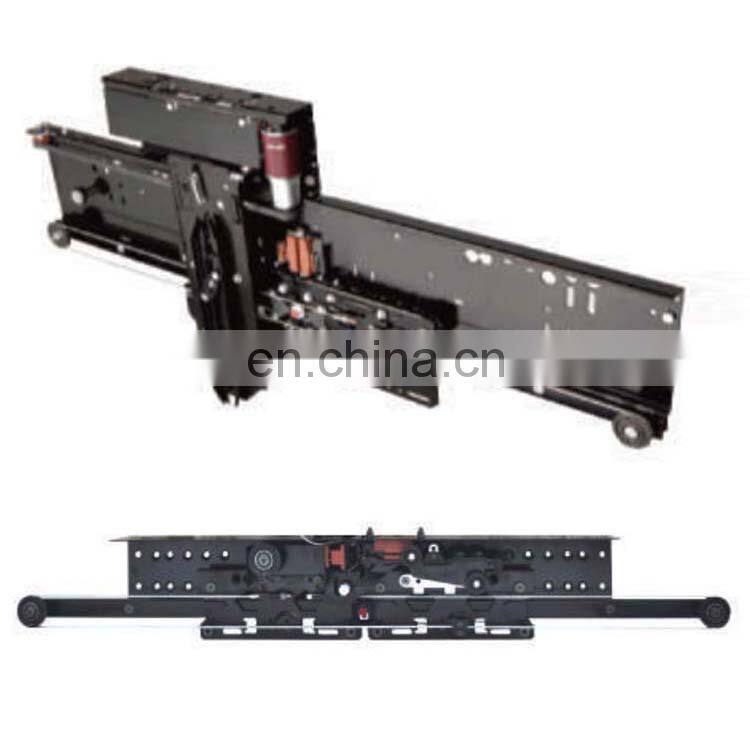

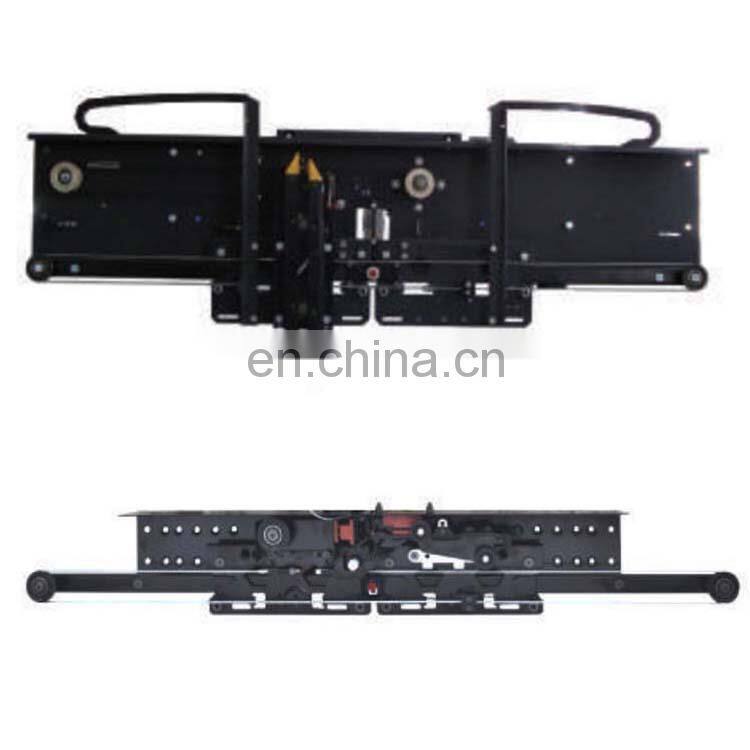

NV31-005 VVVF Control Elevator Door System Automatic Door Operator
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
NV31-005 Door System Center Opening Elevator Landing Door Operator
-
NV31-005 NOVA VVVF Control Center Opening Elevator Door Operator
-
Weco 917a Elevator Door Sensor for Elevator
-
Customized Weco 917a Elevator Photoelectric Door Sensor Price
-
Weco Elevator Photocell Light Curtains for Elevator
-
NV31-005 VVVF Automatic Elevator Landing Door Operator With Painted Door Panel
Product Description
Product Description
Motor:
1. AC induction motor can use vector control and VVVF control. If VVVF control adopted, speed sensor would be
not necessary. The method of control is simple, meanwhile, same controller can drive several similar motors.
2. Vector control, AC induction motor only needs speed information, angle information are not necessary. Therefore,
encoder only adopts increment. Besides, AC induction motor operates without initial position, during application
of door system, not necessary to study pole position and absolute encoder.
3. AC induction motor has no demagnetization problem. AC motor stall torque is rather big, can be applied to more door types.
Controller:
1. The method of control is simple, same controller can drive several similar motors.
2. It is applicable to door open width with heavy load.
Opening Range:
1. Opening width: 600-1400mm, 2 panels center opening or side opening
800-1400mm, 3 panels side opening
700-1800mm, 4 panels center opening
2000-3000mm, 6 panels center opening
2. Opening height: 2000mm or 2100mm
Door Panel Finish:
1. Door panel finish: painted, stainless steel(hairline, mirror, etching)
Elevator door operator, elevator landing door, Fermator door operator, Fermator landing door, door machine, gate operator,
elevator hall door, elevator door hanger, elevator door header
1. AC induction motor can use vector control and VVVF control. If VVVF control adopted, speed sensor would be
not necessary. The method of control is simple, meanwhile, same controller can drive several similar motors.
2. Vector control, AC induction motor only needs speed information, angle information are not necessary. Therefore,
encoder only adopts increment. Besides, AC induction motor operates without initial position, during application
of door system, not necessary to study pole position and absolute encoder.
3. AC induction motor has no demagnetization problem. AC motor stall torque is rather big, can be applied to more door types.
Controller:
1. The method of control is simple, same controller can drive several similar motors.
2. It is applicable to door open width with heavy load.
Opening Range:
1. Opening width: 600-1400mm, 2 panels center opening or side opening
800-1400mm, 3 panels side opening
700-1800mm, 4 panels center opening
2000-3000mm, 6 panels center opening
2. Opening height: 2000mm or 2100mm
Door Panel Finish:
1. Door panel finish: painted, stainless steel(hairline, mirror, etching)
Elevator door operator, elevator landing door, Fermator door operator, Fermator landing door, door machine, gate operator,
elevator hall door, elevator door hanger, elevator door header
Elevator Accessories
Related Products
Shaft Components
Elevator Cabin
Door System
Traction System
Safety Components
Electric Components
·Shaft Components includes
Machined /Cold Drawn/ Hollow Guide Rail, Fishplate, Fasteners, Anchor Bolt, Rail Rracket etc.
·Elevator Cabin includes
Complete Elevaotr Cabin, Car Frame, Counterweight Frame and Counterweight Block,Guide Shoes, Rope Attachment etc.
·Door System includes
Mitsubishi, Fermator and Selcom Door Operator and Landing Door, Door Panel, Door Spare Parts,Safety Light Curtain/Photocell etc.
·Safetey Components includes
Safety Gear, Speed Governor, Rope Brake, Oil Buffer and Rubber Buffer etc.
·Traction System includes
Geared/Gearless Traction Machine, Pulley Sheave,Anti-Vibration Pad,Steel Wire Rope etc.
·Electrical Components inclueds
Integrated and Separated Controlling Cabinet,Yaskawa L1000A Inverter, Elevator Display,COP&LOP&HOP, Elevator Button, Flat
Traveling Cable etc.
Machined /Cold Drawn/ Hollow Guide Rail, Fishplate, Fasteners, Anchor Bolt, Rail Rracket etc.
·Elevator Cabin includes
Complete Elevaotr Cabin, Car Frame, Counterweight Frame and Counterweight Block,Guide Shoes, Rope Attachment etc.
·Door System includes
Mitsubishi, Fermator and Selcom Door Operator and Landing Door, Door Panel, Door Spare Parts,Safety Light Curtain/Photocell etc.
·Safetey Components includes
Safety Gear, Speed Governor, Rope Brake, Oil Buffer and Rubber Buffer etc.
·Traction System includes
Geared/Gearless Traction Machine, Pulley Sheave,Anti-Vibration Pad,Steel Wire Rope etc.
·Electrical Components inclueds
Integrated and Separated Controlling Cabinet,Yaskawa L1000A Inverter, Elevator Display,COP&LOP&HOP, Elevator Button, Flat
Traveling Cable etc.
Company Profile
Exhibition
Product Packaging
FAQ
1. Price
Re: please send us inquiry from , we will qutoe to you within 24 hours. It’s more convenient and appreciated for us if you provide your company details and your detail inquiry for elevators.
2. Payment term
Re: T/T or L/C at sight.
3. Installation&Maintaining
Re: We will send installation&maintaining manual along with the elevator.
Our sugguestion is to hire a professional local company for installation and future maintaining,
once you need any technical assistant from us, just don't hesitate to contact us by mail or phone.
Technician will be sent to the job site if necessary.
4. Shipping&price term
Re: Both FOB/CIF/CFR price term are ok, we have reliable forwarder helping arrange the shipment for you.
