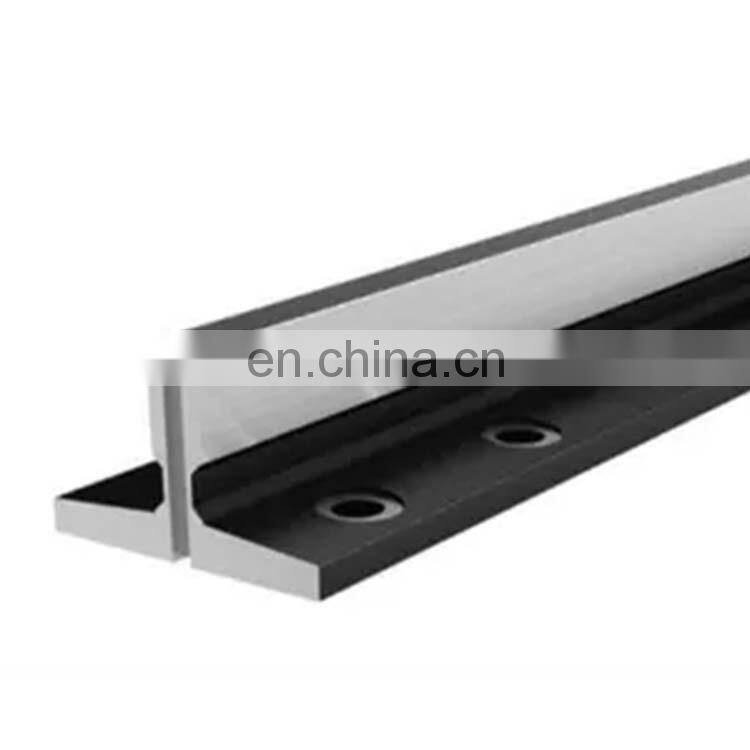

Elevator Guide Rail T45 T50 T70 With Elevator Slide Forged Clip
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Cold Drawn 16mm T-type Elevator Guide Rails Size for Sale
-
Elevator B-class T127-2/B Machined Guide Rail Alignment
-
T127-2/B 16mm Machined Metal Elevator Guide Rails
-
T127-2/B 16mm Machined Metal Elevator Guide Rails Price
-
New Product T Type 16mm Elevator Guide Rail T89
-
Elevator Shaft Components 9mm T89 Guide Rail Price
Product Description
Product Description
Type:
1. Machined Elevator Guide Rail
2. Cold Drawn Elevator Guide Rail
3. Hollow Elevator Guide Rail
4. Customized Elevator Guide Rail
5. Cold drawn elevator guide rail fishplates, machined elevator guide rail fishplates, special thicness fishplates, T section fishplates, forged clips, sliding clamps, sliding clips, T-clips
Standard: ISO 7465.
Model: T45A, T50A, T70B, T75B, T78B, T82B, T89B, T90B, T114B, T127B, TK3, TK3A, TK5, TK5A.

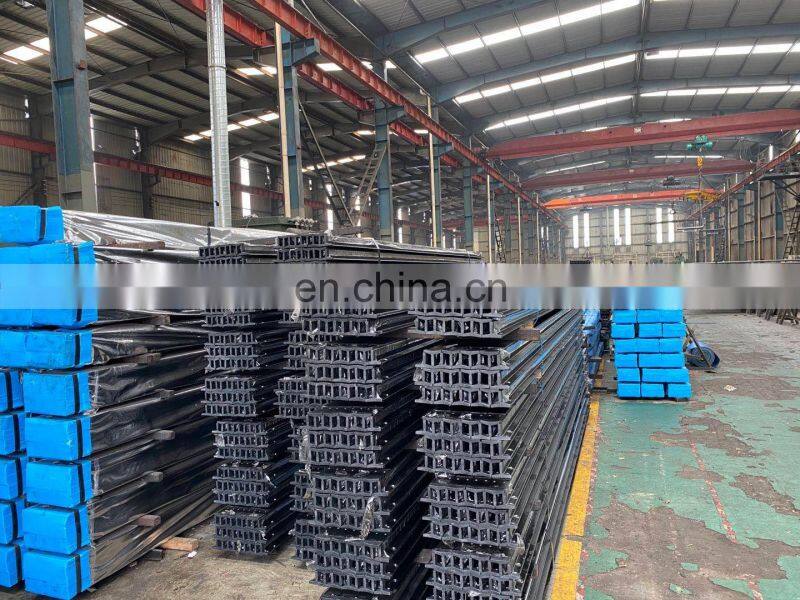

Packing: Our guide rails are packed in bundles with protective sheathes protecting both ends, each bundle repacked in blue plastic sheeting. We can also pack as per your request.

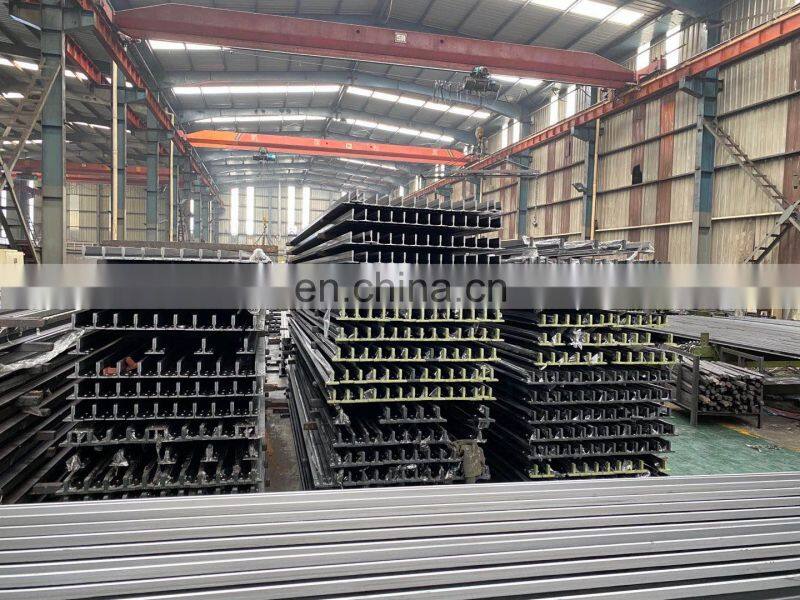

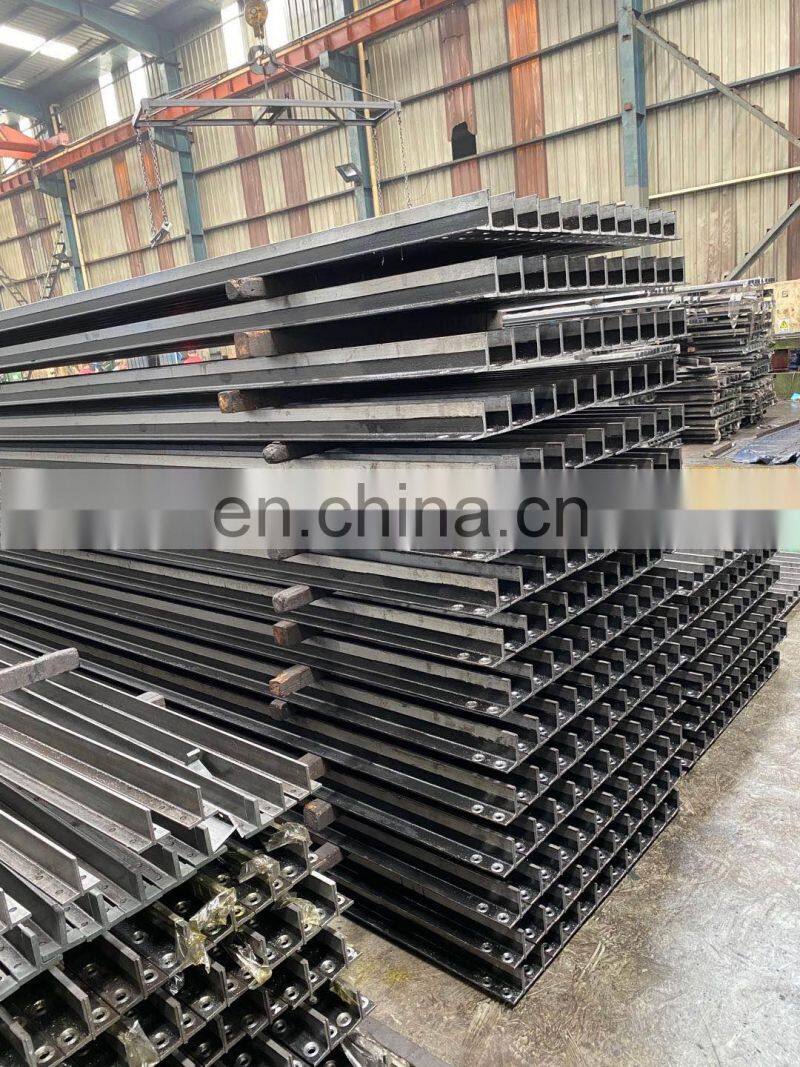

Details Images

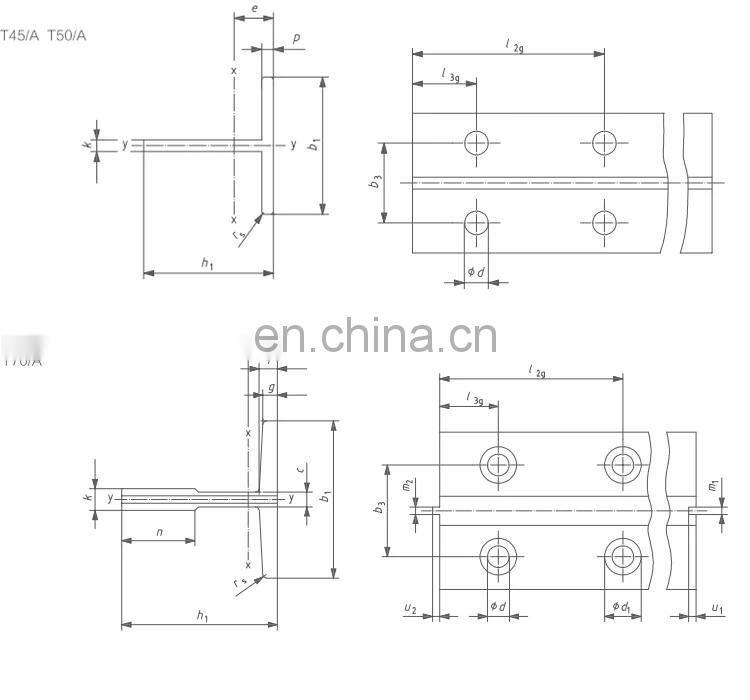

Product Paramenters
Model | Guide Rail Size | Fishplate Size | Clip | Screw |
T45/A | 45mm*45mm*5mm | 160*50*8mm | 8K | M8*25 |
T50/A | 50mm*50mm*5mm | 200*50*8mm | 8K | M8*25 |
T70-1/B | 70mm*65mm*9mm | 250*70*10mm | 8K | M12*35 |
T75-3/B | 75mm*62mm*10mm | 240*75*10mm | 8K | M12*35 |
T78/B | 78mm*56mm*10mm | 240*75*10mm | 8K | M12*35 |
T82/B | 82.5mm*68.25mm*9mm | 216*80*10mm | 13K | M12*35 |
T89/B | 89mm*62mm*16mm | 280*90*13mm | 13K | M12*40 |
T90/B | 90mm*75mm*16mm | 280*90*13mm | 13K | M12*40 |
T114/B | 114mm*89mm*16mm | 300*115*18mm | 18K | M16*50 |
T127-2/B | 127mm*89mm*16mm | 300*130*18mm | 24K | M16*55 |
TK3 | 75mm*55mm*10mm | 220*72*2.5mm | 3K | M8*25 |
TK3A | 78mm*60mm*16.4mm | 200*78*4mm | 3K | M8*25 |
TK5 | 87mm*60mm*16.4mm | 350*87*4mm | 5K | M10*25 |
TK5A | 78mm*60mm*16.4mm | 200*78*4mm | 5K | M10*25 |
Hot Products
Elevator Guide Rail
Elevator Door Operator
Elevator Speed Governor
Elevator Cabin
Elevator Controller
Elevator Traction Machine
Company Profile
Exhibition
Product Packaging
FAQ
1. Price
Re: please send us inquiry from , we will qutoe to you within 24 hours. It’s more convenient and appreciated for us if you provide your company details and your detail inquiry for elevators.
2. Payment term
Re: T/T or L/C at sight.
3. Installation&Maintaining
Re: We will send installation&maintaining manual along with the elevator.
Our sugguestion is to hire a professional local company for installation and future maintaining,
once you need any technical assistant from us, just don't hesitate to contact us by mail or phone.
Technician will be sent to the job site if necessary.
4. Shipping&price term
Re: Both FOB/CIF/CFR price term are ok, we have reliable forwarder helping arrange the shipment for you.
