Home > Products > Elevator Parts > Factory Price T90/B Elevator Guide Rail Clips
Factory Price T90/B Elevator Guide Rail Clips
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Good Price M10 Elevator Anchor Bolts Prices
-
Elevator Shaft Components Parts Elevator Guide Rail T89 Price
-
NV15-B1/B1 Elevator Shaft Components Guide Rail Bracket
-
Elevator Parts NOVA Lift Elevator Rail Clip for Guide Rail
-
High Quality Iron Material Elevator Guide Rail Forged Shaft Clip
-
Good Quality Elevator Roller Guide Shoes Compensation Chain Guide
Product Description
Product Description

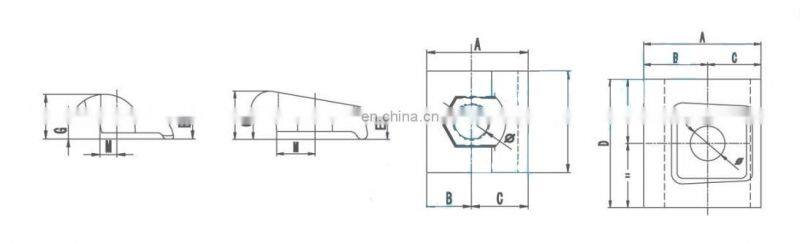

Product Paramenters
Type | Designation | Dimensions(mm) | ||||||||
A | B | C | D | E | ||||||
NV75 | T75-3/B | 30 | 15 | 15 | 30 | 10.5 | ||||
NV89 | T89/B | 32 | 16 | 16 | 38 | 11 | ||||
NV90 | T90/B | 32 | 16 | 16 | 38 | 11 | ||||
NV114 | T114/B | 50 | 22 | 28 | 50 | 14 | ||||
NV1271 | T127-1/B | 50 | 22 | 28 | 50 | 14 | ||||
NV1272 | T127-2/B | 50 | 22 | 28 | 50 | 17 | ||||
NV1401 | T140-1/B | 50 | 22 | 28 | 50 | 17 | ||||
NV1402 | T140-2/B | 70 | 38 | 32 | 65 | 16 | ||||
NV1403 | T140-3/B | 70 | 38 | 32 | 76 | 19 | ||||
Type | Designation | Dimensions(mm) | ||||||||
F | G | M | φ | Bolt | ||||||
NV75 | T75-3/B | 15 | 4.5 | 3 | 9 | M8 | ||||
NV89 | T89/B | 16 | 5 | 6 | 13 | M12 | ||||
NV90 | T90/B | 16 | 5 | 6 | 13 | M12 | ||||
NV114 | T114/B | 22 | 5 | 7.5 | 17 | M16 | ||||
NV1271 | T127-1/B | 22 | 5 | 7.5 | 17 | M16 | ||||
NV1272 | T127-2/B | 25 | 8 | 8 | 17 | M16 | ||||
NV1401 | T140-1/B | 25 | 8 | 8 | 17 | M16 | ||||
NV1402 | T140-2/B | 25.5 | 12.5 | 24 | 20.5 | M18 | ||||
NV1403 | T140-3/B | 28.5 | 19 | 24 | 20.5 | M18 | ||||
Type | Designation | Dimensions(mm) | ||||||||
A | B | C | D | E | ||||||
NV-SL1 | T89/B | 76 | 70 | 31 | 5 | 9 | ||||
T90/B | 76 | 70 | 31 | 5 | 9 | |||||
NV-SL2 | T114/B | 76 | 70 | 31 | 5 | 9 | ||||
T127-1/B | 76 | 70 | 31 | 5 | 9 | |||||
NV-SL3 | T127-2/B | 76 | 70 | 33 | 5 | 14.5 | ||||
T140-1/B | 76 | 70 | 33 | 5 | 14.5 | |||||
T140-2/B | 76 | 70 | 33 | 5 | 14.5 | |||||
Type | Designation | Dimensions(mm) | ||||||||
F | G | - | φ | Bolt | ||||||
NV-SL1 | T89/B | 14.5 | 18.5 | - | 13 | M12 | ||||
T90/B | 14.5 | 18.5 | - | 13 | M12 | |||||
NV-SL2 | T114/B | 14.5 | 18.5 | - | 17.5 | M16 | ||||
T127-1/B | 14.5 | 18.5 | - | 17.5 | M16 | |||||
NV-SL3 | T127-2/B | 20.5 | 19 | - | 17.5 | M16 | ||||
T140-1/B | 20.5 | 19 | - | 17.5 | M16 | |||||
T140-2/B | 20.5 | 19 | - | 17.5 | M16 | |||||
