Clearance T50/A Low Price Linear Guide Rail Lift Escalator Spare Parts

Jingjiang Fuji Technology Co., Ltd.
4Yrs
Clearance T50/A Low Price Linear Guide Rail Lift Escalator Spare Parts thumbnail-1
Clearance T50/A Low Price Linear Guide Rail Lift Escalator Spare Parts thumbnail-2
Clearance T50/A Low Price Linear Guide Rail Lift Escalator Spare Parts thumbnail-3
Clearance T50/A Low Price Linear Guide Rail Lift Escalator Spare Parts thumbnail-4
Clearance T50/A Low Price Linear Guide Rail Lift Escalator Spare Parts thumbnail-5
Clearance T50/A Low Price Linear Guide Rail Lift Escalator Spare Parts photo-1
Clearance T50/A Low Price Linear Guide Rail Lift Escalator Spare Parts photo-2
Clearance T50/A Low Price Linear Guide Rail Lift Escalator Spare Parts photo-3
Clearance T50/A Low Price Linear Guide Rail Lift Escalator Spare Parts photo-4
Clearance T50/A Low Price Linear Guide Rail Lift Escalator Spare Parts photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

Type:

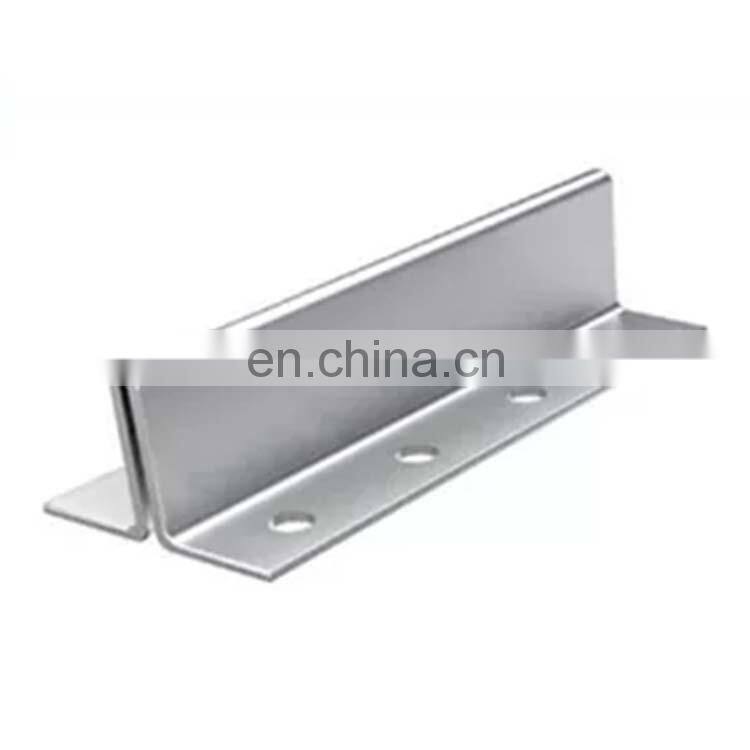

1. Machined Elevator Guide Rail 2. Cold Drawn Elevator Guide Rail 3. Hollow Elevator Guide Rail 4. Customized Elevator Guide Rail 5. Cold drawn elevator guide rail fishplates, machined elevator guide rail fishplates, special thicness fishplates, T section fishplates, forged clips, sliding clamps, sliding clips, T-clips

Standard: ISO 7465. Model: T45A, T50A, T70B, T75B, T78B, T82B, T89B, T90B, T114B, T127B, TK3, TK3A, TK5, TK5A. Packing: Our guide rails are packed in bundles with protective sheathes protecting both ends, each bundle repacked in blue plastic sheeting. We can also pack as per your request.
Product Paramenters
Model
Guide Rail Size
Fishplate Size
Clip
Screw
T45/A
45mm*45mm*5mm
160*50*8mm
8K
M8*25
T50/A
50mm*50mm*5mm
200*50*8mm
8K
M8*25
T70-1/B
70mm*65mm*9mm
250*70*10mm
8K
M12*35
T75-3/B
75mm*62mm*10mm
240*75*10mm
8K
M12*35
T78/B
78mm*56mm*10mm
240*75*10mm
8K
M12*35
T82/B
82.5mm*68.25mm*9mm
216*80*10mm
13K
M12*35
T89/B
89mm*62mm*16mm
280*90*13mm
13K
M12*40
T90/B
90mm*75mm*16mm
280*90*13mm
13K
M12*40
T114/B
114mm*89mm*16mm
300*115*18mm
18K
M16*50
T127-2/B
127mm*89mm*16mm
300*130*18mm
24K
M16*55
TK3
75mm*55mm*10mm
220*72*2.5mm
3K
M8*25
TK3A
78mm*60mm*16.4mm
200*78*4mm
3K
M8*25
TK5
87mm*60mm*16.4mm
350*87*4mm
5K
M10*25
TK5A
78mm*60mm*16.4mm
200*78*4mm
5K
M10*25




Permanent magnet synchronous toothless traction machine
Using the permanent magnet synchronous gearless traction machine as the power source, it is small in size and compact in
structure, which can meet the design requirements of small machine room and provide more free design space for architectural
design.



The new generation control system is combined with the elevator control with drive.
It brings compact structure,smaller
volume,more convenient operation and more favorable cost performance


005 Two Panels Center Parting Car Door Operator Features: 1. Modularity (various combinations between drives and models) 2. Smooth operation even at high speeds. 3. Safety, comfortable, low noisy, stable and better quality, high life time
Optional Accessories

Company Profile
Hot Products

Elevator Guide Rail

Elevator Door Operator

Elevator Speed Governor

Elevator Cabin

Elevator Controller

Elevator Traction Machine

Cooperation Team/Participate in international exhibitions

The Packing:

The packing material will use PLY WOOD BOXES & BUNDLES as standard export packing
12-20 packages for each elevator, depends on different parameters.
1 set passenger elevator fit in 1*20FT container
2~3 sets passenger elevators fit in 1*40FT container/ 1*40HQ container

The Delivery Time:

20-28 working days upon signed documents and deposit received.
Port of loading: Shanghai Port, China.
FAQ
Q1:Are you a trading company or a manufacturer?
1:We are manufacturer.We have our own factory and trading company.

Q2:How can I order?
A2:Please send enquiry from ,Click "Contact Now".Please let me know the specification of elevator.

Q3:Can you cheaper?Another company lower than you.
A4:The quality of the product determines the price. Just like the BMW and other cars, We use high quality materials and advanced
technology.We provide you with quality products and best services. Please know that the value for money is good.

Q4:Can I customize the elevator?
A4:Of course, please tell me your requirements and parameters or drawings, we can also design drawings for you to confirm.

Q5:How about warranty?
A5:Every unit we can follow by our GPS system,if any problem we can tell you how to fix it

Q6:Payment and Price terms?
A6:Mainly according to your requirements, but we recommend using L/C at sight or 30% T/T In Advance,balance before shipping.

Q7:What is your delivery time?
A7:Our delivery time is based on the quantity of your order.
