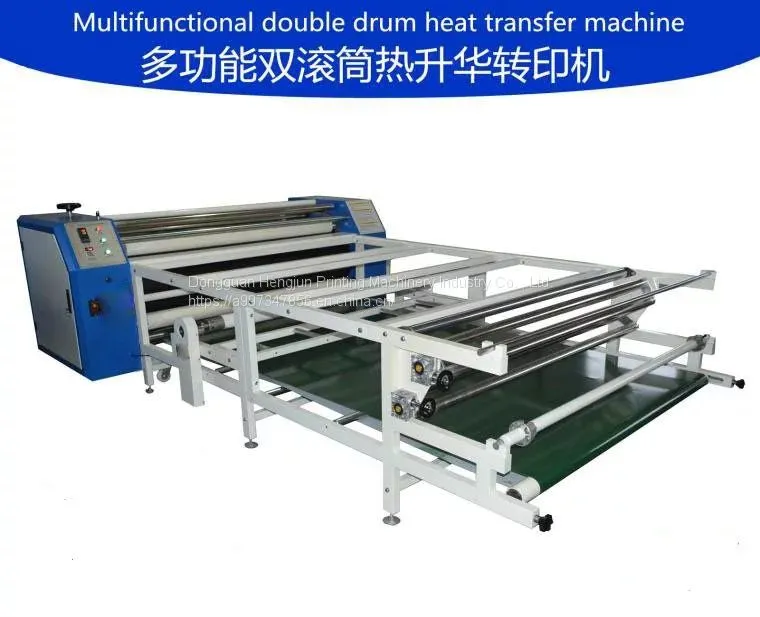

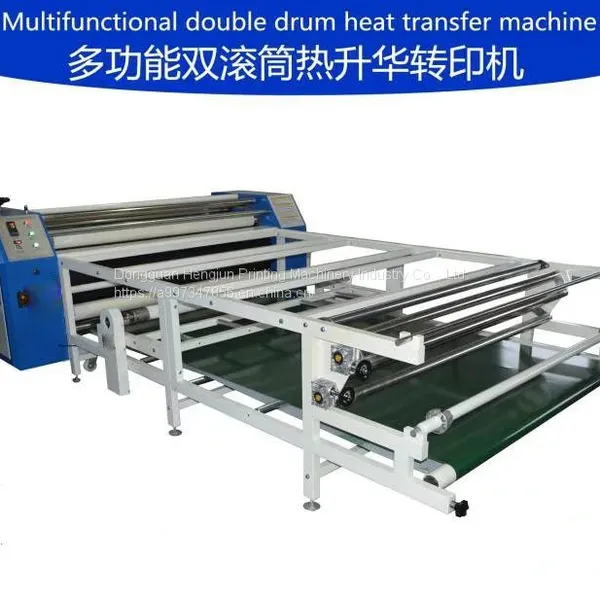

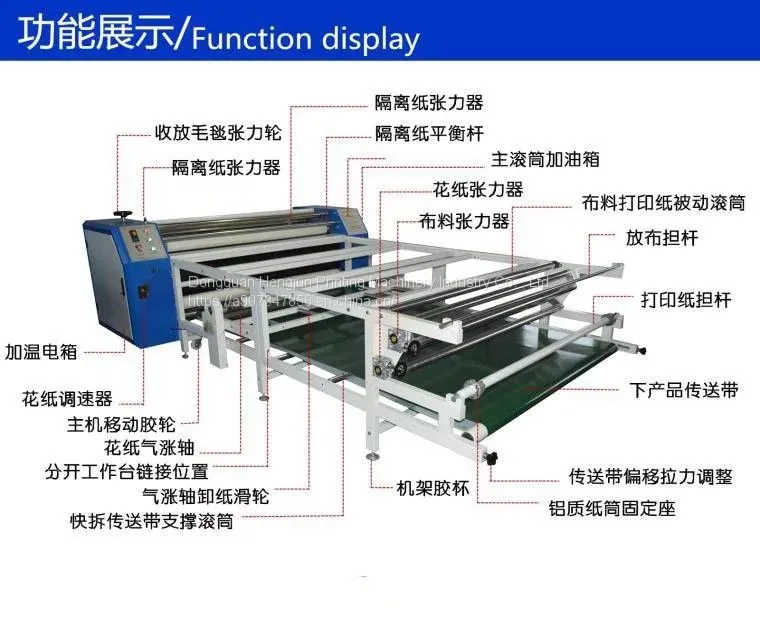

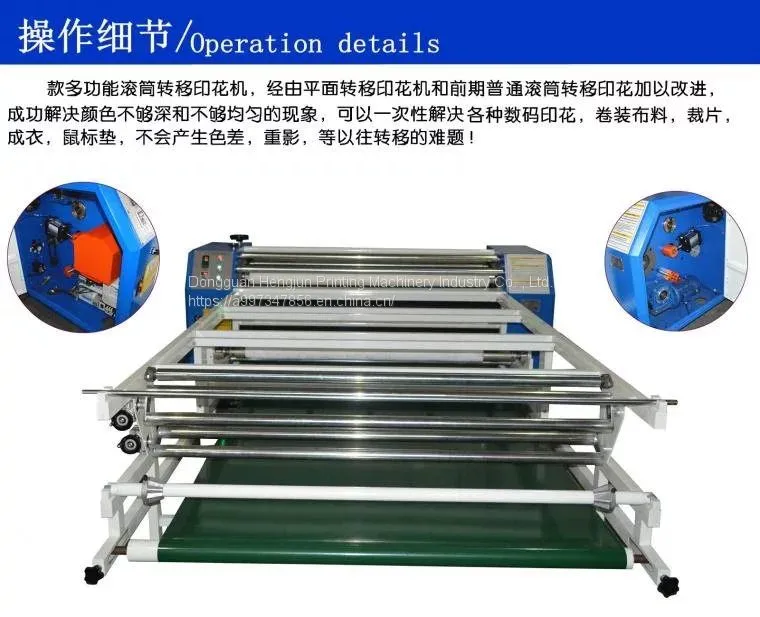

Digital roller sublimation transfer machine hengjun automatic roller pressing machine Cloth roller pressing machine
The heating tube is made of stainless steel imported from Taiwan. The heating tube is all immersed in heat-conducting oil to heat up and heat up. The heating speed is fast, and the energy saving is more than 15%.
2. The surface of the heating drum is treated with Teflon, which is anti-sticking (to prevent the end of the thread from sticking to the drum), and it is safe. The temperature inside the drum is more stable, ensuring that the temperature of each point on the surface is consistent, and the transfer has no color difference. Adopt high-quality seamless tube drum, drum outer/inner circle precision lathe, drum outer circle precision grinding, and then plated with Teflon to ensure that the temperature of each point is consistent. The double-layer roller heats more evenly, and the transfer effect has no color difference..
3. The felt belt is made of American DuPont material, with good transfer effect and long service life.
4. Pneumatic pressure device can be adjusted according to different materials, the transfer speed is faster and the color is more vivid.
5. Using the frequency converter, the printing speed can be adjusted freely, and the transfer speed is more stable.

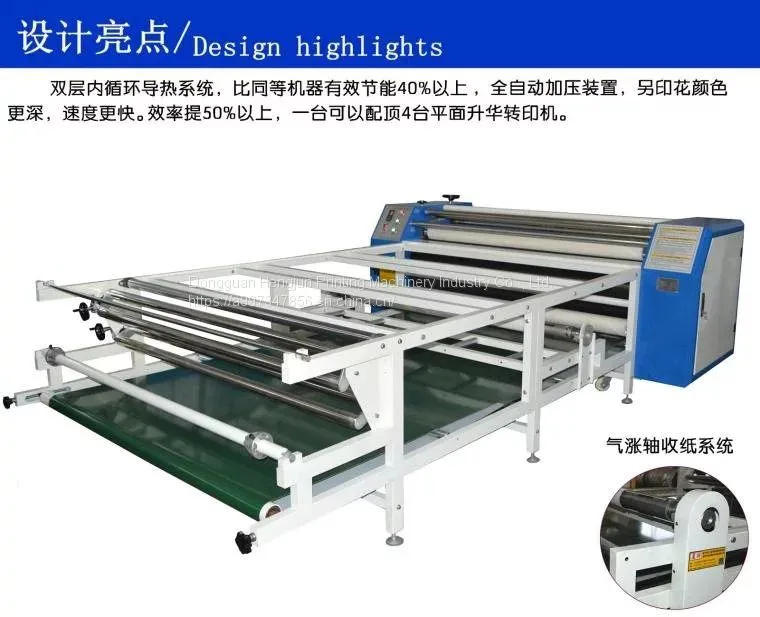

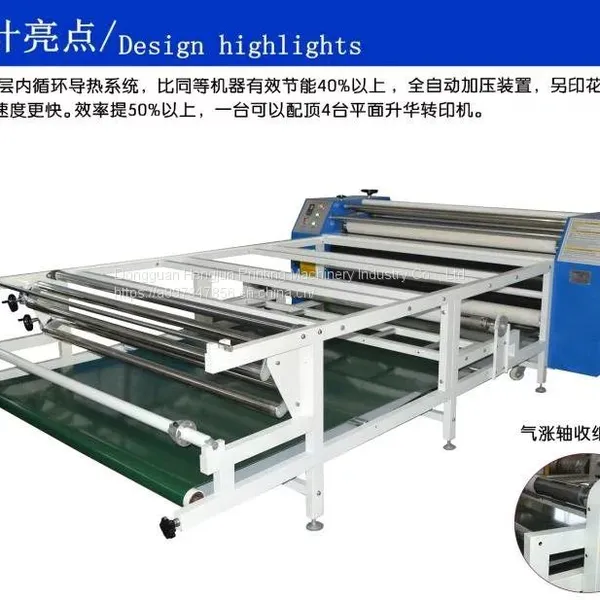

6. The air-expansion shaft collects the decal paper and the bottom paper, which saves labor, and the paper is collected more and more firmly.
7. Adjust the deviation axis of each precision lathe, grind it, and then plated with platinum. The error is controlled within 2 C. Make the blanket not deviated under normal operation.
8. The main wall panel (electric box) is made of 10 cm thick stainless steel plate. Wire cutting, high precision and smaller error.
9.Blanket separation type. When power failure or shutdown, the blanket and the roller can be separated to better protect the blanket and prolong its life.
10. Carbon brush conductive heating, more stable and safe electrical conductivity.
11. Imported speed-adjustable frequency conversion motor, which can adjust the speed according to different transfer materials.
12. The digital display of the control table, the temperature and time can be controlled, and the precision is higher.
13. Carpet belt transmission function. After the product is transferred, it is transferred to the back of the work frame through the conveyor belt, which saves labor. The upper and lower conveying function is optional, and the efficiency is higher.
14. The machine is equipped with a timed shutdown function, and the machine automatically shuts down after idling for 2 hours. It is convenient for the machine to cool down without turning off after get off work.
15. The machine adopts the function of three openings and two closings, with a 3.5-meter work frame, suitable for transfer printing: cut pieces, matching cloth (roll) and ready-to-wear
Specifications of roller transfer printing machine:
Roller diameter: 377MM / 420MM / 600MM / 800MM.
Regular width: 60CM / 90CM / 1.2M / 1.7M / 2.0M / 2.2M / 2.5M
Roller diameter 377MM, transfer digital paper speed 1.5 m/min, transfer gravure paper 2.5 m/min.
Roller diameter 420MM, transfer digital paper speed 2.5m/min, transfer gravure paper 4m/min.
Roller diameter 600MM, transfer digital paper speed 5 m/min, transfer gravure paper 8 m/min.
Roller diameter 800MM, transfer digital paper speed 8 m/min, transfer gravure paper 12 m/min.
Our company can accept various specifications: the diameter of the drum can be up to 2.5 meters, and the width of the drum can be up to 4 meters. According to customer requirements, we can provide the most suitable and practical solutions.
