Product Description

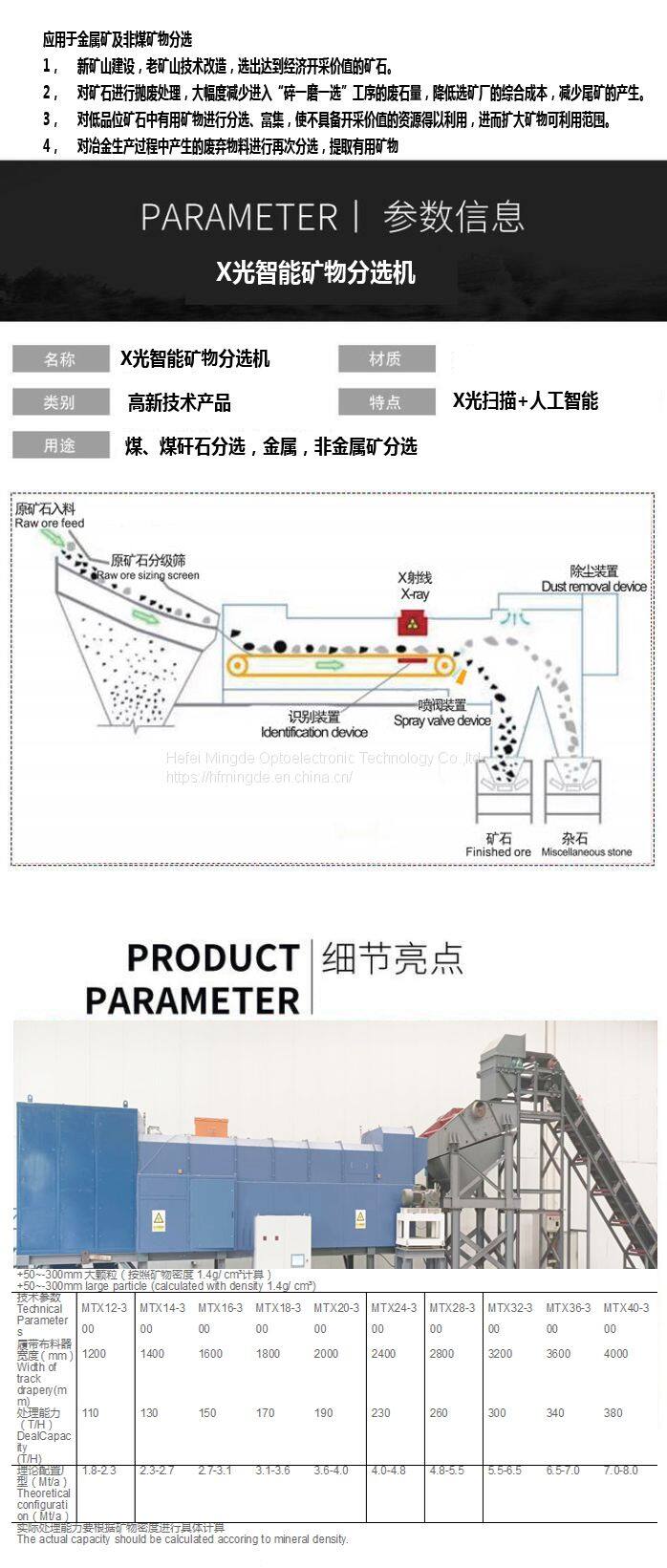

X-ray intelligent mineral sorting machine uses X-ray to transmit scanning of the selected ore, obtains the atomic number data of the minerals, processes the data by means of convolutional neural network and other means, establishes an identification model, identifies the ore and miscellaneous stones, and then drives the actuator to sort the ore. It is also possible to add visible or infrared cameras for composite identification according to the different characteristics of the ore to further improve the sorting accuracy.
Mingde MTX series X-ray intelligent mineral sorter can handle ore size from 300mm to 10mm. For example , According to the mineral density of 1.4g/cm³, the processing capacity of one unit can reach up to 380t/hour. The specific selection table is as follows
|
+50~-300mm density1.4g/cm³ +50~-300mm large particle (calculated with density 1.4g/ cm³) | ||||||||||
|
Technical Parameters |
MTX12-300 |
MTX14-300 |
MTX16-300 |
MTX18-300 |
MTX20-300 |
MTX24-300 |
MTX28-300 |
MTX32-300 |
MTX36-300 |
MTX40-300 |
|
Width of track drapery(mm) |
1200 |
1400 |
1600 |
1800 |
2000 |
2400 |
2800 |
3200 |
3600 |
4000 |
|
DealCapacity (T/H) |
110 |
130 |
150 |
170 |
190 |
230 |
260 |
300 |
340 |
380 |
|
（Mt/a） Theoretical configuration（Mt/a） |
1.8-2.3 |
2.3-2.7 |
2.7-3.1 |
3.1-3.6 |
3.6-4.0 |
4.0-4.8 |
4.8-5.5 |
5.5-6.5 |
6.5-7.0 |
7.0-8.0 |
|
The actual capacity should be calculated accoring to mineral density. | ||||||||||
|

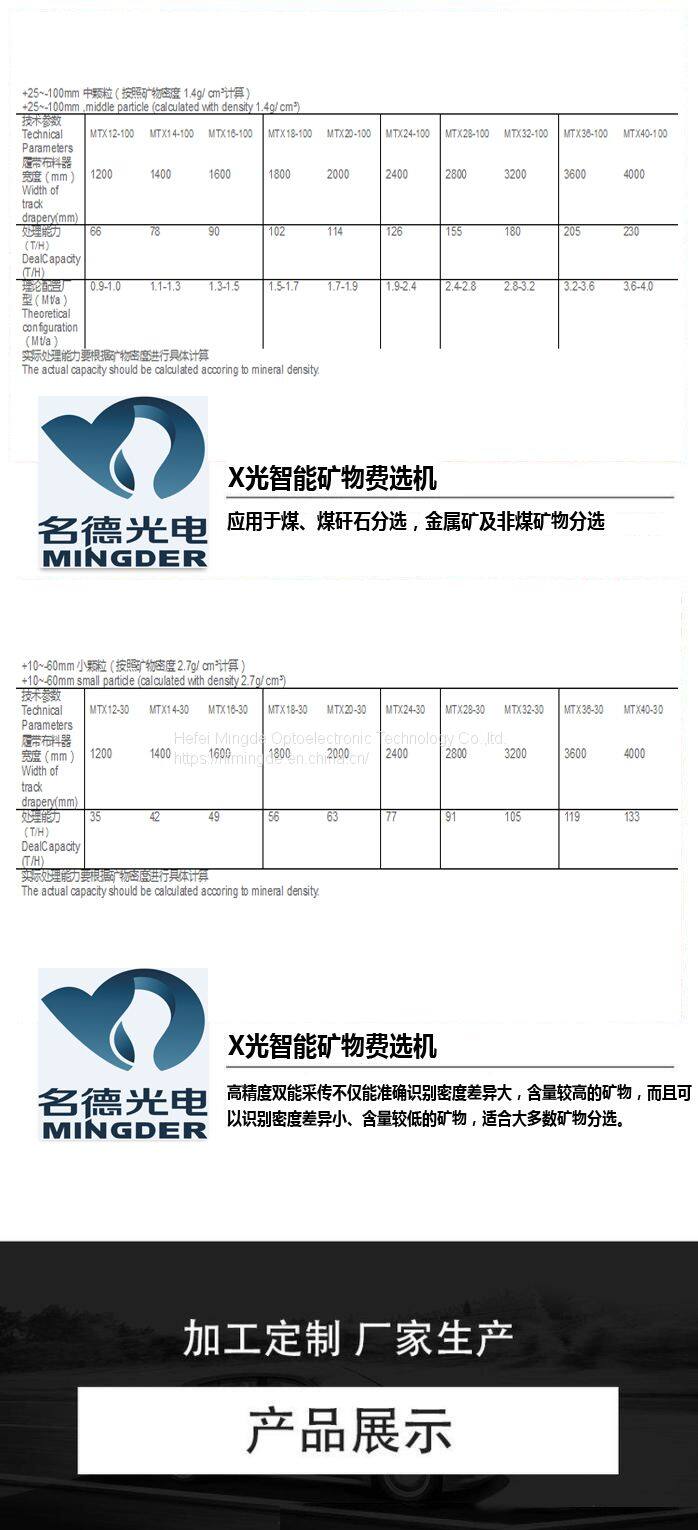

+25~-100mm（density1.4g/ cm³） +25~-100mm ,middle particle (calculated with density 1.4g/ cm³) | ||||||||||
Technical Parameters |
MTX12-100 |
MTX14-100 |
MTX16-100 |
MTX18-100 |
MTX20-100 |
MTX24-100 |
MTX28-100 |
MTX32-100 |
MTX36-100 |
MTX40-100 |
|
Width of track drapery(mm) |
1200 |
1400 |
1600 |
1800 |
2000 |
2400 |
2800 |
3200 |
3600 |
4000 |
|
DealCapacity (T/H) |
66 |
78 |
90 |
102 |
114 |
126 |
155 |
180 |
205 |
230 |
|
Theoretical configuration（Mt/a） |
0.9-1.0 |
1.1-1.3 |
1.3-1.5 |
1.5-1.7 |
1.7-1.9 |
1.9-2.4 |
2.4-2.8 |
2.8-3.2 |
3.2-3.6 |
3.6-4.0 |
|
The actual capacity should be calculated accoring to mineral density. | ||||||||||
|
+10~-60mm（density2.7g/ cm³） +10~-60mm small particle (calculated with density 2.7g/ cm³) | ||||||||||
Technical Parameters |
MTX12-30 |
MTX14-30 |
MTX16-30 |
MTX18-30 |
MTX20-30 |
MTX24-30 |
MTX28-30 |
MTX32-30 |
MTX36-30 |
MTX40-30 |
|
Width of track drapery(mm) |
1200 |
1400 |
1600 |
1800 |
2000 |
2400 |
2800 |
3200 |
3600 |
4000 |
|
DealCapacity (T/H) |
35 |
42 |
49 |
56 |
63 |
77 |
91 |
105 |
119 |
133 |
|
The actual capacity should be calculated accoring to mineral density. | ||||||||||
Application to the sorting of coal and gangue
1,The wide processing range of particle size can effectively sorting +10mm ~ -300mm granules.
2, The sorting accuracy is high,the discharge gangue rate is more than > 96% , and the carryover rate in 1-3%.
3、Low energy consumption per unit, the average power consumption is less than 1kw h/t.
4、Fully Automatic intelligent production, unattended operation. Unit equipment can replace 5-10 manual candidates, reduce the work intensity of workers and improve productivity.
The following ores we can sort
1、Nonferrous metal ore: Lead zinc ,aluminum, zinc, copper, molybdenum, nickel, gold, silver, tin, etc.
2、Ferrous metal ores: manganese, iron, chromium, vanadium, titanium, tungsten, etc.
3, non-metallic ores: fluorite, brucite , magnesite, coal and coal gangue, etc.
4, other: phosphate ore, perlite, solid waste waste, smelting slag, etc.
