Universal High Voltage Capacitor CH85 2100V AC H.V.Capacitor

Jingjiang Fuji Technology Co., Ltd.
4Yrs
Universal High Voltage Capacitor CH85 2100V AC H.V.Capacitor thumbnail-1
Universal High Voltage Capacitor CH85 2100V AC H.V.Capacitor thumbnail-2
Universal High Voltage Capacitor CH85 2100V AC H.V.Capacitor thumbnail-3
Universal High Voltage Capacitor CH85 2100V AC H.V.Capacitor thumbnail-4
Universal High Voltage Capacitor CH85 2100V AC H.V.Capacitor thumbnail-5
Universal High Voltage Capacitor CH85 2100V AC H.V.Capacitor photo-1
Universal High Voltage Capacitor CH85 2100V AC H.V.Capacitor photo-2
Universal High Voltage Capacitor CH85 2100V AC H.V.Capacitor photo-3
Universal High Voltage Capacitor CH85 2100V AC H.V.Capacitor photo-4
Universal High Voltage Capacitor CH85 2100V AC H.V.Capacitor photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

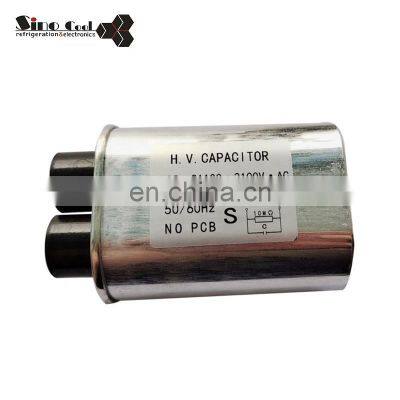

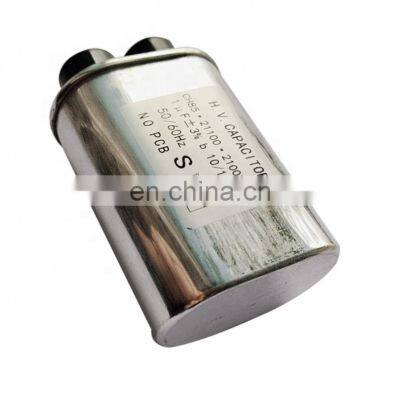

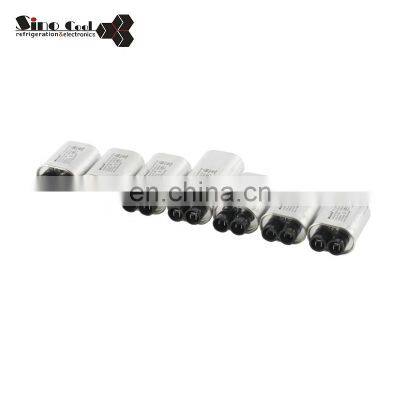

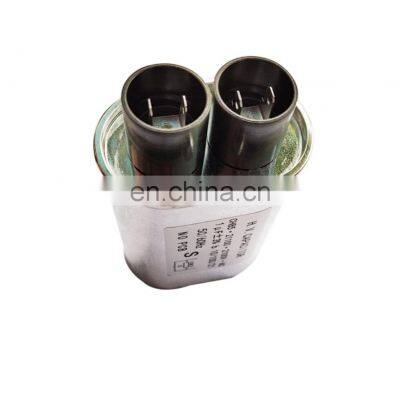

CH85/CH86 Capacitor for Microwave Ovens


Features:

The capacitor is applied in industry and Mirrowave Ovens etc. The product is composite dielectric structure by oil immersion

The capacitor has advantage of good heat dissipation ,high pressure value,small dimension,small dielectric loss,high capacity precision,And it can be work stably with voltage for long time ,it is safe and reliable

Ambient Temp.
Rated Voltage
Range of Capacitance
Testing Volatge
Discharge Resistance
Operating Frequency
-10~85°C
≦3000VAC
0.5~1.4uF
T_T : DC4.3Un*1.05/10S
T_C : AC 10000V/60S
10±20%
50/60Hz
Outline Size:
Rated Cap
L±1
B±1
H±5
Rated Cap
L±1
B±1
H±5
0.50uf
32
52
60
0.92uf
32
52
70
0.60uf
32
52
60
0.95uf
32
52
75
0.65uf
32
52
60
1.00uf
32
52
75
0.70uf
32
52
65
1.05uf
32
52
75
0.75uf
32
52
65
1.07uf
32
52
80
0.80uf
32
52
70
1.10uf
32
52
80
0.85uf
32
52
70
1.15uf
32
52
85
0.90uf
32
52
70
1.20uf
32
52
90
Technical Parameters:
Reference standard
GB/T18939.1,IEC61270-1,VDE0560 PART2,JIS C 4908
Climatic category
10/85/21
Rated voltage
2100VAC/2500VAC(50/60Hz)
Capacitance range
0.5uf~1.2uf
Capacitance tolerance
±3% ~ ±4%

Test voltage
T-T
4.3*UN (VCD)/10s
T-C
2.4*Um + 1200 (VAC)/1s
Dissipation factor (at 20 °C)
≦0.003(1KHz)
Service Rating
Standard (S)
Standard Outline size (Unit :mm)
Products Show

CBB65 ROUND RUN CAPACITOR

          SPP SERIES STATR CAPACITOR

          CBB65 OVAL RUN CAPACITORS

     CBB60 SERIES RUN CAPACITORS

    CD60 SERIES START CAPACITORS

          CBB61 SERIES RUN CAPACITOR

Drawing
Show Room
Packing
Our Service

1.Accept OEM & ODM for customer

2.Free samples offer &Small order welcomed

3.Two years quality guarantee

4.Printing : ink & laser , aslo have sticker label

5.Packing : 50PCS/CTN , have industrial packing and color box packing


Exhibition

               ARH Exhibition in USA

                    IHE Exhibition in Iran

              ISK-SODEX Exhibition in Turkey

                 Vietnam Exhibition

                      Thailand Exhibition

                         Indonesia Exhibition
