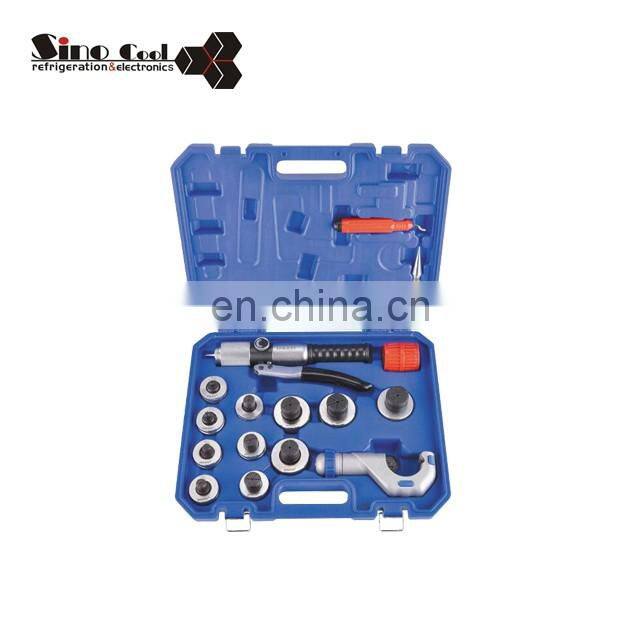

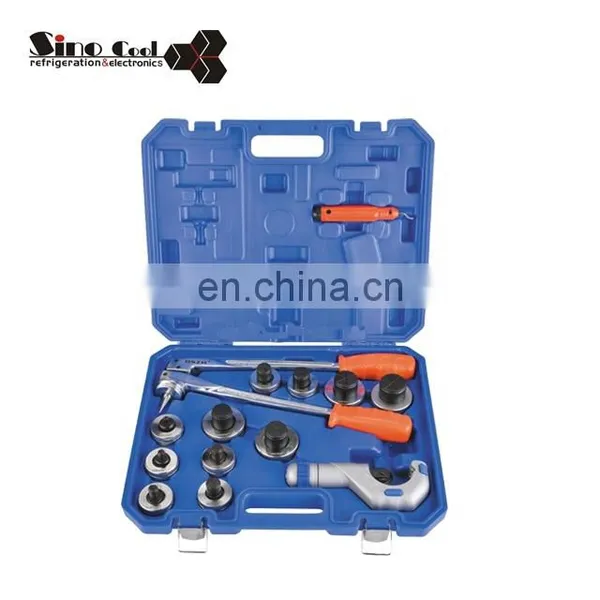

Universal Copper Tube Expander PEX Pipe Expander Tool For HVAC Tool CT-300AL
Advantage:
1.No copper coupling needed any more,Save cost of material.
2.Only one side need to be welded.Save cost and reduce possibility of leak.
3.Manual hydraulic mechanism design can expand tubings from 10mm to 42mm diameter.
4.Used for soft copper tube,Alumimum tube,Titanium tube,soft steel and other soft tube.

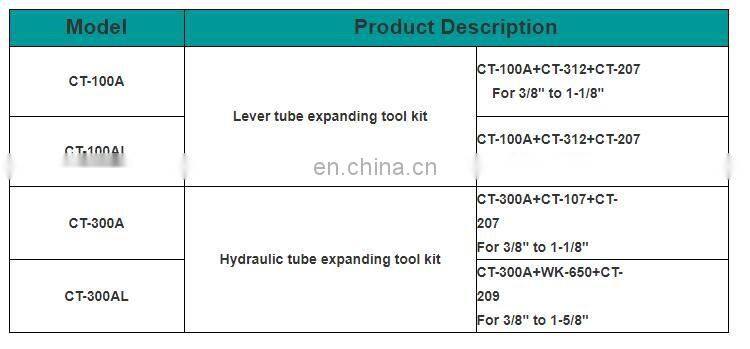

Model | CT-300AL |
Brand Name | Sino Cool |
Tool Name | Tube Expander |
Swage Adapters | 3/8",1/2",5/8",3/4",7/8",1",1-1/8",1-1/4",1-3/8",1-1/2",1-5/8" O.D. Tubing. |

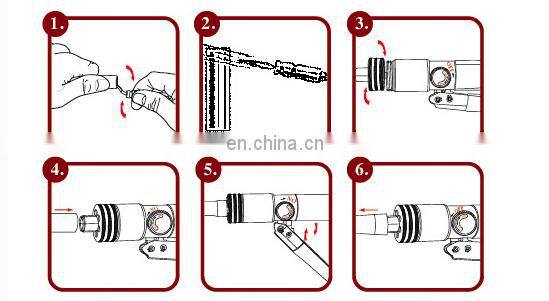

SIX EASY STEPS:
1.Deburr inside of tube.
2.Anneal the tube if necessary(for hard or thickwall tube).
3.Screw the expander head on expander.
4.Put the end of tube on expander head.
5.Tighten the relief valve knob to'On'position then pump handle until tube is expanded to the end.
6.Turn the relief valve knob to'OFF'possition to loosen expander head.Remove expanded tube.
SinoCool Refrigeration & Electronics Co.Ltd. is a large modern enterprise specializing in refrigeration accessories, we deal with the spare parts more than 10 years. Now have 1500kinds spare parts for Air conditioner , Refrigerator, Washing machine, Oven, Cold room;. We have relied on high technology for a long time and have invested huge amounts of money in compressors, capacitors, relays and other refrigeration accessories. Stable quality, superior logistics and caring service are our advantages.
