LD 100+ HVAC Heated Diode Refrigerant Leak Detector LD-100+

LD 100+ HVAC Heated Diode Refrigerant Leak Detector LD-100+ photo-1
LD 100+ HVAC Heated Diode Refrigerant Leak Detector LD-100+ photo-2
LD 100+ HVAC Heated Diode Refrigerant Leak Detector LD-100+ photo-3
LD 100+ HVAC Heated Diode Refrigerant Leak Detector LD-100+ photo-4
LD 100+ HVAC Heated Diode Refrigerant Leak Detector LD-100+ photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Product Description

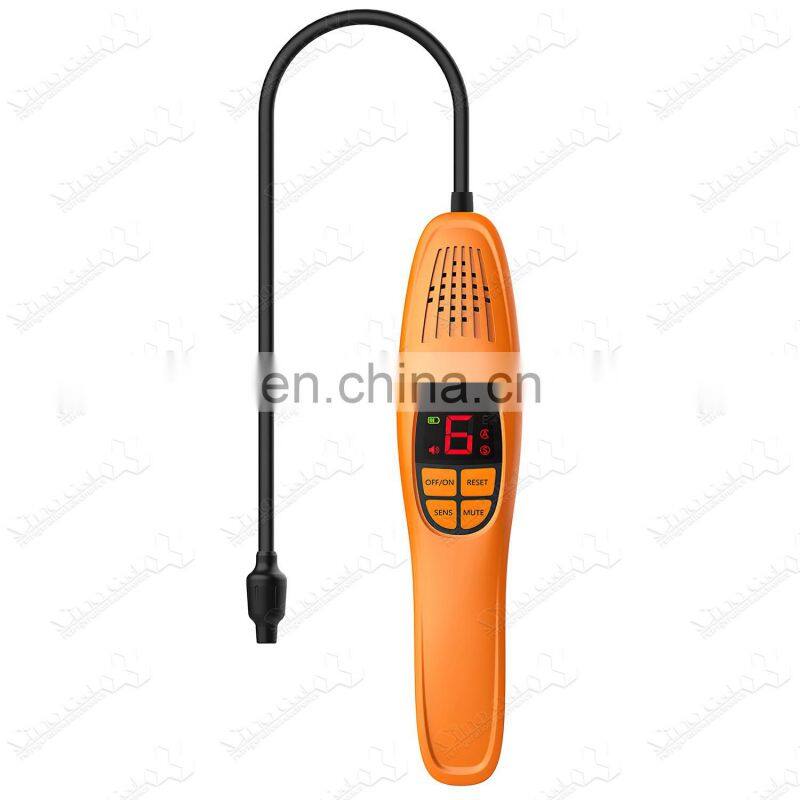

LD-100+ Heated Diode Refrigerant Leak Detector features high sensitivity, quick response, and long sensor lifetime.

In addition to the supreme performance and functional advantages, it offers a new suction structure design that increases the sensitivity while having the anti-water absorption function at the same time.

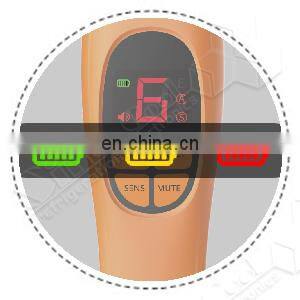

Sensitivity Indication

3 sensitivity levels: Red S means high sensitivity level. Orange S means medium level. Green S means low sensitivity

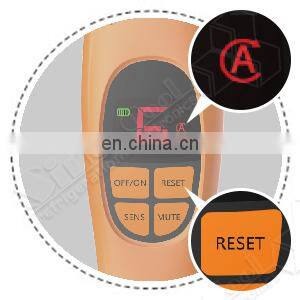

Automatic & Manual Reset

"A" icon means the automatic reset model starts. Do not need to press the RESET button to calibrate the detector.

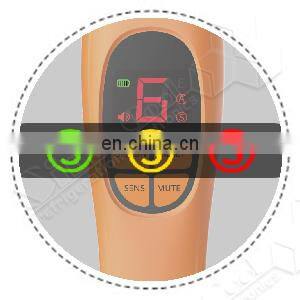

Battery Level Indication

When the battery is run off, the battery indication gets red and flashing. Orange means medium power. Green means high power
Sensor Type
Heated diode gas sensor
Applicable refrigerant
CFCs, HCFCs, HFCs, HCs and HFOs
Minimum detectable leakage
≤ 3g/yr
Sensor lifetime
≥1 year
Reaction time
≤3s
Reset
Automatic/manual
Warm-up time
30s
Probe length
16.5 in/420mm
Reset time
10s
Package size
12.3oz/ 350g
Working temperature range
0-50℃
Battery life
7 hours
Working Humidity Range
<80%RH (non-condensing)
Weight
17x9.6x27.5 in /430x245x700 mm
Auto-off Time:
30 min
Applicable to all halogen refrigerants, including but not limited to
* CFCs: Such as R12, R11, R500, R503
* HCFCs: Such as R22, R123, R124, R502
* HFCs: Such as R134a, R404a, R410a, R407C, R32
* HCs: Such as R600a, R290
* HFOs: Such as R1234YF

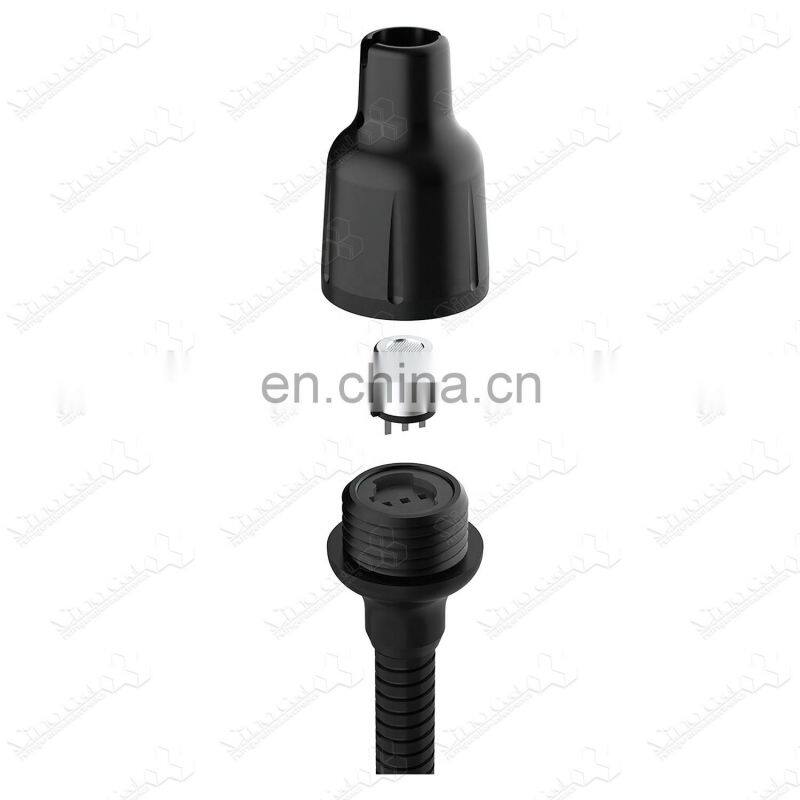

New Suction Structure Design
* Around 16.5-inch flexible probe
* Allows detection in difficult and hard-to-reach areas.

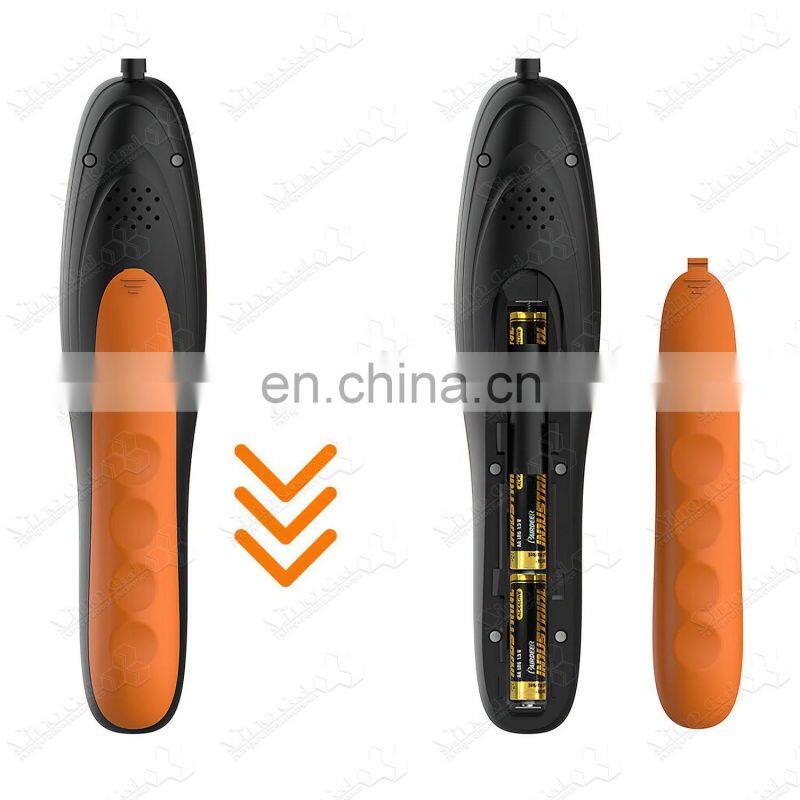

* The battery indication sign on the LED screen will help you check the battery level and change the battery in time.
Package Included
* 1 X LD-100+ leak detector ( excluding sensor)
* 1 X Heated diode gas sensor
* 3 X AA alkaline battery
* 1 X Packing box
* 1 X Performance report
