Shut Off Valve Forged Brass Joining Flareing Handle Refrigeration HVAC Air Conditioner Shut-Off Hand Valve
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1/4 , 5/16 , 3/8 Inch OD Pipes Copper Tube Refrigeration Rehydration Tool SUPCO BPV-31 Bullet Piercing Tap Valve Needle ValveNegotiableMOQ: 1 -
CT-341 CT-340 Needle Valve Can Bottle Tap Opener Valve 1/4 SAE Thread Adapter 1/2\" Interface Brass Piercing Line Tap ValveNegotiableMOQ: 1
-
HVAC CXCXC Refrigeration Copper Fittings Reducing Tee Copper Pipes FittingsNegotiableMOQ: 1
-
Piercing Valve Water Saddle Tapping Valve Self Tapping Self 1/4\" 3/8\" Compression ro Water Feeding Saddle Valve for Ice MakerNegotiableMOQ: 1
-
Copper Fitting Reducing Tee (CXCXC) for RefrigerationNegotiableMOQ: 1
Product Description

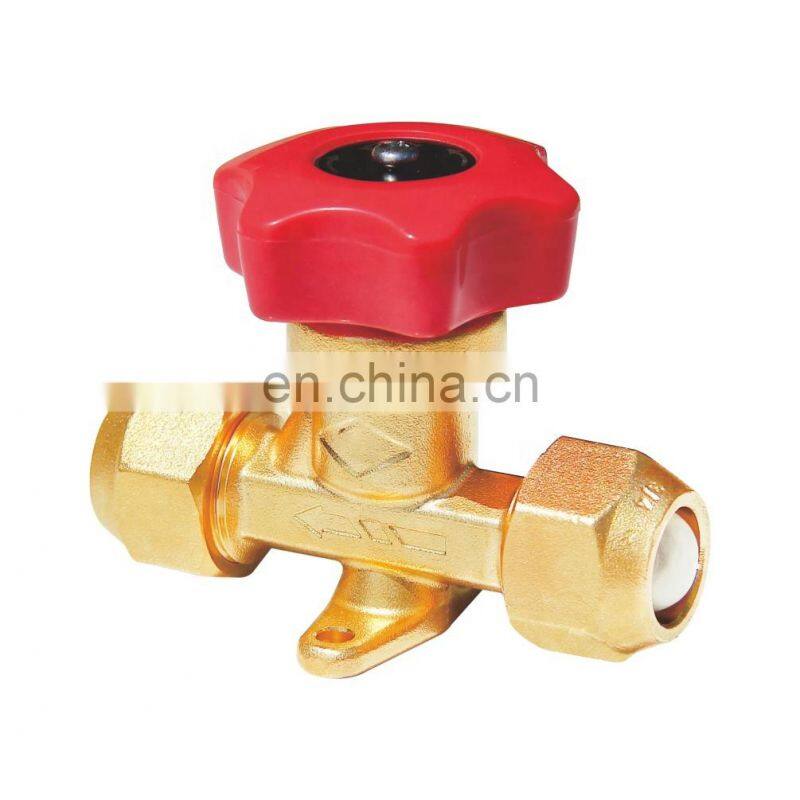

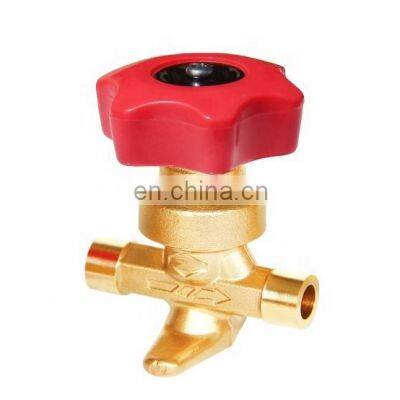

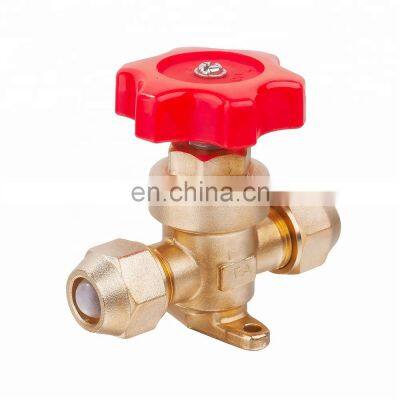

Hand Valve Shut Off valve Forged Brass joining Flareing Handle refrigeration HVAC Air conditioner Shut-Off
hand valve is a manually operated diaphragm stop valve for one-way flow control.
hand valve is mounted on the liquid, air suction and hot air piping in the refrigeration, cold storage and air
conditioner.
·Two types of connection are available for hand valve, that is, threaded connection (SAE) with threading size 1/4 SAE to
3/4 SAE and welded connection both ODF, structure hand valves have connection size 1/4” to 7/8”.
hand valves are equipped with mounting hole for the installation on the instrument panel.
hand valve is mounted on the liquid, air suction and hot air piping in the refrigeration, cold storage and air
conditioner.
·Two types of connection are available for hand valve, that is, threaded connection (SAE) with threading size 1/4 SAE to
3/4 SAE and welded connection both ODF, structure hand valves have connection size 1/4” to 7/8”.
hand valves are equipped with mounting hole for the installation on the instrument panel.

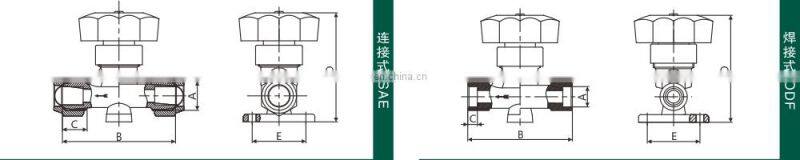

Model No. | Specification | Connection | Dimension(mm) | PCS/CTN | |||||||||
D | L | L1 | R | ||||||||||
SC-BL-02 | 1/4 | ODF | ø6.35 | 60 | 6 | 66 | 35 | 72 | |||||
SC-BH-02 | SAE | 7/16-20UNF | 58 | 13 | 72 | ||||||||
SC-BL-03 | 3/8 | ODF | ø9.52 | 52 | 5.5 | 72 | |||||||
SC-BH-03 | SAE | 5/8-18UNF | 60 | 13 | 72 | ||||||||
SC-BL-04 | 1/2 | ODF | ø12.7 | 80 | 6 | 84 | 41.3 | 36 | |||||
SC-BH-04 | SAE | 3/4-16UNF | 81 | 17 | 36 | ||||||||
SC-BL-05 | 5/8 | ODF | ø15.88 | 82 | 7.5 | 36 | |||||||
SC-BH-05 | SAE | 7/8-14UNF | 84 | 17 | 36 | ||||||||
SC-BL-06 | 3/4 | ODF | ø19.05 | 85 | 8.5 | 36 | |||||||
SC-BH-06 | SAE | 1-1/16-14UNF | 87 | 17.4 | 36 | ||||||||
SC-BL-06A | 3/4 | ODF | ø19.05 | 90 | 8.5 | 110 | 50 | 24 | |||||
SC-BH-06A | SAE | 1-1/16-14UNF | 105 | 24 | 24 | ||||||||
SC-BL-07 | 7/8 | ODF | ø22.3 | 83 | 12.4 | 84 | 41.3 | 24 | |||||
SC-BH-07 | SAE | 1-3/16-12UNF | 105 | 24 | 110 | 50 | 24 | ||||||
Our Company
SinoCool Refrigeration & Electronics Co.Ltd. is a large modern enterprise specializing in refrigeration accessories, we deal with the spare parts from 2007. Now we have 3000 kinds spare parts for Air conditioner, Refrigerator, Washing machine, Oven, Cold room; We have relied on high technology for a long time and have invested huge amounts of money in compressors, capacitors, relays and other refrigeration accessories. Stable quality, superior logistics and caring service are our advantages. Customized products and OEM service are all available.
