Forged Brass Joining Welding Solder Handle Refrigeration HVAC Air Conditioner Shut-Off Hand Valve Shut Off Valve
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Forged Brass Joining Flareing Handle Refrigeration HVAC Air Conditioner Shut-Off Hand Valve Shut Off ValveNegotiableMOQ: 1 -
Forged Brass Joining Welding Solder Handle Refrigeration HVAC Air Conditioner Shut-Off Hand Valve Shut-off ValveNegotiableMOQ: 1
-
Multi-Size Side Can Tap Valve for R12 R134A Refrigerant Bottle Can Tap OpenerNegotiableMOQ: 1
-
Side Can Tap Valve R134A A/C Refrigerant Refrigeration Gas 2-7/8\" Can Side Quick Tap Taper With 1/4\" Valve Good PriceNegotiableMOQ: 1
-
Mini Ball Valve Micro 304 316 Stainless Steel Brass 1/2 Pn25 Inch Floating Refrigeration Brass Ball ValveNegotiableMOQ: 1
Product Description

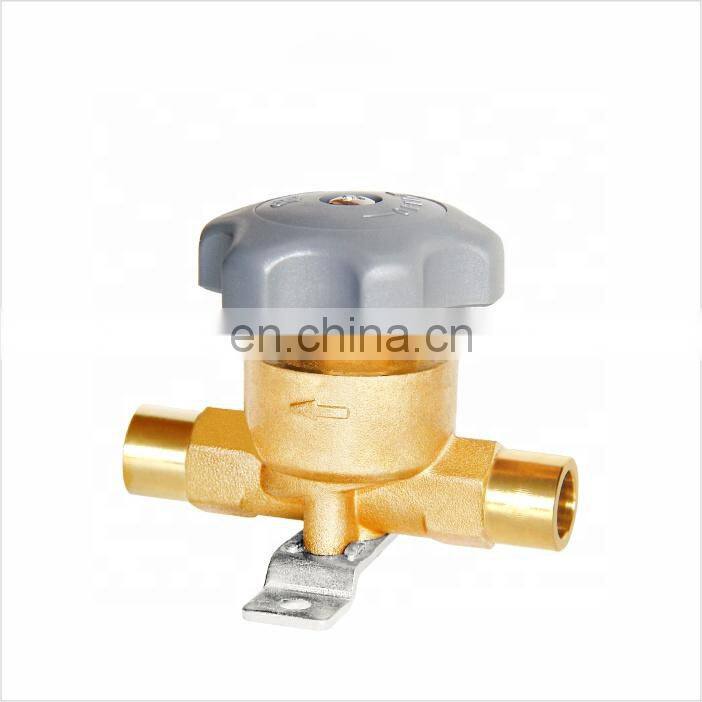

Hand Valve Shut Off valve Forged Brass joining welding Solder Handle refrigeration HVAC Air conditioner Shut-Off
hand valve is a manually operated diaphragm stop valve for one-way flow control.
hand valve is mounted on the liquid, air suction and hot air piping in the refrigeration, cold storage and air
conditioner.

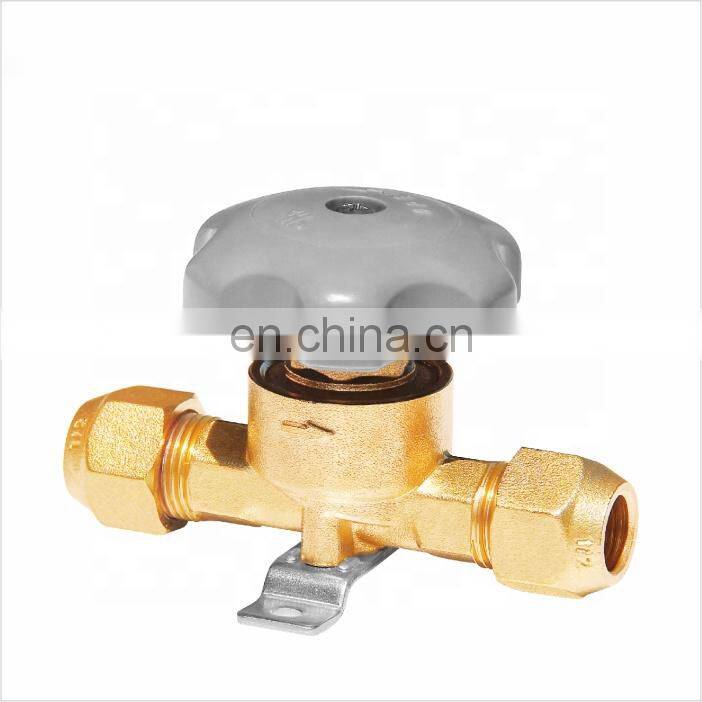

·Two types of connection are available for hand valve, that is, threaded connection (SAE) with threading size 1/4 SAE to
3/4 SAE and welded connection both ODF, structure hand valves have connection size 1/4” to 7/8”.
hand valves are equipped with mounting hole for the installation on the instrument panel.
hand valve is mounted on the liquid, air suction and hot air piping in the refrigeration, cold storage and air
conditioner.
·Two types of connection are available for hand valve, that is, threaded connection (SAE) with threading size 1/4 SAE to
3/4 SAE and welded connection both ODF, structure hand valves have connection size 1/4” to 7/8”.
hand valves are equipped with mounting hole for the installation on the instrument panel.
Our Company
Exhibition Photo
Favorable Comment
One stop OEM Supplier with a products range of 1500 kinds in the field of HVAC system and refrigeration parts.
Meanwhile , we also can provide OEM service and customized order service .
Order No. | Model No. | Specification | Connection | Dimension(mm) | PCS/CTN | ||||||||
D | L | L1 | R | ||||||||||
33015 | SF-BL-02 | 1/4 | ODF | ø6.35 | 60 | 6 | 66 | 35 | 72 | ||||
33016 | SF-BH-02 | SAE | 7/16-20UNF | 58 | 13 | 72 | |||||||
33017 | SF-BL-03 | 3/8 | ODF | ø9.52 | 52 | 5.5 | 72 | ||||||
33018 | SF-BH-03 | SAE | 5/8-18UNF | 60 | 13 | 72 | |||||||
33019 | SF-BL-04 | 1/2 | ODF | ø12.7 | 80 | 6 | 84 | 41.3 | 36 | ||||
33020 | SF-BH-04 | SAE | 3/4-16UNF | 81 | 17 | 36 | |||||||
33021 | SF-BL-05 | 5/8 | ODF | ø15.88 | 82 | 7.5 | 36 | ||||||
33022 | SF-BH-05 | SAE | 7/8-14UNF | 84 | 17 | 36 | |||||||
33023 | SF-BL-06 | 3/4 | ODF | ø19.05 | 85 | 8.5 | 36 | ||||||
33024 | SF-BH-06 | SAE | 1-1/16-14UNF | 87 | 17.4 | 36 | |||||||
33025 | SF-BL-06A | 3/4 | ODF | ø19.05 | 90 | 8.5 | 110 | 50 | 24 | ||||
33026 | SF-BH-06A | SAE | 1-1/16-14UNF | 105 | 24 | 24 | |||||||
33027 | SF-BH-07 | 7/8 | ODF | ø22.3 | 83 | 12.4 | 84 | 41.3 | 24 | ||||
33028 | SF-BL-07 | SAE | 1-3/16-12UNF | 105 | 24 | 110 | 50 | 24 | |||||
