Universal Inverter AC Board For Air Conditioning System QD80C

Jingjiang Fuji Technology Co., Ltd.

4Yrs

Universal Inverter AC Board For Air Conditioning System QD80C thumbnail-1

Universal Inverter AC Board For Air Conditioning System QD80C thumbnail-2

Universal Inverter AC Board For Air Conditioning System QD80C thumbnail-3

Universal Inverter AC Board For Air Conditioning System QD80C thumbnail-4

Universal Inverter AC Board For Air Conditioning System QD80C thumbnail-5

Universal Inverter AC Board For Air Conditioning System QD80C photo-1

Universal Inverter AC Board For Air Conditioning System QD80C photo-2

Universal Inverter AC Board For Air Conditioning System QD80C photo-3

Universal Inverter AC Board For Air Conditioning System QD80C photo-4

Universal Inverter AC Board For Air Conditioning System QD80C photo-5

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Business Type:

Manufacturer

Year Established:

2018

Factory Size:

Below 1,000 square meters

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Product Description

Universal Inverter AC Board For Air Conditioning System QD80C

Product Description:
Universal DC/AC inverter control system for 12000BTU split air conditioner
QD80C is the lastest universal control system for both DC & AC inverter split air conditioners.

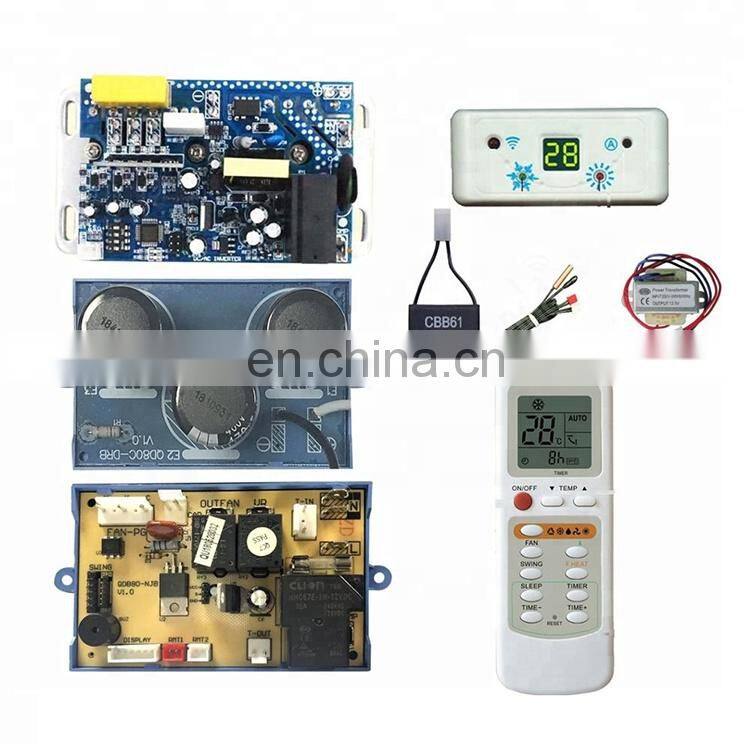

● Part of control system: universal indoor board,remote control,universal outdoor inverter board,electrolytic capacitor board.
● To identify the working principle of Aircon（AC inverter or DC inverter）before installation.
● With 3 minutes'delay for protection,the compressor will restart after 3 minutes for power off or defrost.

Product Name			Universal AC control system
Model No.			QD80C
Maximum Service Power			12000BTU
Maximum Input Power			AC240V
Minimum Input Power			AC180V
Maximum Output Current			10A
Maximum Output Frequency			100HZ

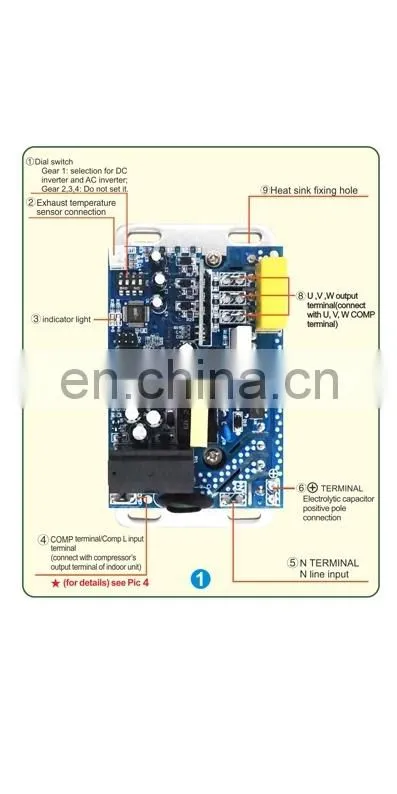

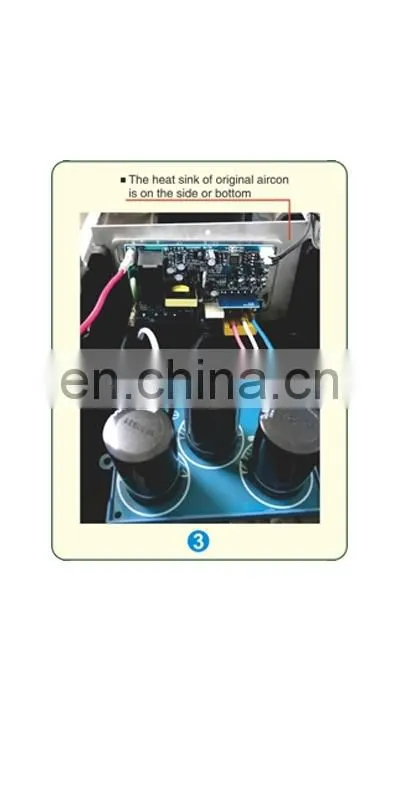

Outdoor Unit Instruction

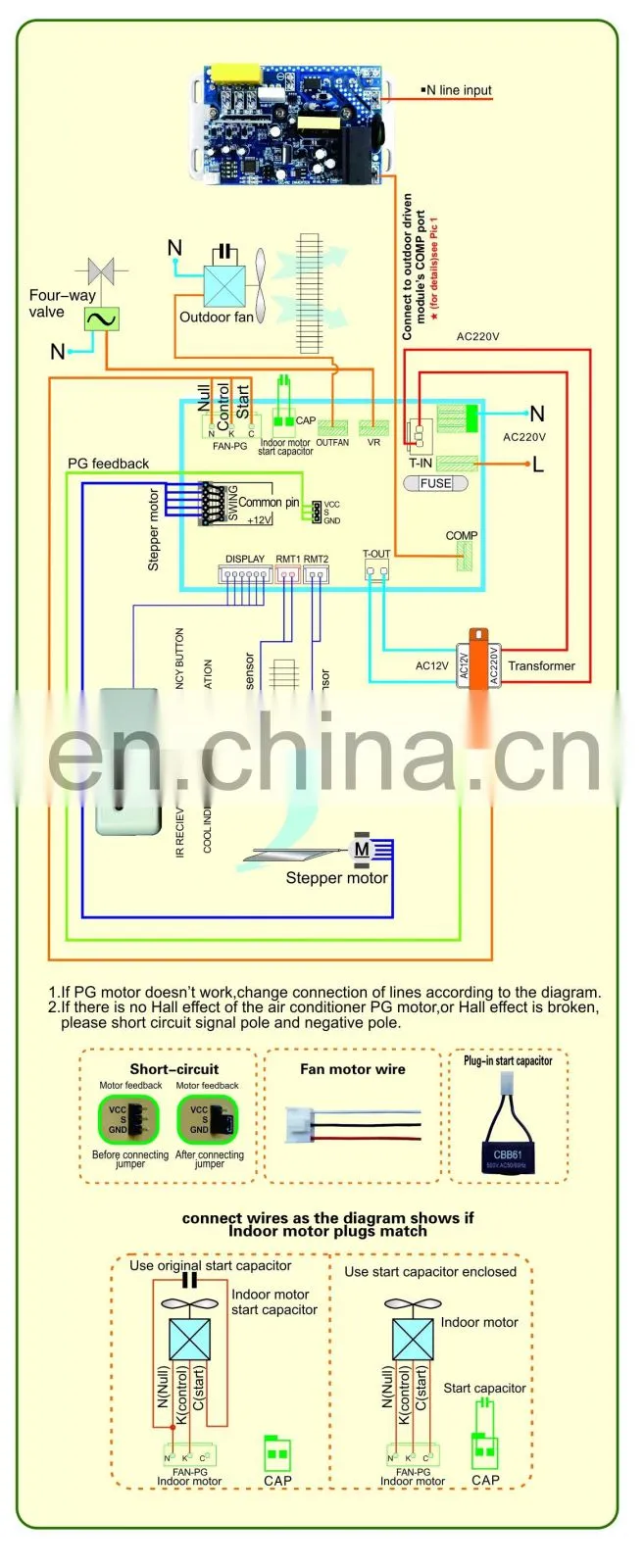

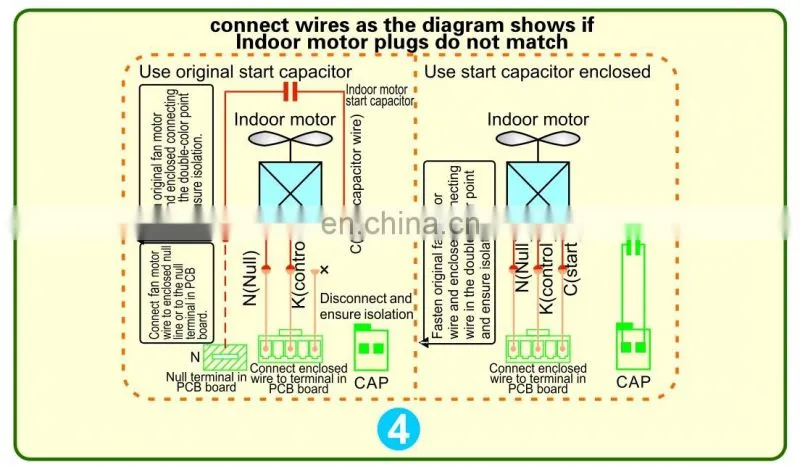

Indoor Unit Instruction

Related product

Model NO.	QD80C	QD80CU	QD82	QD82U	QD81B
Type of Aircon	Split Aircon	Split Aircon	Split Aircon	Split Aircon	Cabinet Aircon
Max BTU	12000BTU	24000BTU	12000BTU	24000BTU	24000BTU
Indoor Motor	PG Motor	PG Motor	DC Fan Motor	DC Fan Motor	Three Fan Speed Motor
Outdoor Fan Motor	AC	AC	DC/AC	DC/AC	AC
Inverter Compressor	DC/AC	DC/AC	DC	DC	DC/AC

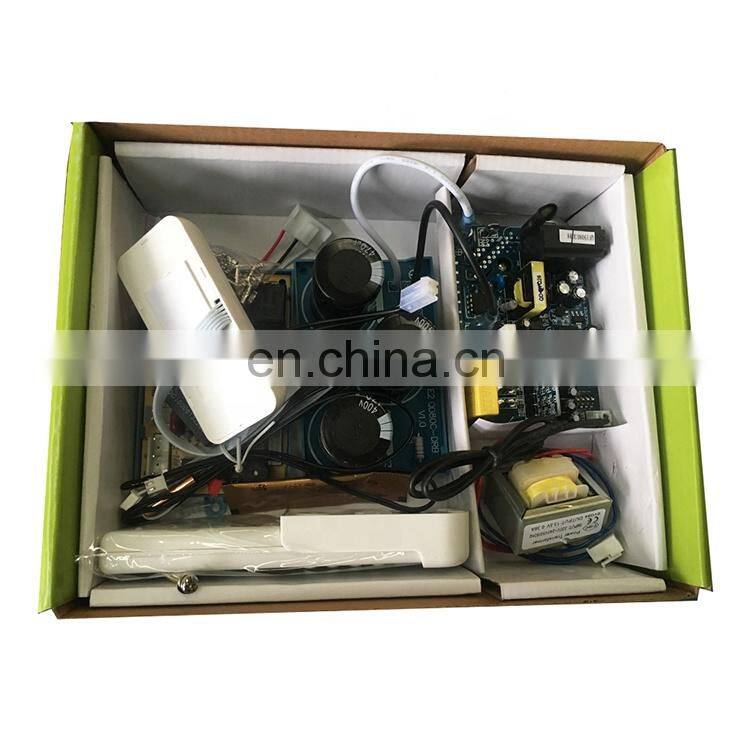

Packing & Delivery

Our Company

SinoCool Refrigeration & Electronics Co.Ltd. is a large modern enterprise specializing in refrigeration accessories, we deal with the spare parts more than 10 years. Now have 1500kinds spare parts for Air conditioner , Refrigerator, Washing machine, Oven, Cold room;. We have relied on high technology for a long time and have invested huge amounts of money in compressors, capacitors, relays and other refrigeration accessories. Stable quality, superior logistics and caring service are our advantages.
