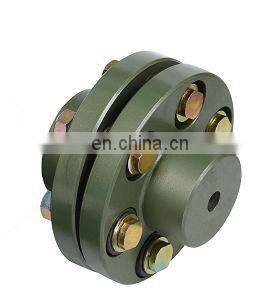

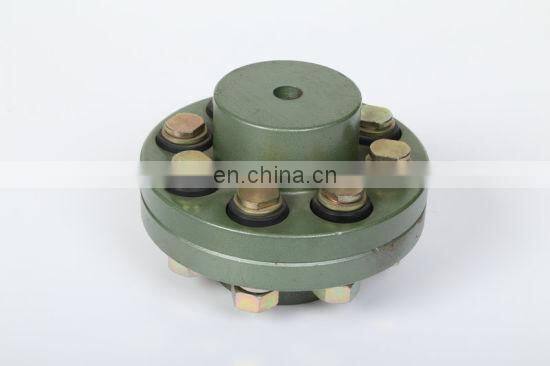

Fcl Flange Coupling/ Flexible Pin And Bush Coupling
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Fcl Flexible Pin & Bush Coupling
-
Precision Aluminum Clamping Shaft Collars Double Split Shaft Collar
-
Mini Shaft Collar Alu Clamp Din 705 16mm
-
Stainless Steel 16mm Collars Set Screw 6mm Split Clamp Shaft Collar
-
China Cnc Machining Service Stainless Carbon Steel Set Screw Split Locking Shaft Clamp Collar
-
High Quality Black Or Zinc Galvanized Set Screw And Clamp 10mm Shaft Collar And Single Split Shaft Collar
Product Description
Type | Max torque N.M | Max speed r/min | D | D1 | d1 | L | C | n-M | Weight kg |
FCL90 | 4 | 4000 | 90 | 35.5 | 11 | 28 | 3 | 4-M8*50 | 1.7 |
FCL100 | 10 | 4000 | 100 | 40 | 11 | 35.5 | 3 | 4-M10*56 | 2.3 |
FCL112 | 16 | 4000 | 112 | 45 | 13 | 40 | 3 | 4-M10*56 | 2.8 |
FCL125 | 25 | 4000 | 125 | 50 | 13 | 45 | 3 | 4-M12*64 | 4 |
FCL140 | 50 | 4000 | 140 | 63 | 13 | 50 | 3 | 6-M12*64 | 5.4 |
FCL160 | 110 | 4000 | 160 | 80 | 15 | 56 | 3 | 8-M12*64 | 8 |
FCL180 | 157 | 3500 | 180 | 90 | 15 | 63 | 3 | 8-M12*64 | 10.5 |
FCL200 | 245 | 3200 | 200 | 100 | 21 | 71 | 4 | 8-M20*85 | 16.2 |
FCL224 | 392 | 2850 | 224 | 112 | 21 | 80 | 4 | 8-M20*85 | 21.3 |
FCL250 | 618 | 2550 | 250 | 125 | 25 | 902 | 4 | 8-M24*110 | 31.6 |
FCL280 | 980 | 2300 | 280 | 140 | 34 | 100 | 4 | 8-M24*116 | 44 |
FCL315 | 1568 | 2050 | 315 | 160 | 41 | 112 | 4 | 10-M24*116 | 57.7 |
FCL355 | 2450 | 1800 | 355 | 180 | 60 | 125 | 5 | 10-M30*150 | 89.5 |
FCL400 | 3920 | 1600 | 400 | 200 | 60 | 125 | 5 | 10-M30*150 | 113 |
FCL450 | 6174 | 1400 | 450 | 224 | 65 | 140 | 5 | 12-M30*150 | 145 |
FCL560 | 9800 | 1150 | 560 | 250 | 85 | 160 | 5 | 14-M30*150 | 229 |
FCL630 | 15680 | 1000 | 630 | 280 | 95 | 180 | 5 | 18-M30*150 | 296 |
Company Profile
Jingjiang Fuji Technology Co., Ltd.
Our company offers variety of products which can meet your multifarious demands. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.
