Home > Products > flexible coupling > Jeremywell 1" Bore Single Split Shaft Collar Black Oxide Set Screw Style

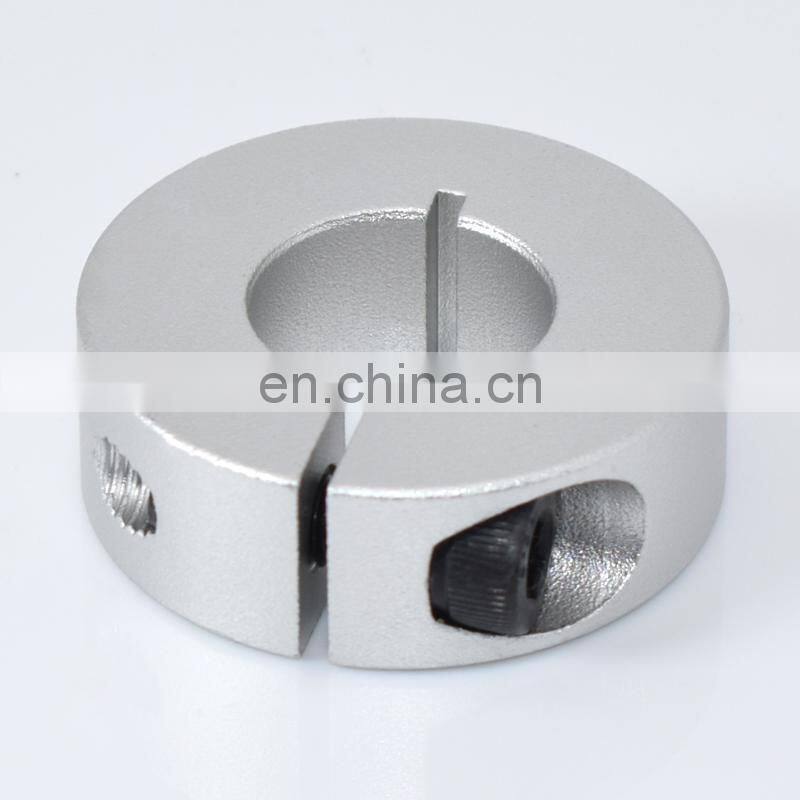

Jeremywell 1" Bore Single Split Shaft Collar Black Oxide Set Screw Style
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
DNV Fityle Solid Drill Bit Shaft Depth Stop Collar, 20mm to 85mm Split Stop Collar
-
Hot sale close-coupled membrane (disc) couplings
-
Setscrew Clamp Coulings Flexible Couplings Servo Motor Coupling Shaft Coupling
-
Power Transmission Curved Shaft Jaw Coupling For Light Industry
-
Curved Jaw Coupling Flexible Couplings For Encoder Coupling
-
Flexible Mechanical Jaw Coupling Aluminum Alloy Jaw Coupling For Connector Flexible Couplings
Product Description
Product Description

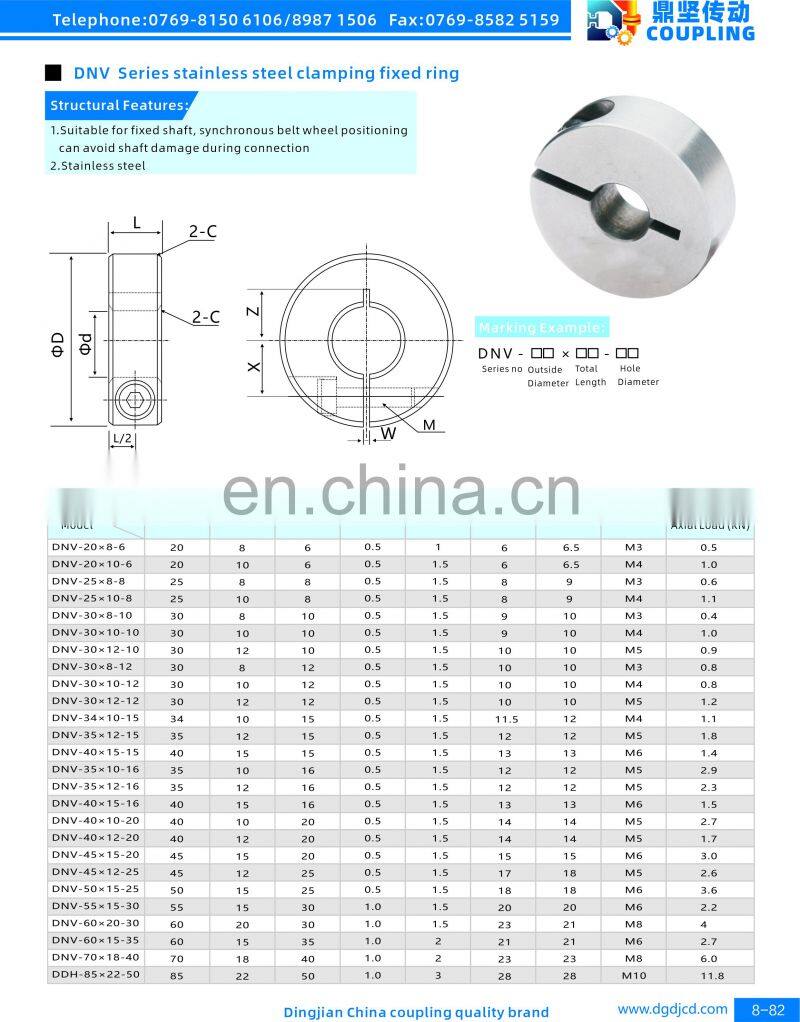

Specification
model | ΦD | L | Φd | C | W | X | Z | M | Max Axial load ( KN ) |
DNV-16×8-3 | 16 | 8 | 3 | 0.5 | 1 | 4.5 | 3 | M3 | 0.1 |
DNV-18×8-4 | 18 | 8 | 4 | 0.5 | 1 | 5 | 3.5 | M3 | 0.2 |
DNV-20×8-5 | 20 | 8 | 5 | 0.5 | 1 | 5.5 | 5 | M3 | 0.2 |
DNV-20×8-6 | 20 | 8 | 6 | 0.5 | 1 | 6 | 6 | M3 | 0.3 |
DNV-25×8-8 | 25 | 8 | 8 | 0.5 | 1.5 | 7 | 7 | M3 | 0.4 |
DNV-25×10-8 | 25 | 10 | 8 | 0.5 | 1.5 | 7 | 7 | M3 | 0.5 |
DNV-30×10-10 | 30 | 10 | 10 | 1 | 1.5 | 9 | 8 | M4 | 0.5 |
DNV-30×10-12 | 30 | 10 | 12 | 1 | 1.5 | 10 | 9 | M4 | 0.4 |
DNV-30×10-13 | 30 | 10 | 13 | 1 | 1.5 | 10 | 10 | M4 | 0.5 |
DNV-34×10-15 | 34 | 10 | 15 | 1 | 1.5 | 11.5 | 10 | M4 | 0.5 |
DNV-35×10-16 | 35 | 10 | 16 | 1 | 1.5 | 12 | 11 | M5 | 1.4 |
DNV-35×12-16 | 35 | 12 | 16 | 1 | 1.5 | 12 | 11 | M5 | 1.1 |
DNV-40×10-20 | 40 | 10 | 20 | 1 | 1.5 | 14 | 13 | M5 | 0.7 |
DNV-40×12-20 | 40 | 12 | 20 | 1 | 1.5 | 14 | 13 | M5 | 0.8 |
DNV-40×15-20 | 40 | 15 | 20 | 1 | 1.5 | 14 | 13 | M5 | 1.1 |
DNV-45×12-25 | 45 | 12 | 25 | 1 | 1.5 | 17 | 16 | M5 | 1.6 |
DNV-45×15-25 | 45 | 15 | 25 | 1 | 1.5 | 17 | 16 | M5 | 1.6 |
DNV-55×15-30 | 55 | 15 | 30 | 1 | 1.5 | 20 | 18 | M6 | 1.1 |
DNV-60×15-35 | 60 | 15 | 35 | 1 | 2 | 23 | 21 | M6 | 1.3 |
DNV-70×18-40 | 70 | 18 | 40 | 1 | 2 | 26 | 23 | M8 | 3 |
DNV-85×22-50 | 85 | 22 | 50 | 1.5 | 3 | 32 | 28 | M10 | 5.1 |
