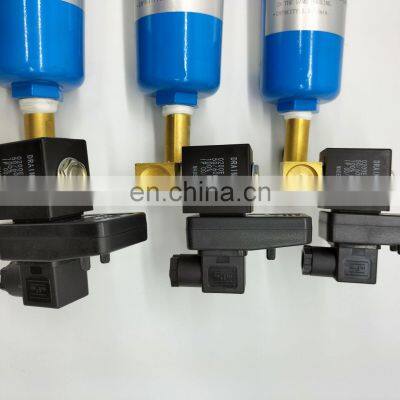

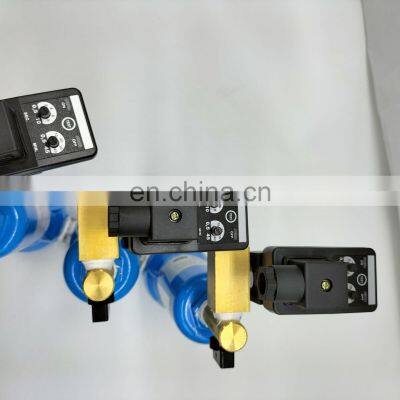

Auto Drain Solenoid Valve
Two-position two-way solenoid valve | ||

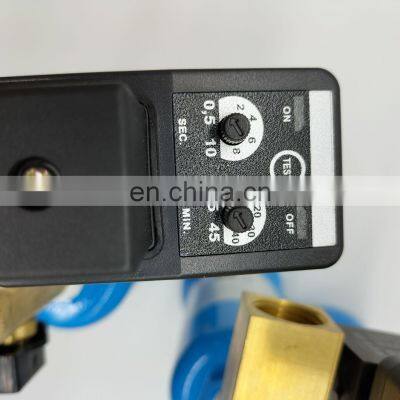

Interval Time | 0.5-45mins | |
Discharge Time | 0.5-10 seconds | |
Manual Test Switch | yes | |
Supply Voltage | 24V--~240V±10% 50/60HZ | |
Current Consumption | Max. 4mA | |
Oprating Temperature | -40℃~5040℃ | |
Environmental protection | IP 65 | |
Case Material | ABS Plastic FR Grade | |
Indicators | Yellow, valve open | |
Yellow, valve closed | ||
Valve | ||
Type | 2/2-way direct acting valve | |
In/Out Ports | 1/4",1/2" female | |
Max. working pressure | 16bar | |
Operating Temperature | 2℃/55℃ ambient | |
Media Temperature | Max.90 ℃ | |
Valve body | Forged Brass | |
Insulation | Thermal Group H Grade (180 ℃) | |
Environmental protection | IP 65 | |
Supply Voltage | 24V--~240V ±10% 50/60HZ | |
Mounting | in any position | |
Main Features
-This compressed air condensate automatic drainer is significantly different from traditional mechanical automatic drainer, which is belong to continuous drops drain.
-Shell is made of casting aluminum alloy, with plastic powder coating surface, resistant to corrosion.
-Automatic drainer is extremely reliable in operation, no electricity needed, no noise, no loss of compressed air.
-Drainer has big drainage outlet that is not easily blocked; it is a new generation and great choice of compressed air equipment drainer.
-This is a quite stable drainer which has great performance and low failure rate.
micro heat adsorption air dryer
Compressed air tank

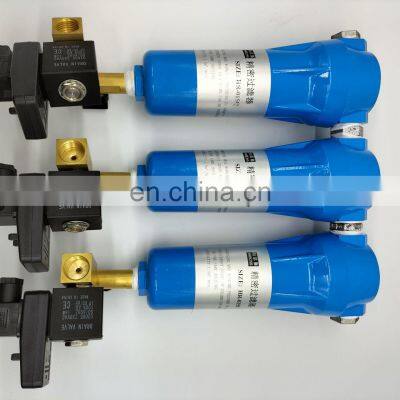

Compressed air filter
Air filter
Auto drain Valve
float ball type drain valve
