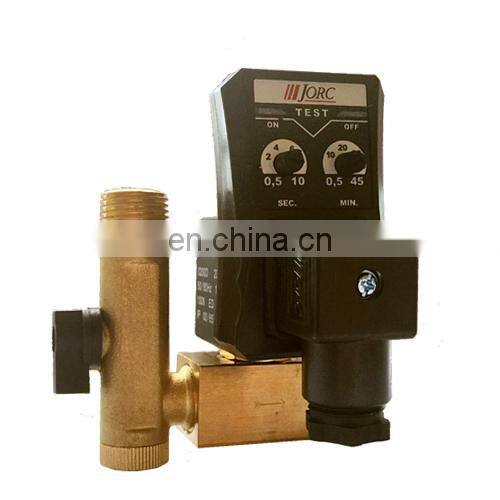

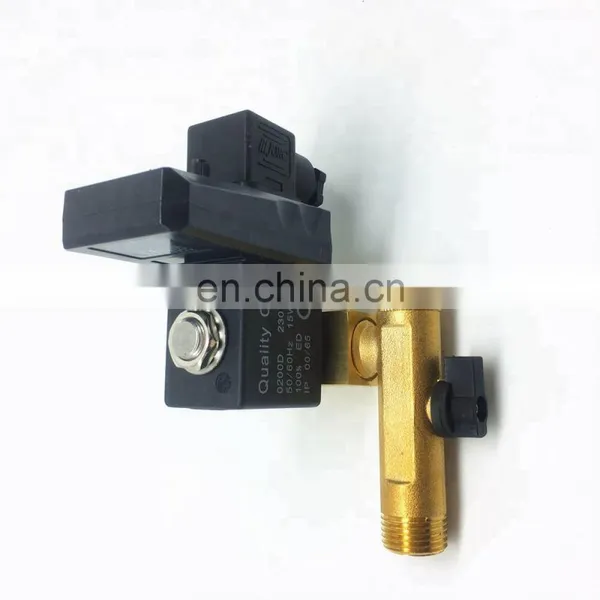

Hot sale 1/2" Jorc Auto Drain Solenoid Valve with Timer
- T/T Credit Card
You May Like
-
Low Pressure Gauge 50mm 0/15 PSI 0/1 Bar
-
Popular Manometer Pressure Gauge used in Industry
-
0-100 PSI Water/Oil/Steam/Compressed Air Pressure Gauge
-
JORC 1/2 AC230V Multifunction Automatic Electronic Timer with Auto Drain valve for compressor
-
Various models Shockproof type stainless steel Water/Oil/Steam/Compressed Air Support customization differential Pressure Gauge
-
Zero Gas Loss Condensate Auto Drain Valve for Compressed Air System
Product Description
Auto Drain Solenoid Valve
·What is the Drain Valves?
Drain valve to simulate an electronic circuit solid state electronic timer and solenoid valve to match the timing of realization of the compressed air system condensate automatic discharge. High voltage electron drain valve widely used in filters, separators, dryers, gas tank, drip legs and other compressed air system components, discharge time and interval can be adjusted according to different needs.
·Characters
Imported IC chip, High quality in low price.
A model is suitable for all applications, easy installation, fully automatic and maintenance free.
Interval time and discharge time is adjustable and have a test button.
Pressure 16 Bar, various pressure and port can be choose.
Full stain steel valve, anti-explosion valve can be choose.
CE Certificate, level of protection is IP65, insulation grade is H.
Viton seal.
Equipped with 16 Bar ball filter, fission with drain valve, “L” construction.
·Work Conditions
Steps as following:
1)Close isolation valves, press test button, to ensure that electronic drain valve has been isolated from air compressor system(under the zero pressure).
2)Cut off the drain valve power supply.
3)Remove the coil(Before remove the coil,must cut off the valve first,or valve body will burn out after electrify coil), separate the solenoid valve, remove the valve core and the spring, use water to clean it then installed again, the fault can be ruled out.

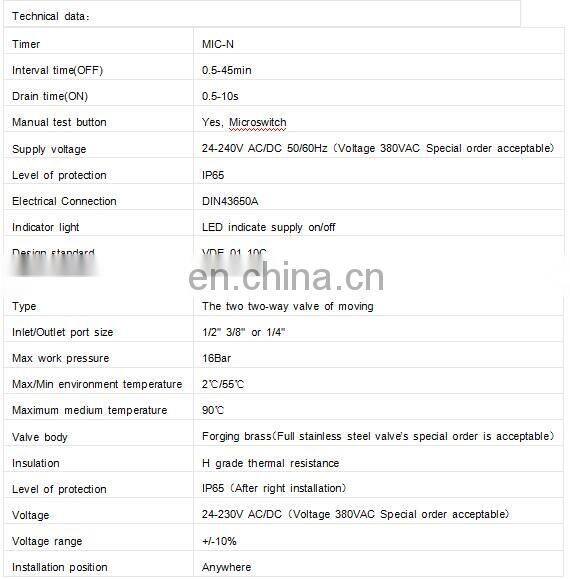

Product Parameters

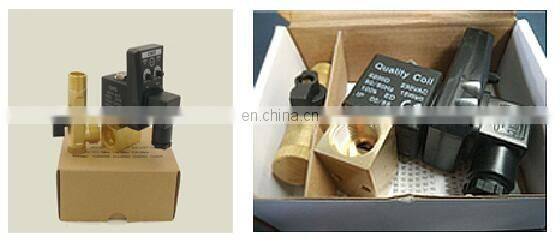

Product packing
Why choose us?
1) The Quality Of Our Products
Our Drain Valves are all 100% inspected, and with standard production process.
2) Price
We can provide our high quality products with reasonable price.
3) OEM services
In the past years, we have many OEM orders from very famous company .
4) Delivery
We can provides intime delivery. Some stocked models can be instant delivered.
5) Service
We provide best after-sale service all the time, for our goal is a long trade cooperation term.
6) Reputation
We have already gaining the best reputation and response from our customers.
We may accept consumers order with special requirement for instrument and meter!
